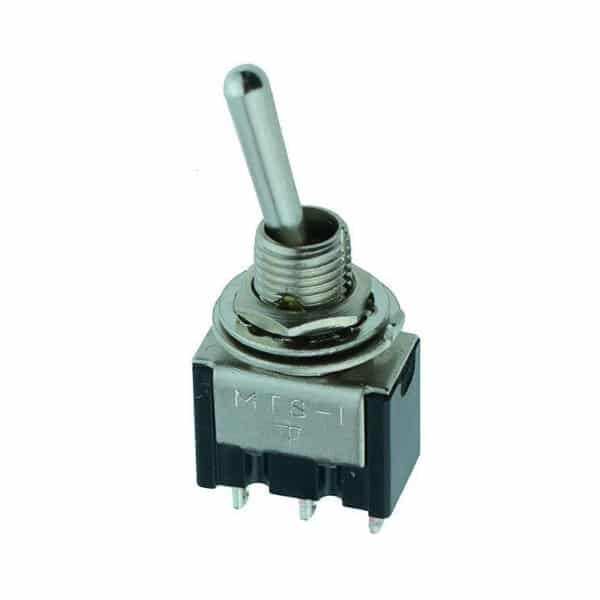

On-On Mini Momentary Toggle Switch SPDT
On-On Mini Momentary Toggle Switch SPDT
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£2.89
Regular price
Sale price
£2.89
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 14-143
On-(On) momentary miniature size toggle switch featuring solder SPDT contacts, suitable for a wide range of applications requiring a small packaged reliable switch.
Specifications
| Type | Toggle |
| Action | Momentary (non-locking) |
| Pole Configuration | SPDT |
| Positions | On (Non-Locking) On (Locking) |
| illumination | None |
| Max Voltage & Current | 3A250VAC, 6A125VAC |
| Contact Resistance | 50mΩ Max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Strength | 1500VAC 1 minute |
| Panel Cut-Out Size | 6mm |
| Cycle Life | 10,000+Cycles |
| Dimensions | 33mm x 7.9mm x 13mm (Height x Width x Length) |
| Operating Temperature | -25°C to +85°C |
| Number of Terminals | 3 |
| Terminal Type | Solder |
