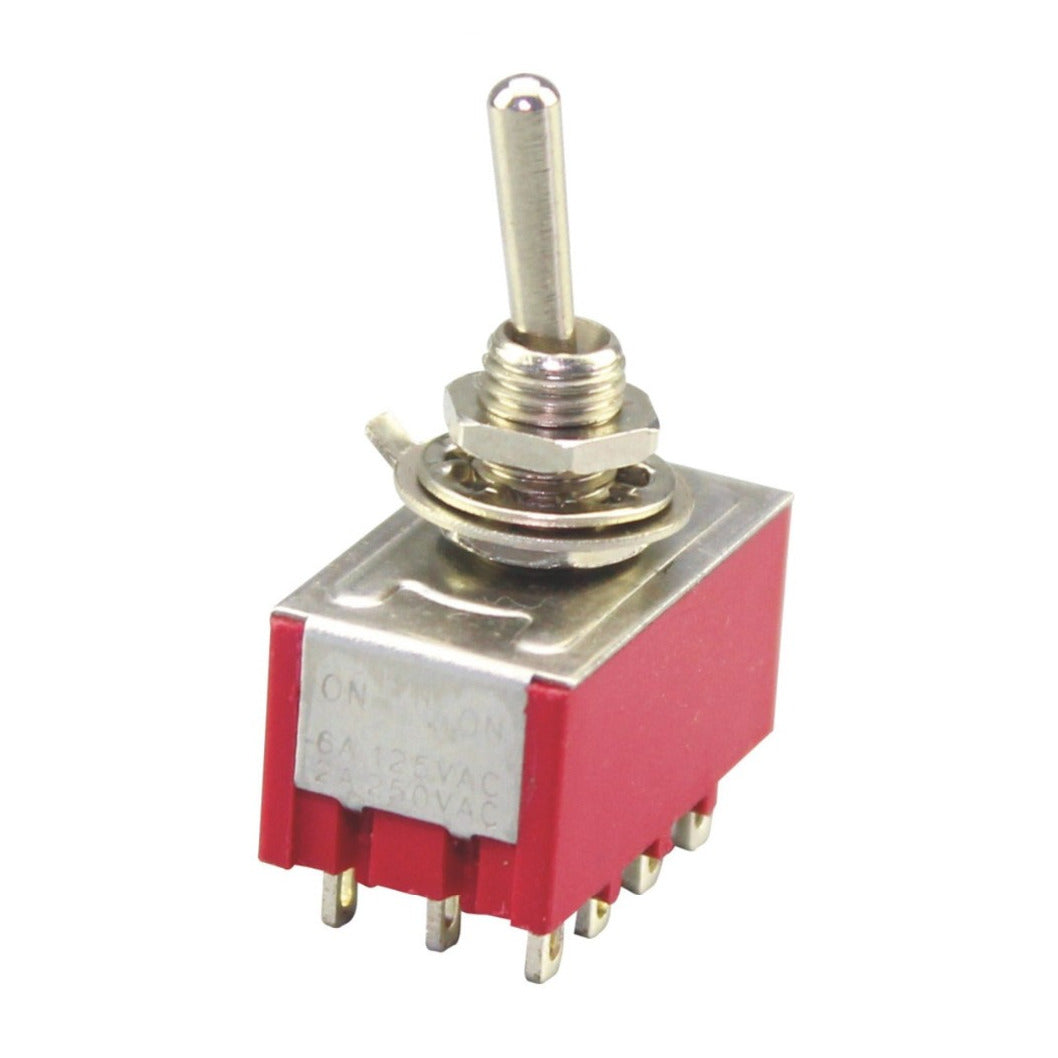

On-On Latching Mini Toggle Switch 4PDT
On-On Latching Mini Toggle Switch 4PDT
Regular price
£4.99
Regular price
Sale price
£4.99
Delivery calculated at checkout.
Order Code: 02-275
Quantity
We have 1 in stock in Southampton
Couldn't load pickup availability
Product Description
four-pole double-throw (4PDT) miniature Toggle Switch with solder lug termination, ON-NONE-ON function, 10.41-mm high chrome plated brass actuator, 8.89-mm high keyway (THD standard) nickel plated brass bushing. Silver plated contact, stainless steel housing and tin plated brass switch support.
Specifications
| Type | Toggle |
| Action | Latching (locking) |
| Pole Configuration | 4PDT |
| Positions | On (Locking) On (Locking) |
| illumination | None |
| Max Voltage & Current | 250VAC 2A 120VAC or 28VDC 5A |
| Insulation Resistance | 1,000MΩ min. |
| Dielectric Strength | 1,000V rms min. @ sea level |
| Panel Cut-Out Size | 6.35mm |
| Cycle Life | 40,000+ Cycles |
| Construction | Case : Diallyl phthalate (DAP), Actuator : Brass, chrome plated Bushing : Brass, nickel plated. Housing : Stainless steel Switch Support : Brass, tin plated Contact Terminals : Brass, Silver or gold plated |
| Operating Temperature | -30 to +85°C |
| Number of Terminals | 12 |
| Terminal Type | Solder |
