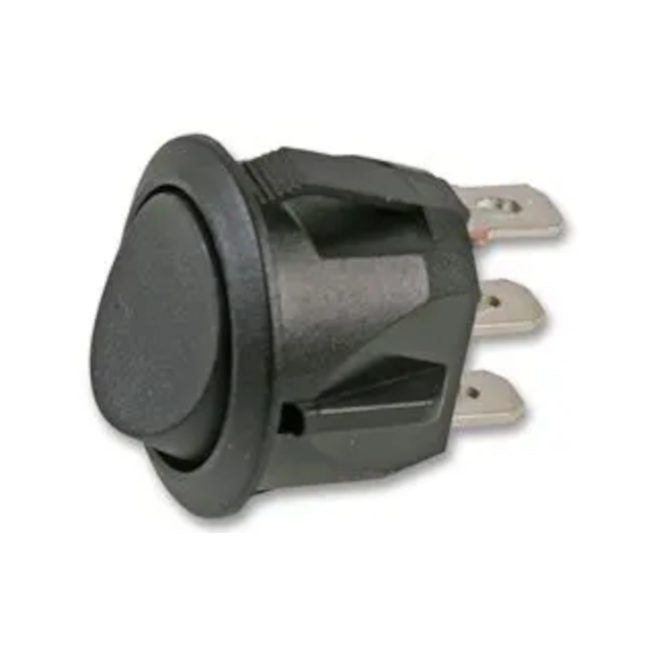

On-On Latching Round Rocker Switch SPDT, Black
On-On Latching Round Rocker Switch SPDT, Black
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£2.49
Regular price
Sale price
£2.49
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 02-288
Rated 250V 10 Amp. Latching SPDT Switch
Specifications
| Type | Rocker |
| Action | Latching (locking) |
| Pole Configuration | SPDT |
| Positions | On (Locking) On (Locking) |
| illumination | None |
| Max Voltage & Current | 250VAC 10A |
| Operating Force | 400g ±100g |
| Actuating Force | 3 ~ 6N |
| Contact Resistance | < 20mΩ |
| Insulation Resistance | > 1,000MΩ |
| Dielectric Strength | > 1,500V/minute |
| Panel Cut-Out Size | 20.2mm (0.8 – 3mm Thickness) |
| Cycle Life | 10,000+ Cycles |
| Construction | Housing : Polyamide 6.6, Black, Rocker : Polyamide 6.6 & Polycarbonate, Black, Contacts : Silver Alloy, Terminal : Copper or Brass, Silver Plated, Spring : SWC (Chromated Steel Wire), Movable Arm : Brass, Silver Plated |
| Operating Temperature | -20°C to +85°C |
| Number of Terminals | 3 |
| Terminal Type | 4.8mm |
