On-On 2 Position 16mm Square Latching Key Switch NO/NC 3A 250V

On-On 2 Position 16mm Square Latching Key Switch NO/NC 3A 250V

£4.64
£3.21 £4.64
Sale Sold out

Order Code: 489570

Delivery calculated at checkout.
Available Online Only

19 in stock
View full details

Product Description

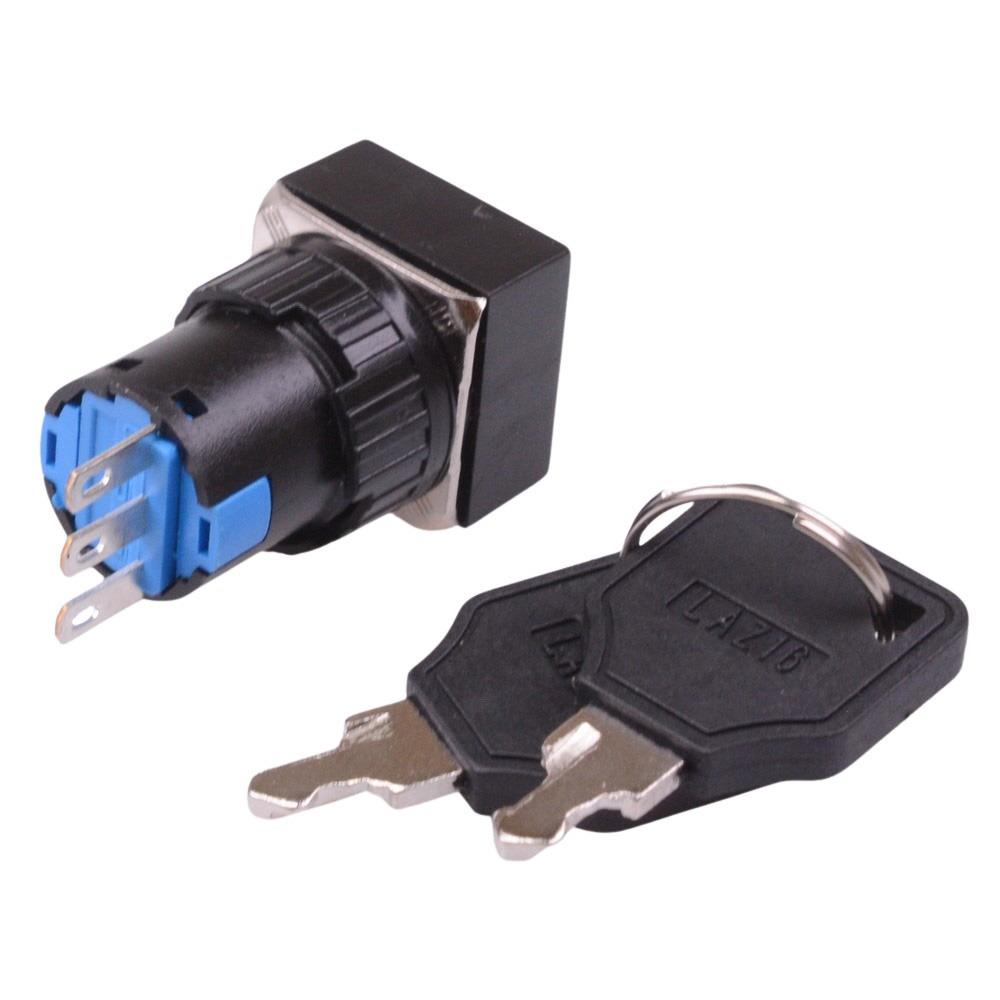

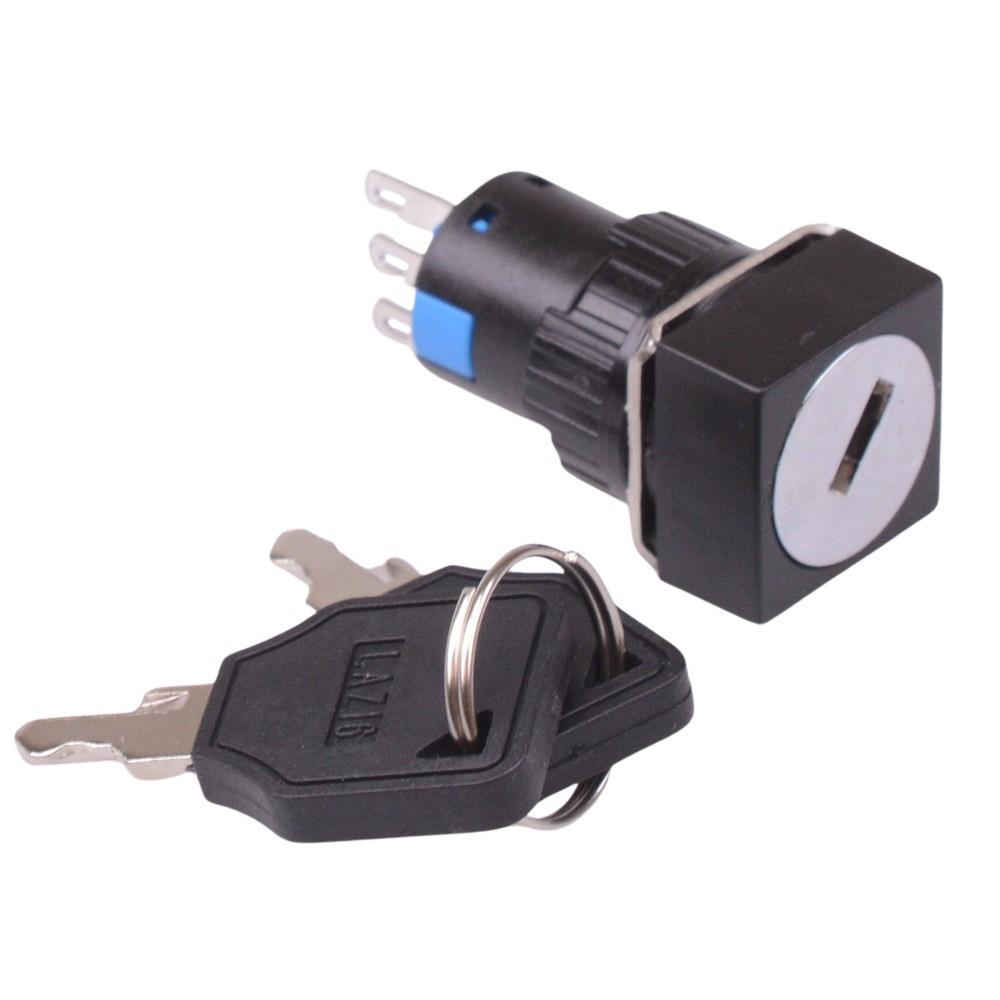

2 position square latching industrial key switch featuring SPDT contacts, suitable for 16.2mm panel cut-outs. The switch is designed for a wide range of applications including control panels, automation, factories and general purpose uses.

  • Latching operation
  • 90° 2 positions
  • Key removable in both positions
  • NO/NC SPDT contacts
  • Contact rating: 3A 250V
  • Panel cut-out: 16.2mm
  • Panel thickness: 0.5-6mm
  • 2.8x0.5mm solder/quick-connect terminals
  • Dimensions: 39 x 17 x 17mm (height x width x length)
