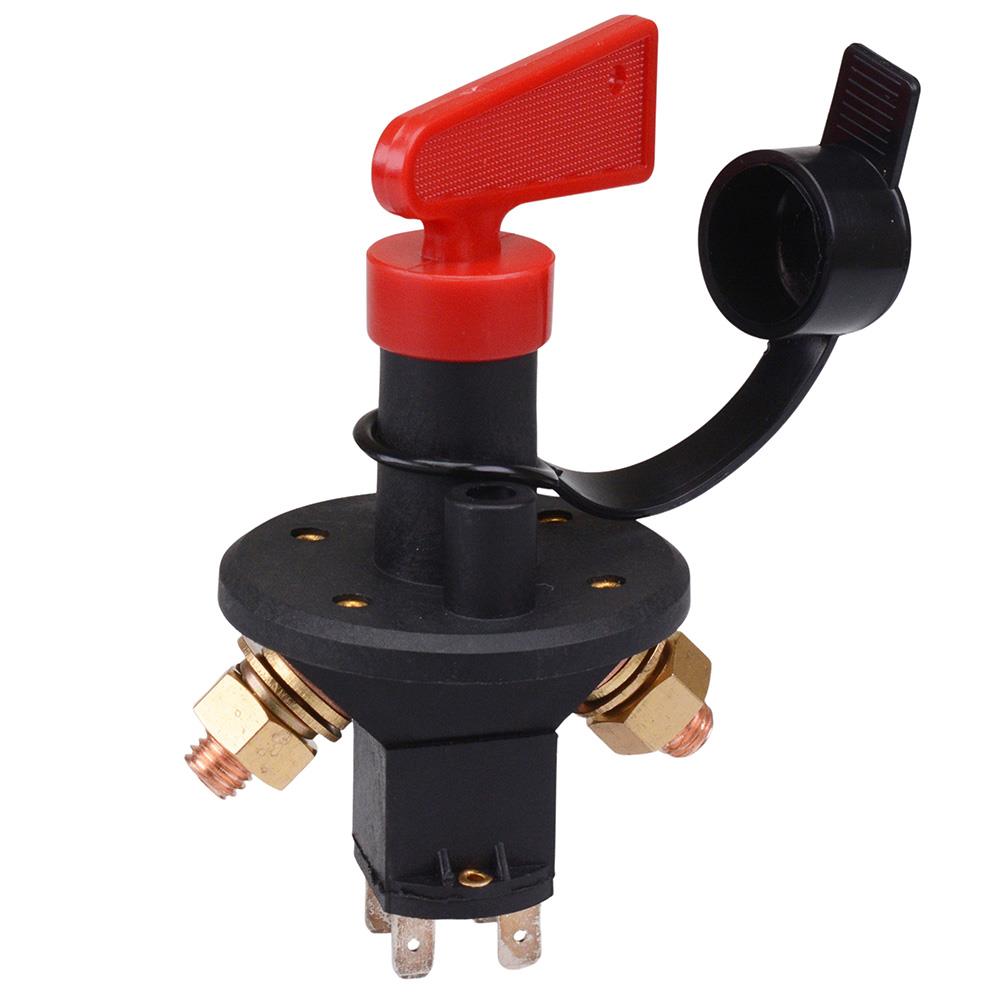

On-Off Rotary Battery Isolator Selector Switch 200A 12-24V

Battery isolator switch featuring a plastic construction and rotary operated actuator. The switch features a removable handle and includes a dust cover. The isolator also incorporates a DPST switch which is operated by the actuator. The switch is terminated with the M10 studs and is suitable for 12-24V applications.

Voltage: 12-24VDC

Continuous current rating: 200A

Crank current rating: 1000A

6.3mm quick connect terminals and M10 studs

Dimensions: 124.9 x 66.3mm (height x diameter)

Screw hole diameter: 2.5mm

Screw holes 36mm apart

Includes 2 keys
