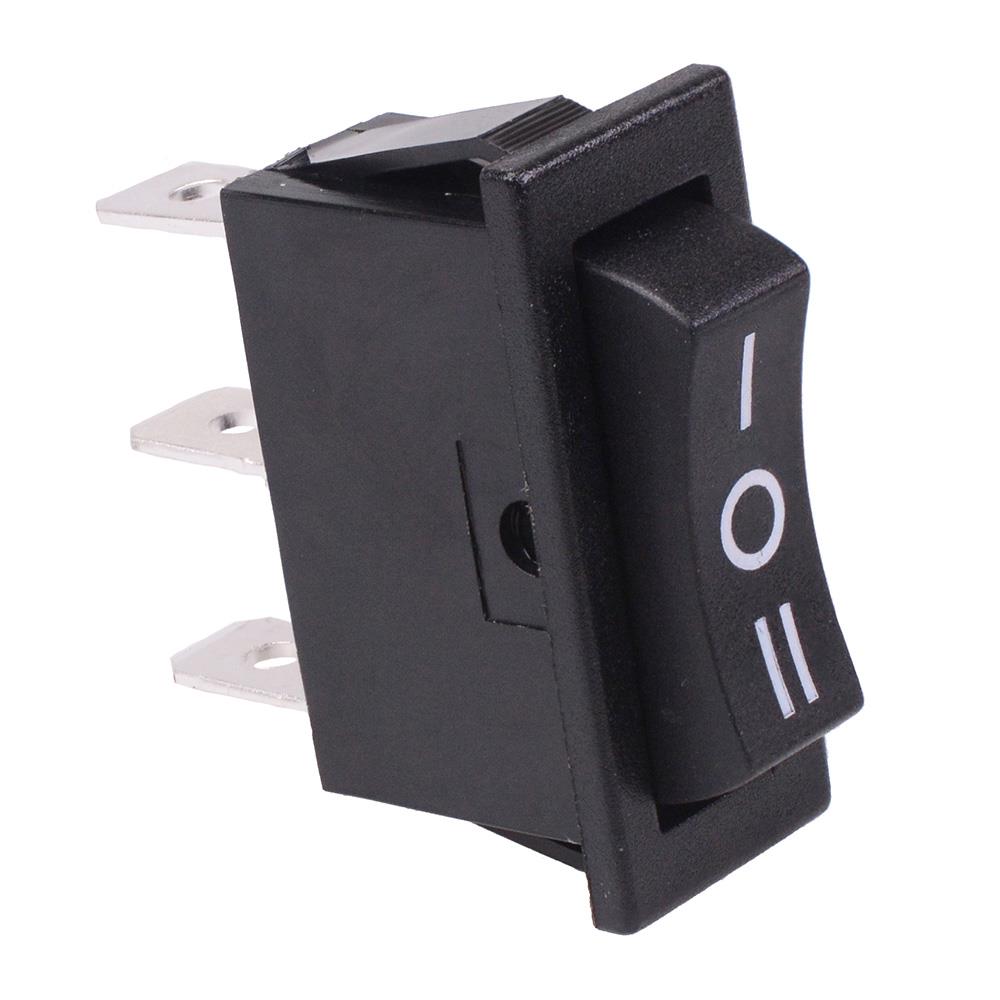

On-Off-On Rectangle Rocker Switch SPDT 10A 250VAC R13-91D-01

R13-91D-01-BB-7D slim rectangle rocker switch featuring SPDT contacts and On-Off-On function. The switch requires a 30.2 x 11.2mm panel cut-out and features 6.3mm quick connect terminals. The switch is rated up to 16A making it suitable for a wide range of AC applications.

Function: On-Off-On

Contacts: SPDT

Panel cut-out: 30.2 x 11.2mm

Panel thickness: 0.75-3mm

Rating: 10A 250VAC, 16A 125VAC

6.3mm quick connect terminals

Dimensions: 33.2 x 14 x 35.6mm (length x width x height)
