(On)-Off-(On) Momentary 3 Way 19mm Key Switch SPDT 4A APEM

(On)-Off-(On) Momentary 3 Way 19mm Key Switch SPDT 4A APEM

£14.91
£12.26 £14.91
Sale Sold out

Order Code: 487452

Delivery calculated at checkout.
Available Online Only

22 in stock
View full details

Product Description

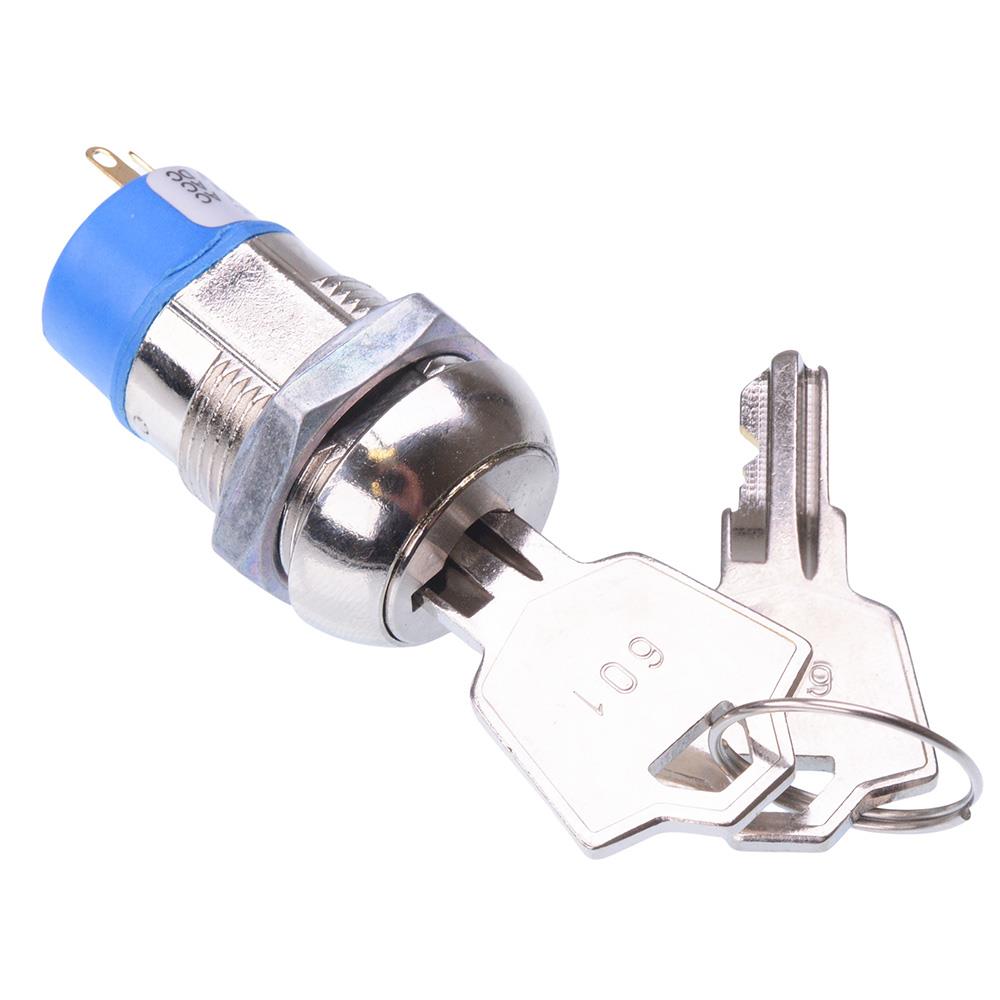

The JD7510E-601 is a high quality key operated switch from the JD series. The switch features momentary SPDT contacts and 3 positions with key withdrawal in position 1. The switch has a nickel plated finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.

  • 3 position (On)-Off-(On) momentary
  • SPDT contacts
  • Nickel plated finish
  • Key withdrawal in position 1
  • Panel cut-out: 19mm
  • Indexing: 45°
  • 601 key
  • Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC
  • Mechanical and electrical life: 6000 cycles at full load
  • Dimensions: 28.8 x 22mm (length x diameter)
