• On-Off-On Mini Momentary Toggle Switch SPDT 6A
1 1

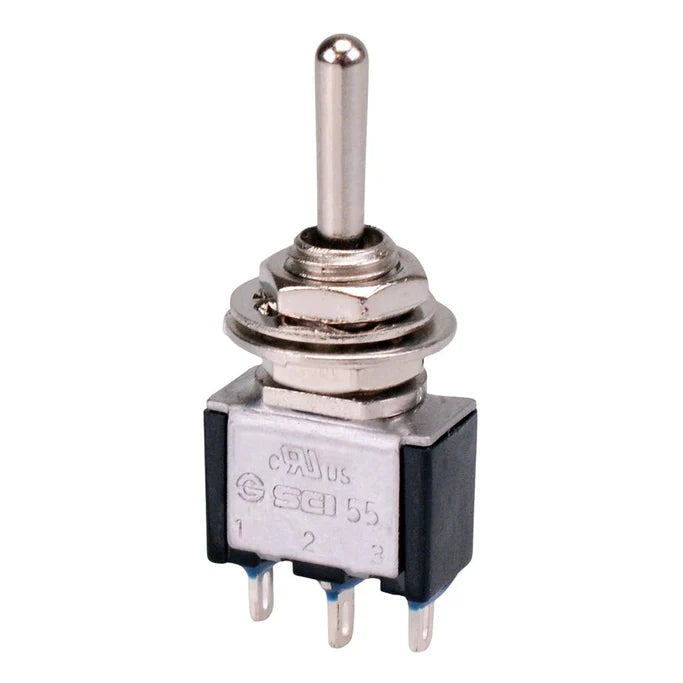

On-Off-On Mini Momentary Toggle Switch SPDT 6A

On-Off-On Mini Momentary Toggle Switch SPDT 6A

£2.99
£2.99
Sale Sold out

Order Code: 14-280

Delivery calculated at checkout.
View full details

Product Description

A miniature size toggle switch with (On)-Off-(On) momentary function and SPDT contacts. The switch requires a 6.2mm panel cut-out and is rated up to 6A, suitable for low power switching applications.

  • (On)-Off-(On) momentary action
  • SPDT contacts
  • 6.2mm panel cut-out
  • M6*0.75 thread
  • Solder contacts
  • Rating: 3A 250VAC, 6A 125VAC
  • Epoxy sealed for dust and moisture resistance
Actuation Momentary
Back Order Lead Time 120 Days
Contact Configuration SPDT
Contact Rating 3A 250VAC
Current Rating 3A
Electrical Life 10,000 Cycles
Illuminated No
Mounting Style Panel
Number of Poles 1
Number of Positions 3
Operating Temperature -20°C to +65°C
Panel Cut Out 6.2mm
Switch Operation (On)-Off-(On)
Terminal Type Solder
Voltage Rating 250VAC
