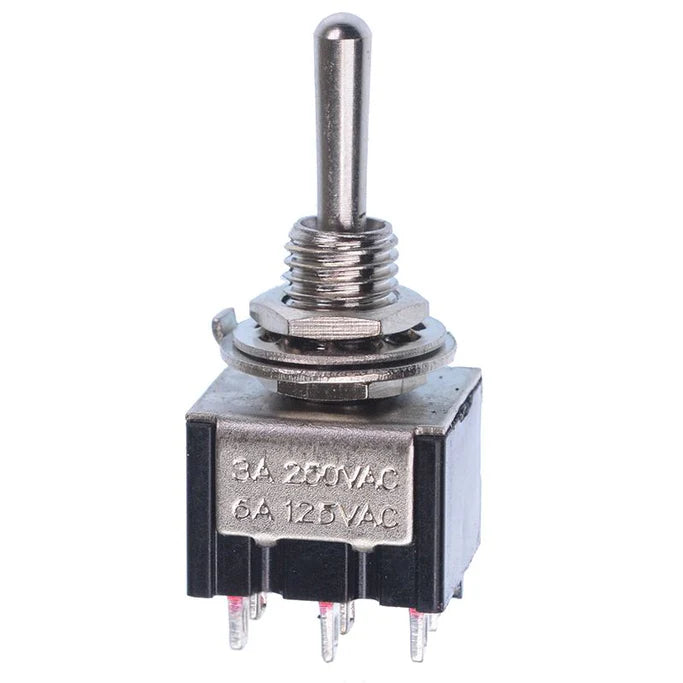

• On-Off-On Mini Latching Toggle Switch DPDT
1 1

On-Off-On Mini Latching Toggle Switch DPDT

On-Off-On Mini Latching Toggle Switch DPDT

£3.49
£3.49
Sale Sold out

Order Code: 14-281

Delivery calculated at checkout.
View full details

Product Description

Miniature size toggle switches with a momentary action suitable for a wide range of applications.

  • (On)-Off-(On) action
  • DPDT contacts
  • Switch returns to the centre when released
  • 6mm panel cut-out
  • Solder terminals
  • Secured with nut
  • Rating: 3A 250VAC, 6A 125VAC
  • Dimensions: 3.3 x 13.2 x 12.7mm (Height x Width x Length)
  • Maximum Panel Thickness: 3mm
Actuation Momentary
Back Order Lead Time 45 Days
Contact Configuration DPDT
Contact Rating 3A 250VAC
Current Rating 3A
Electrical Life 10,000 Cycles
Illuminated No
Mounting Style Panel
Number of Poles 2
Number of Positions 3
Operating Temperature -25°C to +85°C
Panel Cut Out 6mm
Switch Operation (On)-Off-(On)
Terminal Type Solder
Voltage Rating 250VAC
