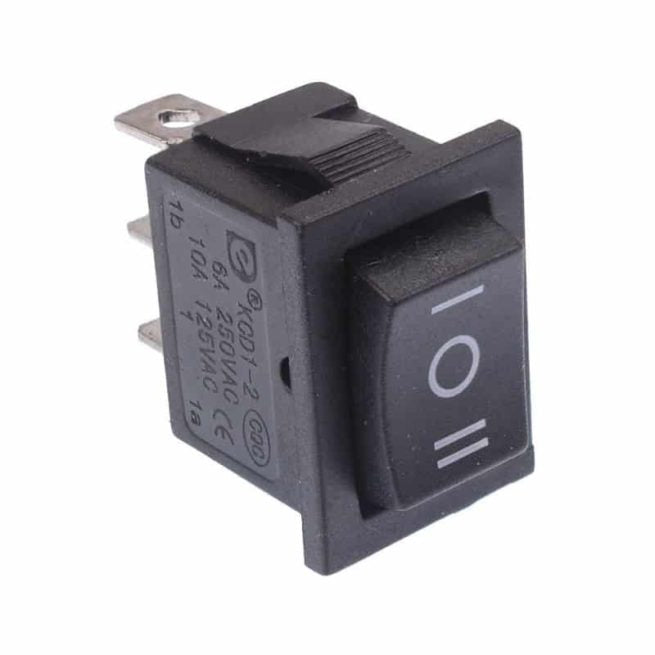

On-Off-On Latching Rectangle Rocker Switch SPDT
On-Off-On Latching Rectangle Rocker Switch SPDT
Regular price
£2.99
Regular price
Sale price
£2.99
Order Code: 14-152
Delivery calculated at checkout.
Quantity
Couldn't load pickup availability
Product Description
Rectangle rocker switch with SPDT contacts and 3-position on-off-on action. The switch is designed for snap-in mounting and is suitable for a wide range of applications. On-Off-On action. SPDT contacts. 4.8mm quick connect terminals. Panel cut-out: 19 x 12mm. Dimensions: 25 x 21 x 15mm (Height x Length x Width). Maximum current: 6A. Maximum voltage: 250VAC
Specifications
| Type | Rocker |
| Action | Latching (locking) |
| Pole Configuration | SPDT |
| Positions | On (Locking) Off (Locking) On (Locking) |
| illumination | None |
| Max Voltage & Current | 6A 250VAC |
| Contact Resistance | 50mΩ Max |
| Insulation Resistance | 100MΩ Min |
| Dielectric Strength | 1500VAC 1 minute |
| Panel Cut-Out Size | 19.2 x 13mm |
| Cycle Life | 10,000+ Cycles |
| Dimensions | 25 x 21 x 15mm (Height x Length x Width) |
| Operating Temperature | -25°C to +85°C |
| Number of Terminals | 3 |
| Terminal Type | 4.8mm |
