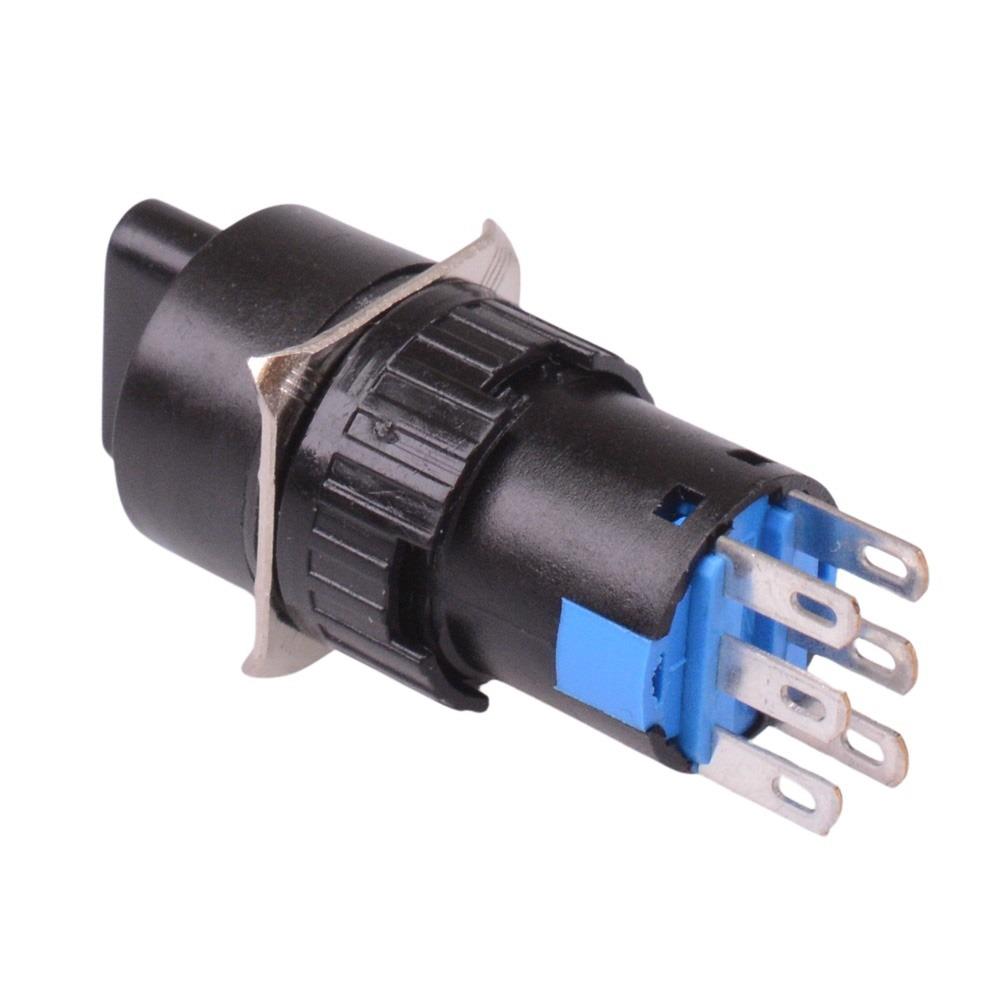

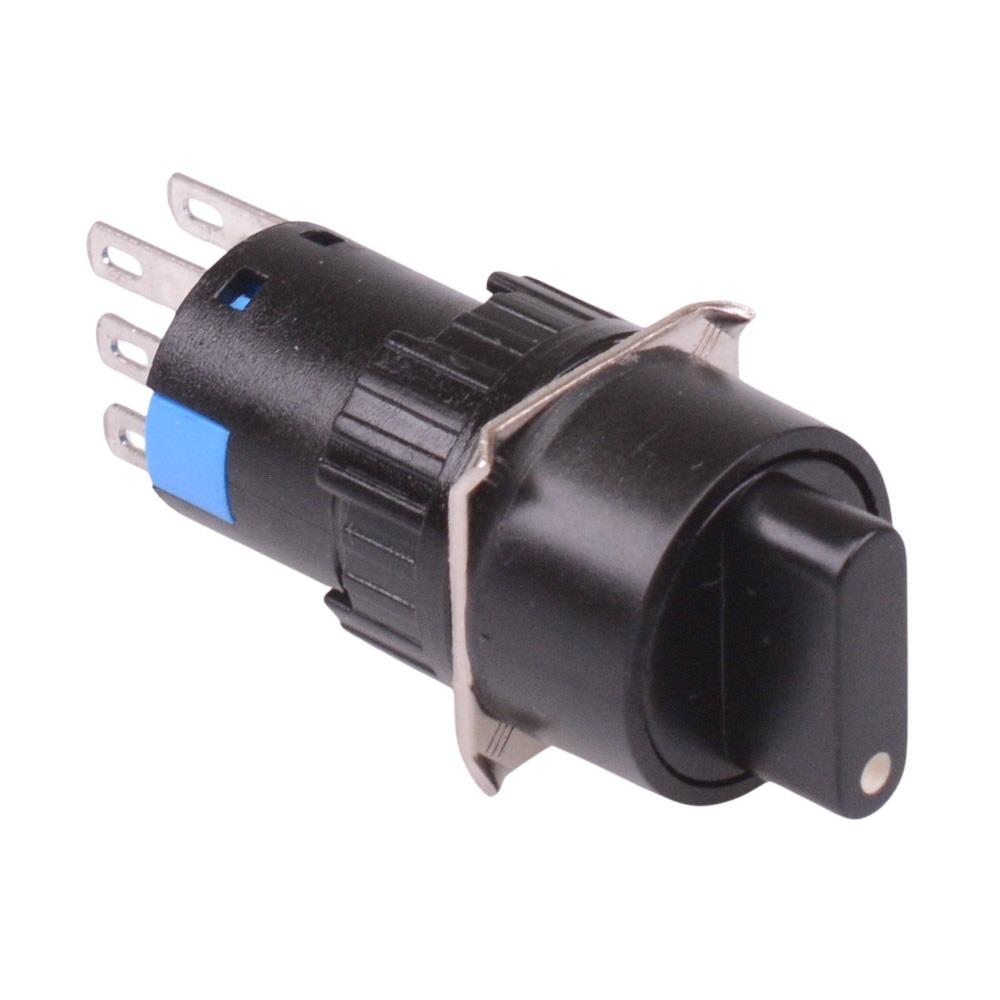

On-Off-On 3 Position 16mm Latching Selector Switch 2NO/2NC 3A 250V

3 position round latching industrial selector switch featuring DPDT contacts, suitable for 16.2mm panel cut-outs. The switch is designed for a wide range of applications including control panels, automation, factories and general purpose uses..

Latching operation

3 positions, 45° each turn

2NO/2NC DPDT contacts

Contact rating: 3A 250V

Panel cut-out: 16.2mm

Panel thickness: 0.5-6mm

2.8x0.5mm solder/quick-connect terminals

Dimensions: 39 x 18mm (height x diameter)
