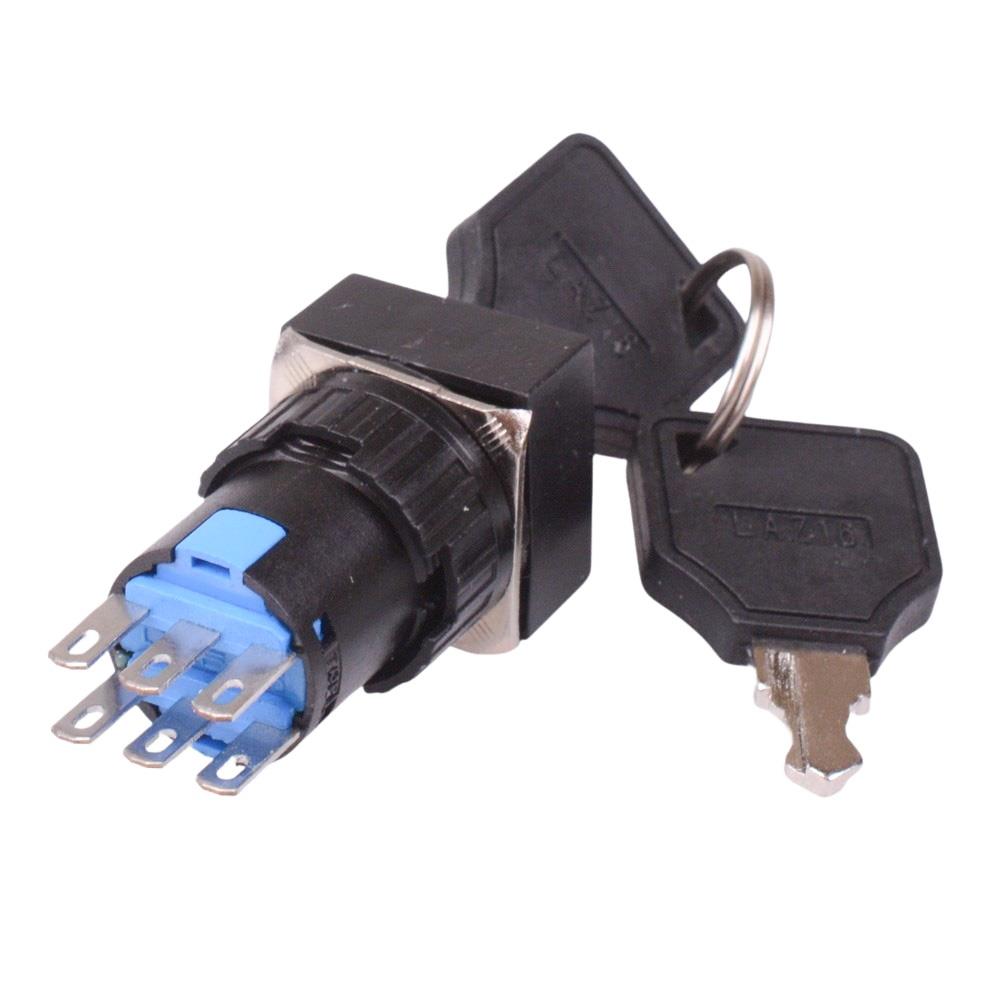

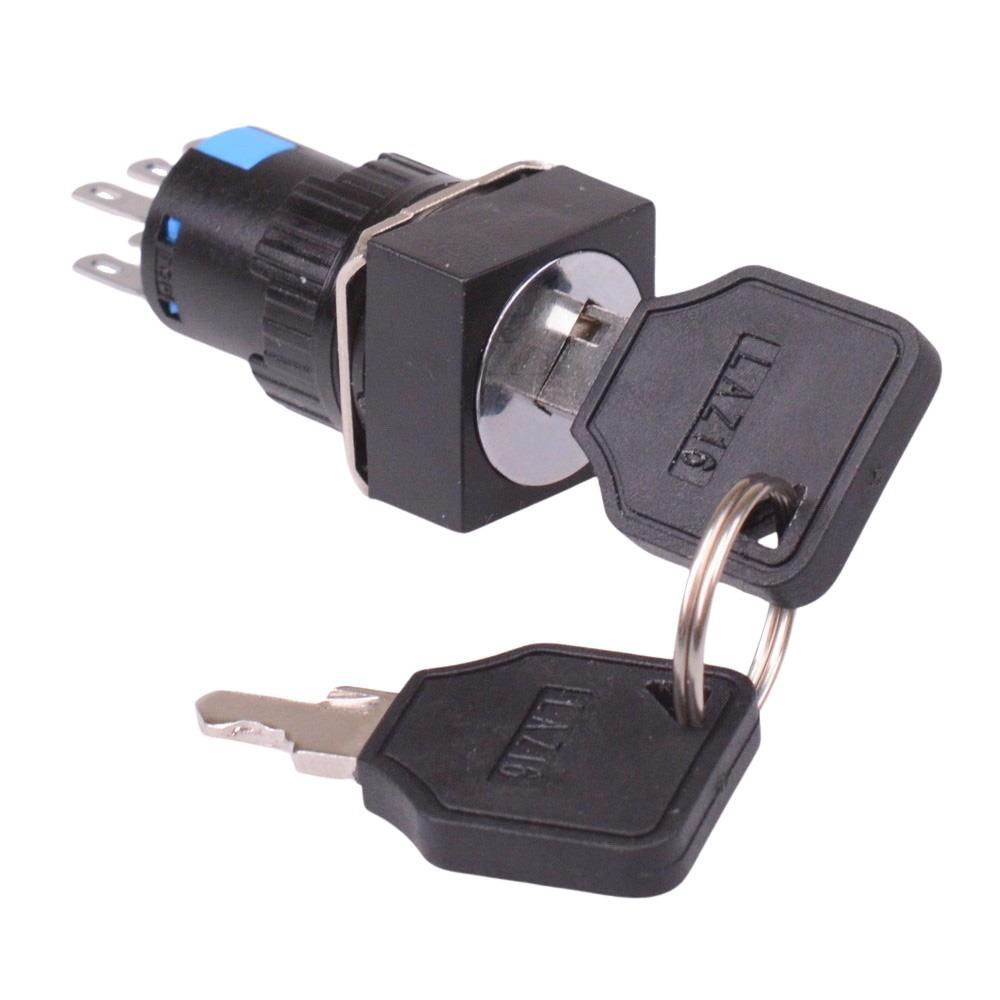

On-Off-On 3 Position 16mm Latching Key Switch 2NO/2NC 3A 250V

3 position square latching industrial key switch featuring DPDT contacts, suitable for 16.2mm panel cut-outs. The switch is designed for a wide range of applications including control panels, automation, factories and general purpose uses.

Latching operation

3 positions, 45° each turn

Key removable in all positions

2NO/2NC DPDT contacts

Contact rating: 3A 250V

Panel cut-out: 16.2mm

Panel thickness: 0.5-6mm

2.8x0.5mm solder/quick-connect terminals

Dimensions: 39 x 17 x 17mm (height x width x length)
