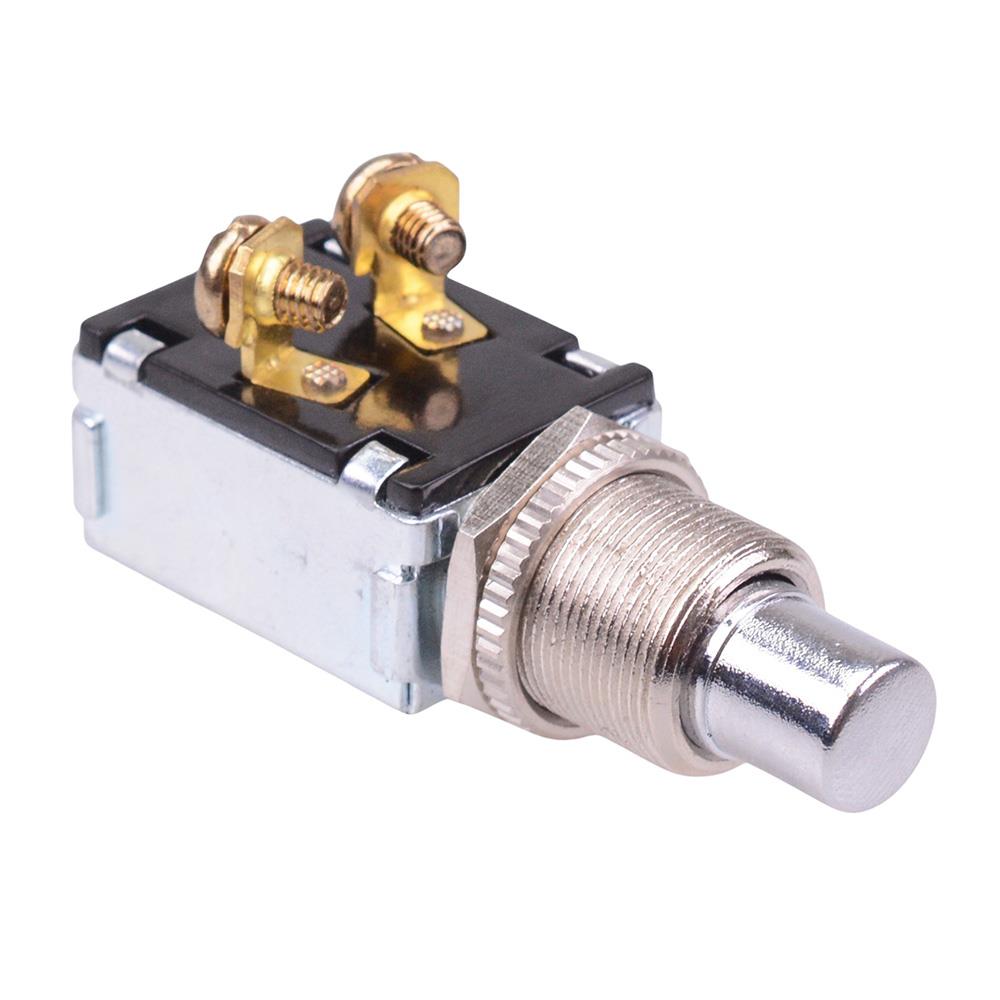

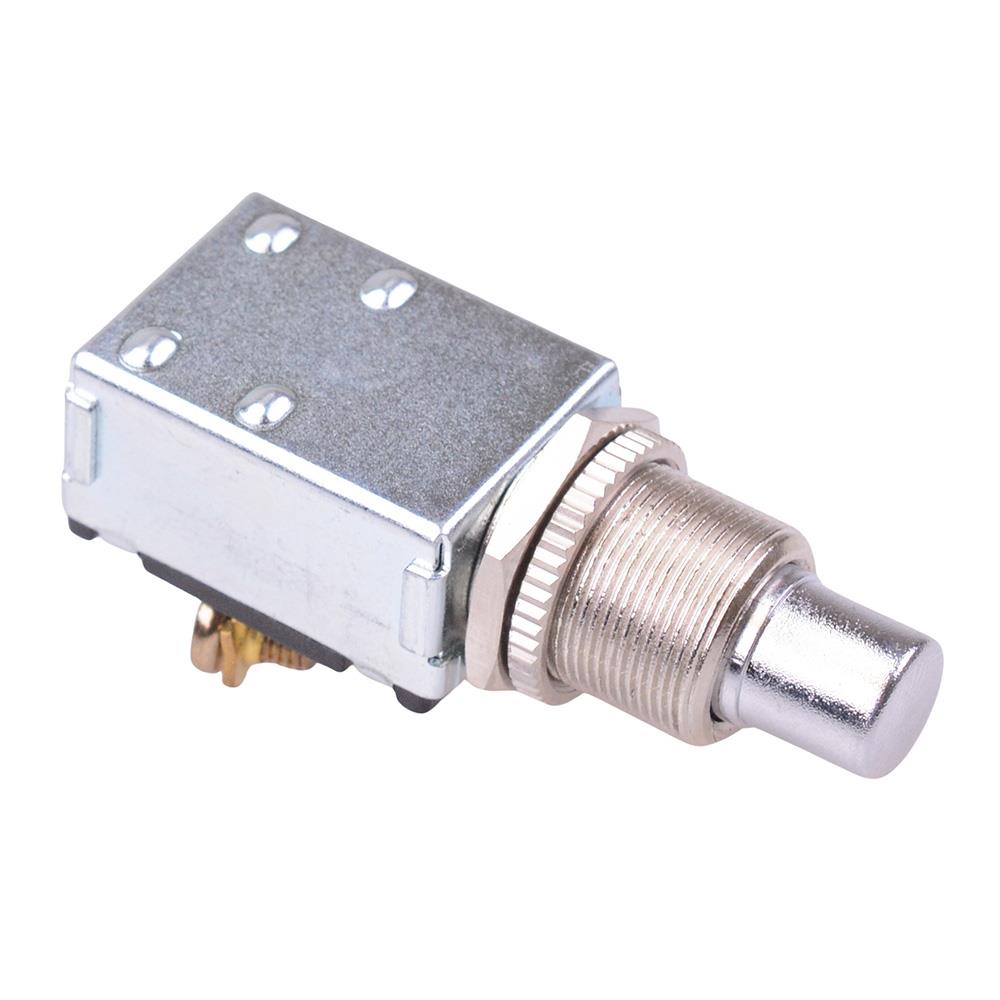

On-(Off) Normally Closed Momentary 16mm Push Button Switch 30A 12VDC A3-27B-07

The A3-27B-07 is a metal push button switch featuring 30A 12VDC rating and normally closed SPST contacts. The switch features On-(Off) function and requires a 16mm panel cut-out. The high current rating makes the switch suitable for a wide range of 12V applications including automotive.

On-(Off) momentary function

SPST-NC contacts

Rating: 30A 12VDC

Panel cut-out: 16mm

Terminals: M4*0.7

Dimensions: 59.5 x 23 x 25.6mm (length x width x height)
