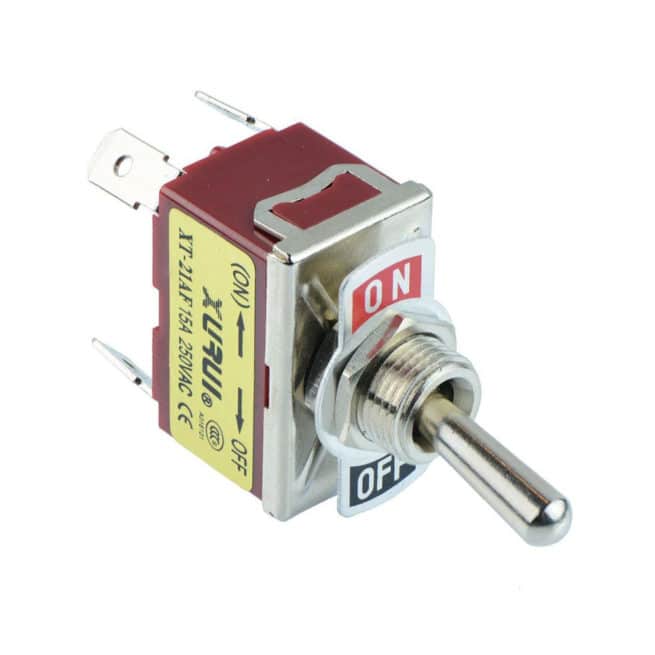

On-Off Latching Toggle Switch DPST
On-Off Latching Toggle Switch DPST
Regular price
£3.99
Regular price
Sale price
£3.99
Delivery calculated at checkout.
Order Code: 14-058
Quantity
We have 2 in stock in Southampton
Couldn't load pickup availability
Product Description
DPST toggle switch with a On-Off operation providing a reliable mechanism suitable for panel mounting applications.
Specifications
| Type | Toggle |
| Action | Latching (locking) |
| Pole Configuration | DPST |
| Positions | On (Locking) Off (Locking) |
| illumination | None |
| Max Voltage & Current | 15A 250VAC |
| Contact Resistance | 25mΩ Max |
| Insulation Resistance | 100MΩ Min |
| Dielectric Strength | 1000VAC 1 minute |
| Panel Cut-Out Size | 12mm |
| Cycle Life | 100,000+ Cycles |
| Dimensions | 61 x 32.5 x 20mm (Height x Length x Width) |
| Operating Temperature | -25°C to +80°C |
| Number of Terminals | 4 |
| Terminal Type | 6.3mm |
