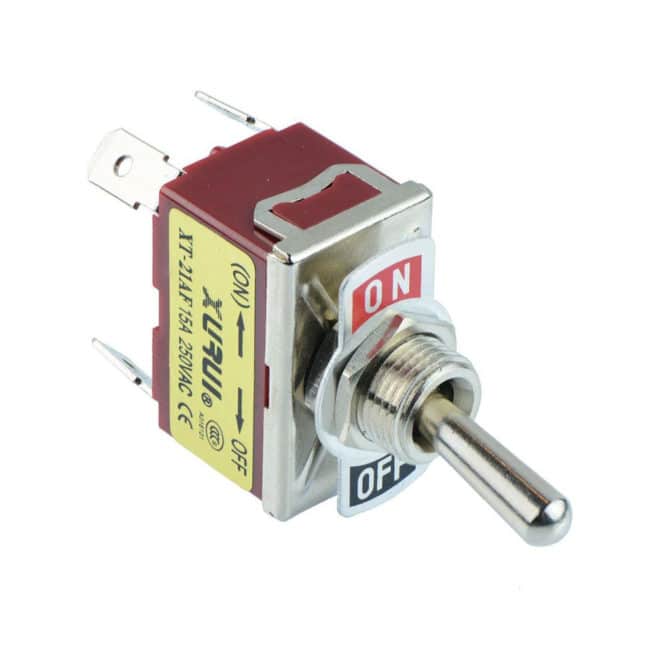

On-Off Latching Toggle Switch DPST

On-Off Latching Toggle Switch DPST

£3.99
£3.99
Sale Sold out
Delivery calculated at checkout.
Order Code: 14-058
We have 3 in stock
View full details

Product Description

DPST toggle switch with a On-Off operation providing a reliable mechanism suitable for panel mounting applications.

Specifications
TypeToggle
ActionLatching (locking)
Pole ConfigurationDPST
PositionsOn (Locking) Off (Locking)
illuminationNone
Max Voltage & Current15A 250VAC
Contact Resistance25mΩ Max
Insulation Resistance100MΩ Min
Dielectric Strength1000VAC 1 minute
Panel Cut-Out Size12mm
Cycle Life100,000+ Cycles
Dimensions61 x 32.5 x 20mm (Height x Length x Width)
Operating Temperature-25°C to +80°C
Number of Terminals4
Terminal Type6.3mm
