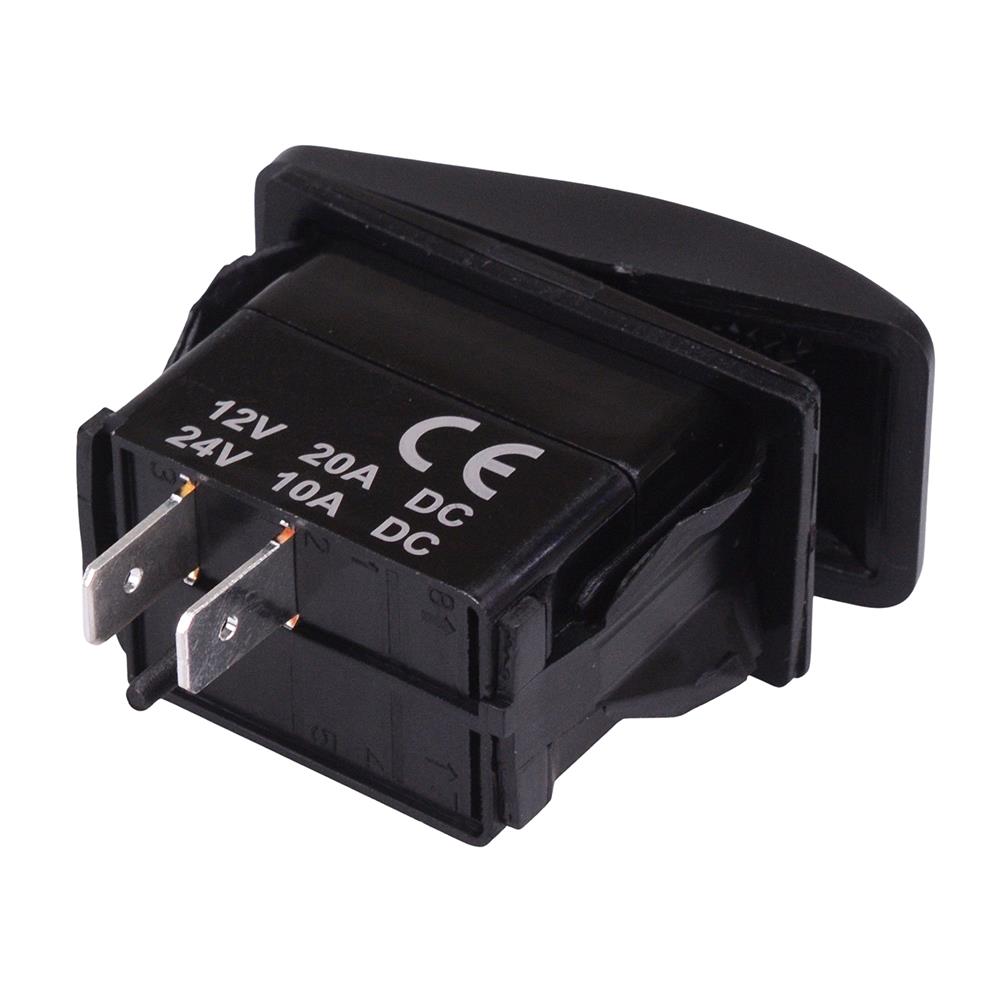

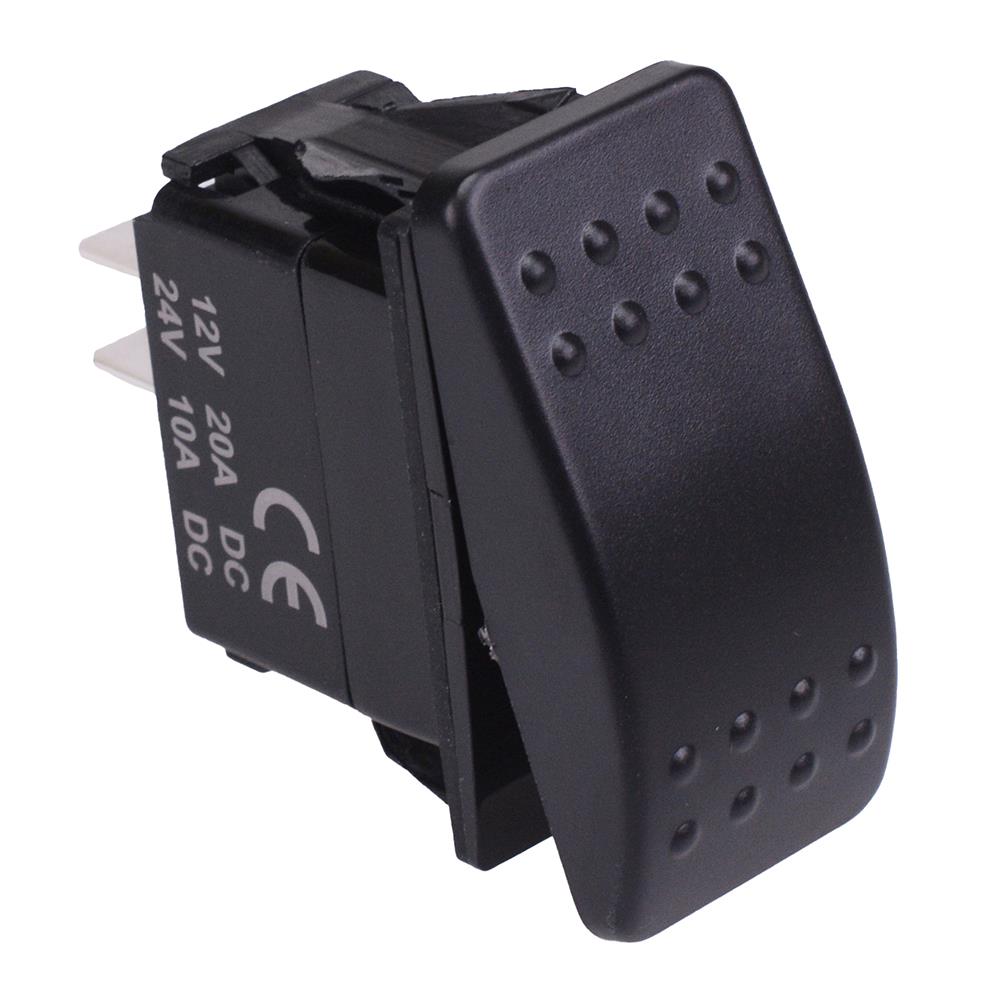

On-Off Automotive Rocker Switch SPST 10A 12-24V IP68

On-Off function rocker switch featuring SPST contacts and 6.3mm quick connect terminals. The switch features IP68 protection rating and fits standard automotive 37x21mm panel cut-outs. The switch is suitable for a wide range of 12V/24V applications including autmotive and marine.

Function: On-Off

Contacts: SPST

Protection rating: IP68

Panel cut-out: 37x21mm

Panel thickness: 1-4.9mm

Rating: 10A 24VDC, 20A 12VDC, 10A 250VAC, 15A 125VAC

Dimensions: 51.8 x 49.5 x 24.5mm (height x length x width)
