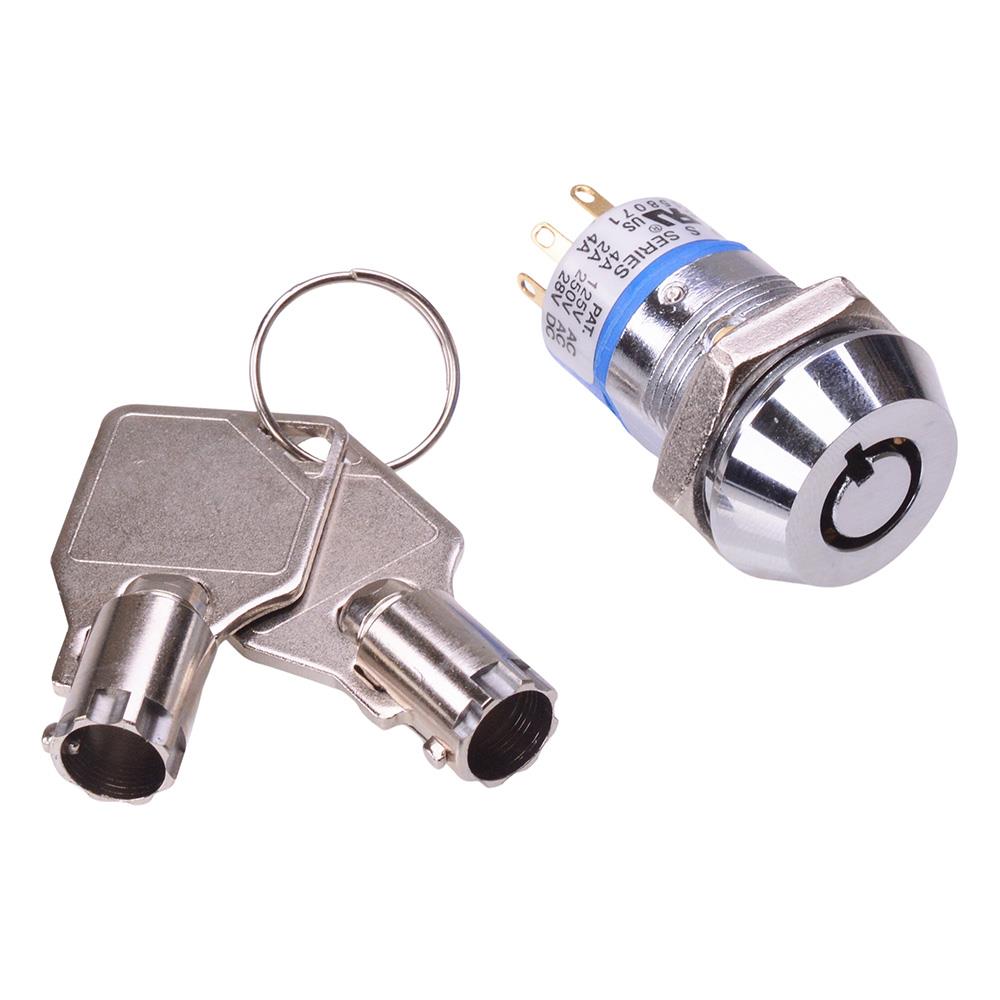

On-Off 2 Way 19mm Key Switch DPST 4A APEM

The JD7518O is a high quality key operated switch from the JD series. The switch features DPST contacts and 2 positions with key withdrawal in position 1. The switch has a nickel plated finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.

• 2 positions
• DPST contacts
• Nickel plated finish
• Different keys
• Key withdrawal in position 1
• Panel cut-out: 19mm
• Indexing: 90°
• Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC
• Mechanical and electrical life: 6000 cycles at full load
• Dimensions: 28.8 x 22mm (length x diameter)
