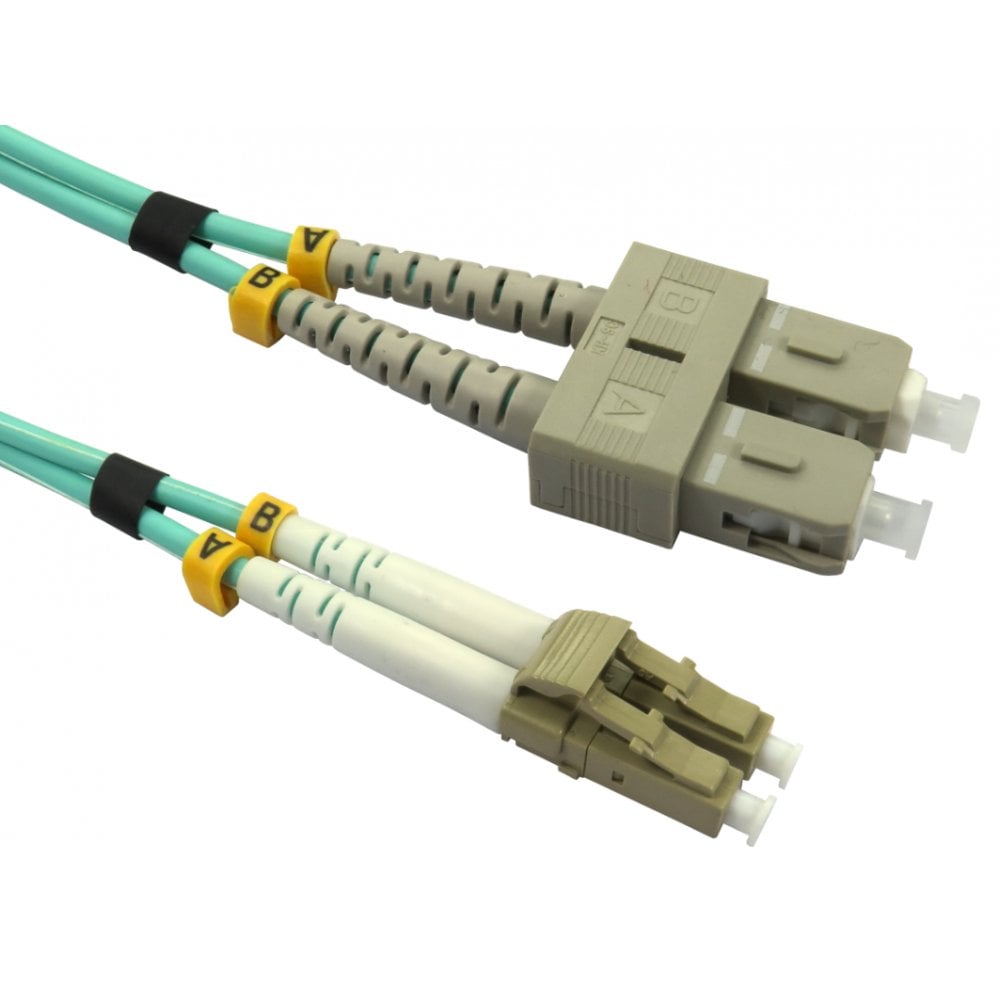

OM4 Fibre Optic Cable LC-SC Multi-Mode

Our OM4 fibre optic cables are constructed with 50µm core and 125µm cladding in both LC and SC variations. The OM4 range offer a higher bandwidth and greater distance over OM3 cables.

• LC to SC
• LC UPC & SC UPC Connectors
• 50/125µm Duplex
• Wavelength: 850nm & 1300nm
• Bandwidth: 3500 / 4700MHz
• Multi-mode OM4
• Aqua LSZH jacket
• Insertion Loss: <= 0.30dB
• Return Loss: > 35dB
• Diameter 3.0mm
