Off-On-On 3 Way 19mm Key Switch SPDT 4A APEM

Off-On-On 3 Way 19mm Key Switch SPDT 4A APEM

£15.28
£12.60 £15.28
Sale Sold out

Order Code: 487626

Delivery calculated at checkout.
Available Online Only

74 in stock
View full details

Product Description

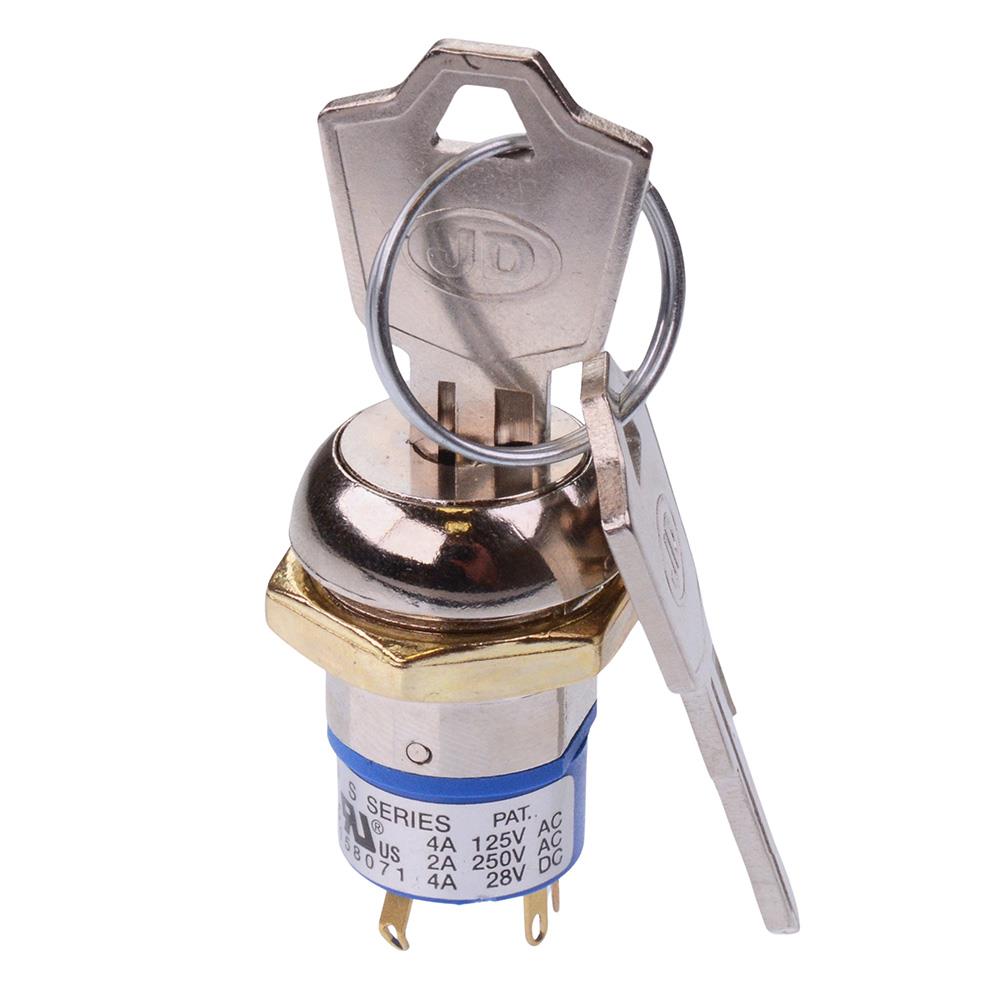

The JD7509B1 is a high quality key operated switch from the JD series. The switch features SPDT contacts and 3 positions with key withdrawal in position 2. The switch has a nickel plated finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.

  • 3 positions
  • SPDT contacts
  • Nickel plated finish
  • 019 key
  • Key withdrawal in position 2
  • Panel cut-out: 19mm
  • Indexing: 45°
  • Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC
  • Mechanical and electrical life: 6000 cycles at full load
  • Dimensions: 28.8 x 22mm (length x diameter)
