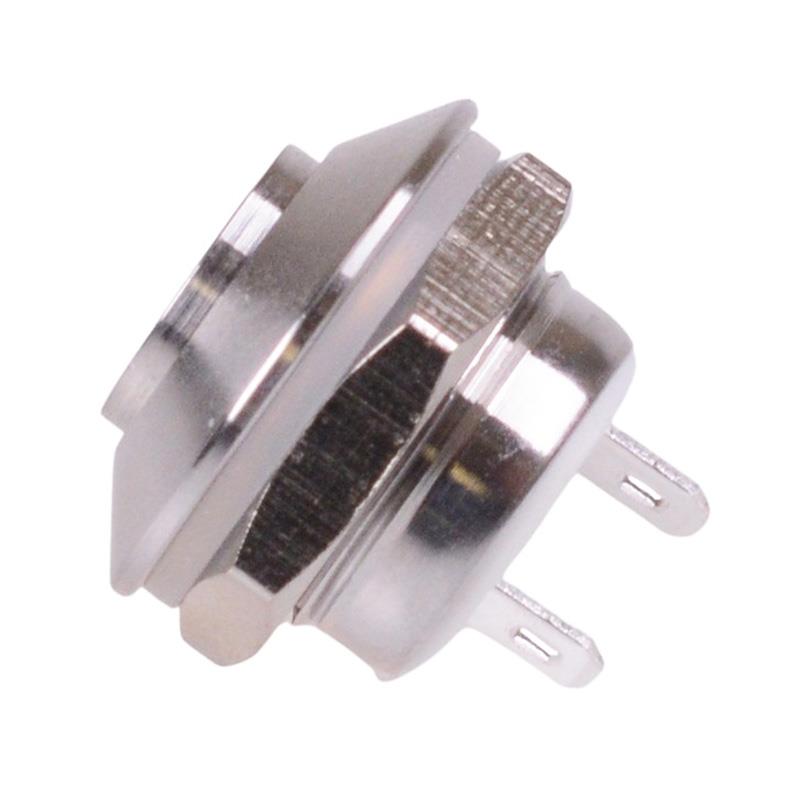

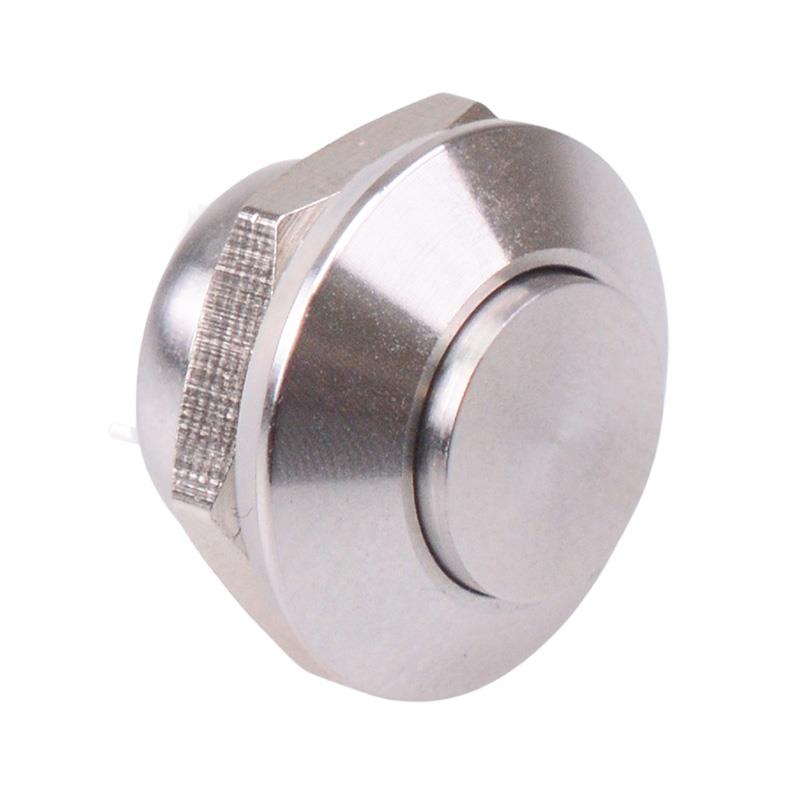

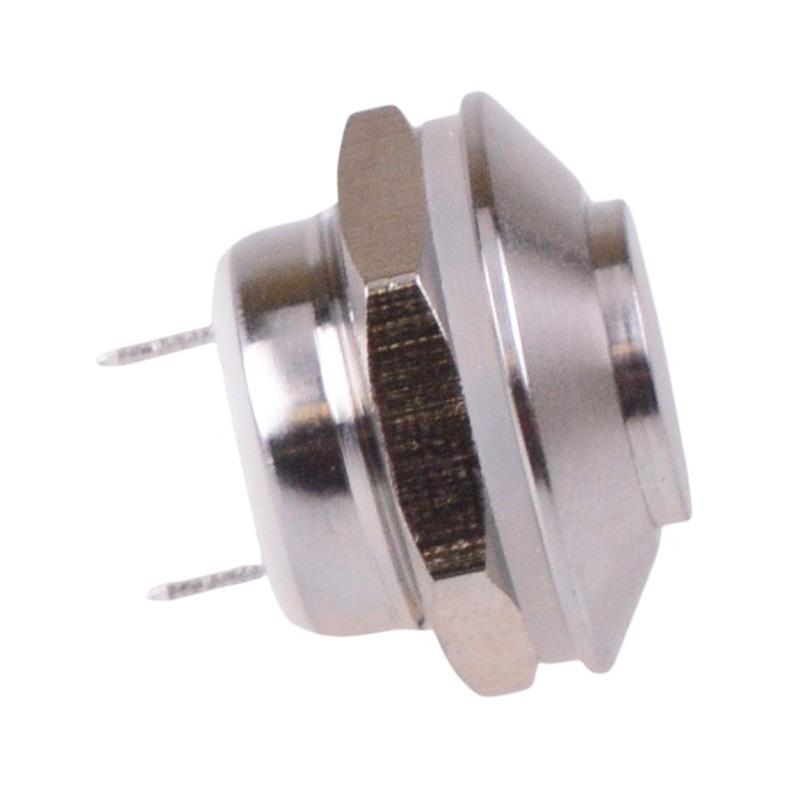

Off-(On) Momentary 12mm Push Button Switch Stainless Steel IP67

Off-(On) momentary push button switch featuring SPST normally open contacts and stainless steel housing. The switch featuring IP67 protection rating and solder terminals, suitable for a wide range of applications including control panels, automotive, appliances, industrial etc.

Off-(On) operation

SPST-NO contacts

Stainless steel housing

Solder lug terminals

IP67 protection rating

Rating: 50mA 12VDC

Panel thickness: 4mm max

Panel cut-out: 12mm

Dimensions: 14.45 x 15.8mm (height x diameter)
