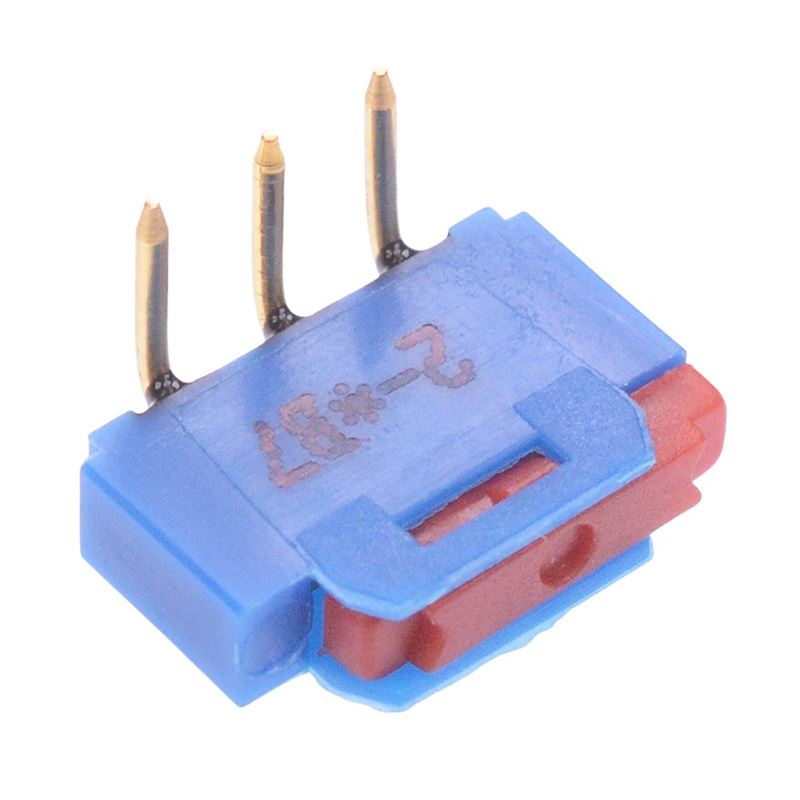

NK236W On-On Sub-Miniature Flush Actuator Right Angle PCB Slide Switch 500mA 12V SPDT APEM

The NK236W is a right angle sub-miniature slide switch featuring a flush actuator and SPDT contacts, manufactured by APEM. The switch features 2.54mm pitch and is suitable for a wide range of PCB applications due to its small size.

Flush actuator

SPDT contacts

On-On operation

Right angle PCB terminals

Rating: 0.5A 12V

Contact material: gold over nickel

Body dimensions: 10 x 6.5 x 2.6mm (length x height x thickness)
