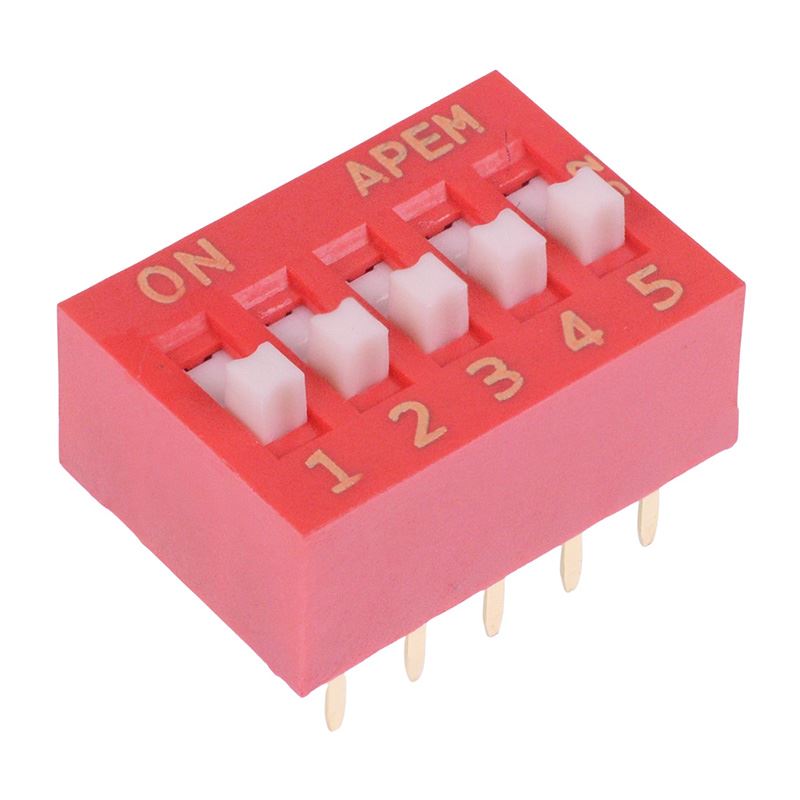

NDS-05-V 5 Way Raised Actuator DIP Switch SPST APEM

NDS-05-V 5 Way Raised Actuator DIP Switch SPST APEM

£0.93
£0.82 £0.93
Sale Sold out

Order Code: 486233

Delivery calculated at checkout.
Available Online Only

27 in stock
View full details

Product Description

The NDS-05-V is a 5 way standard profile dual in-line switch manufactured by APEM featuring SPST contacts and 2.54mm pitch. The switch features gold plated self-cleaning contacts, making them suitable for a wide range of through hole applications.

  • 5 way
  • SPST contacts
  • Raised actuator
  • 2.54mm x 7.62mm pitch
  • Switching contact rating: 25mA 24VDC
  • Non-switching contact rating: 100mA 50VDC
  • Electrical life: 2000 cycles per switch
  • Contact material: gold plated
