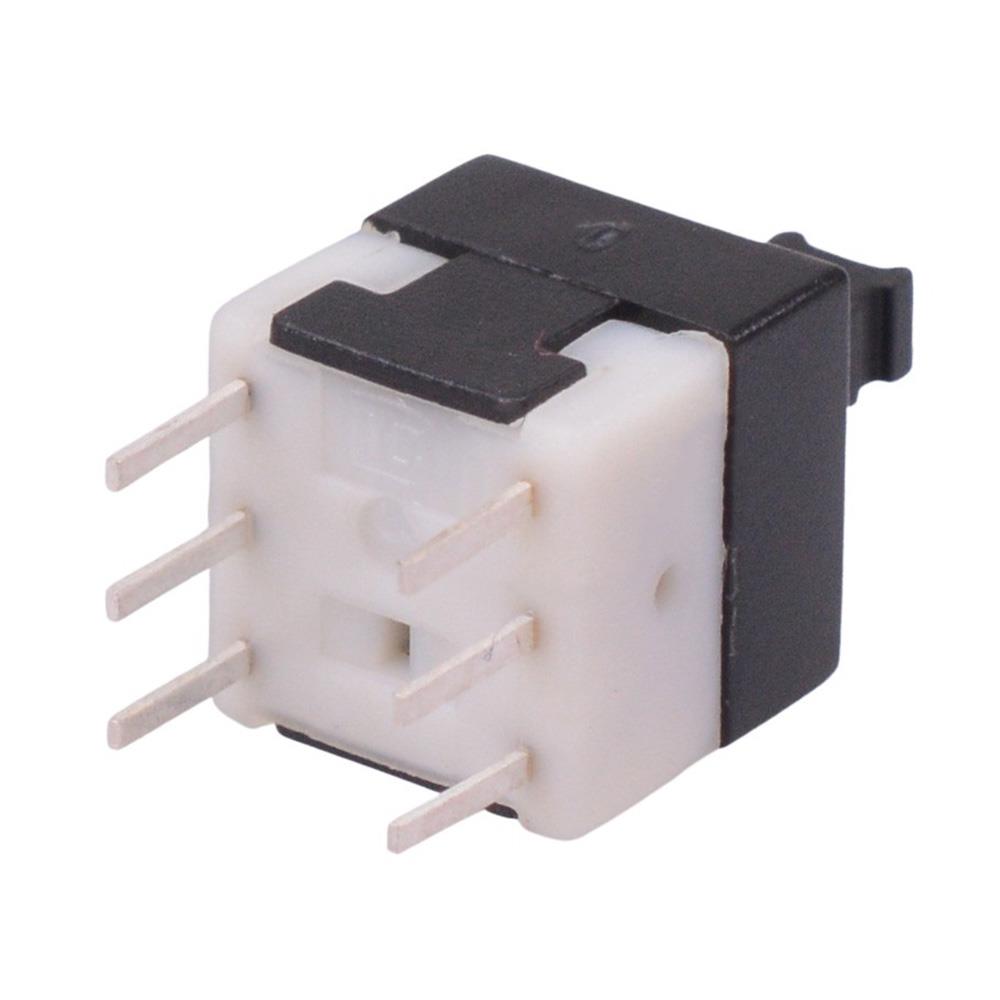

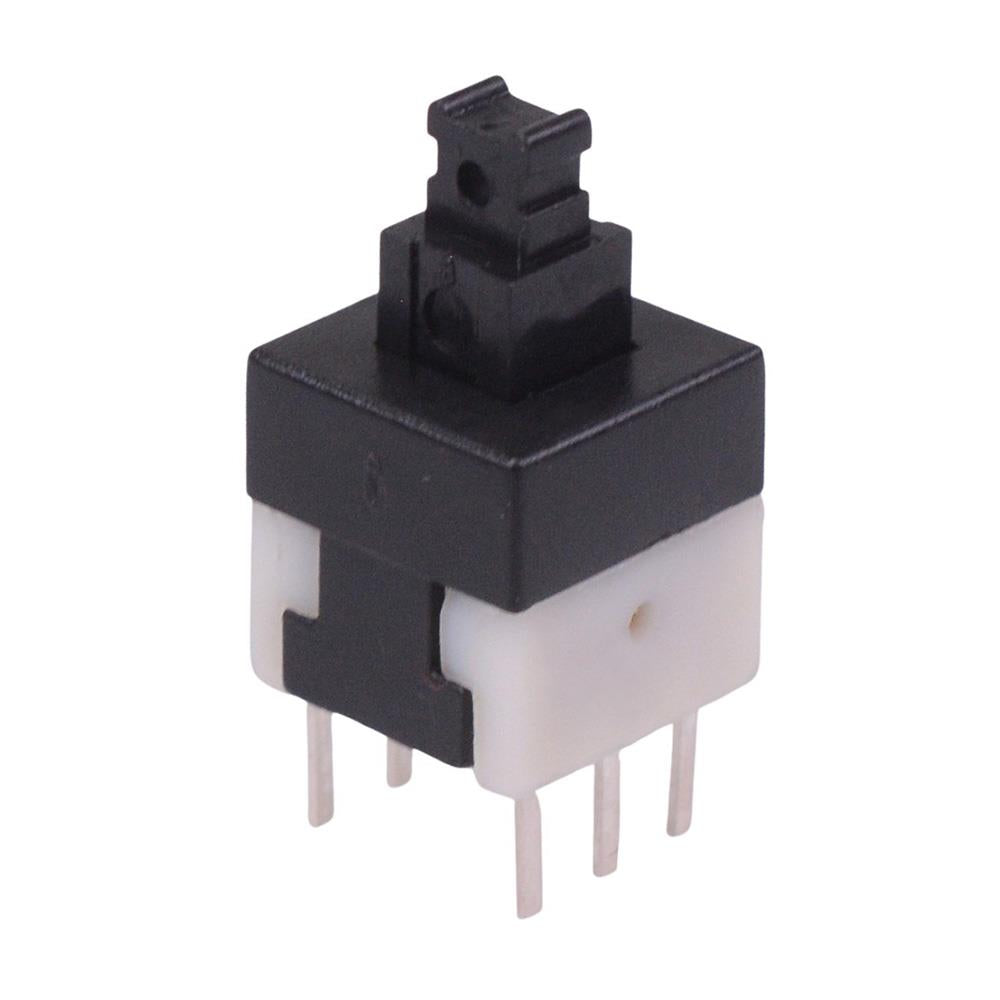

Momentary 8x8mm PCB Push Button Switch DPDT 100mA 30VDC

Momentary push button switch featuring DPDT contacts and housed in a square 8x8mm package. The switch features PCB terminals designed for through hole mounting and 100mA 30VDC rating. The 3x2mm actuator is compatible with a wide range of caps, making the switch popular for PCB assembly and replacement applications.

Momentary function

DPDT contacts

Package: 8x8mm

Rating: 0.1A 30VDC

Pin pitch: 2.5 x 6.0mm

Actuator size: 3.0 x 2.0mm

Operating force: 160gf

Electrical life: 10,000 cycles
