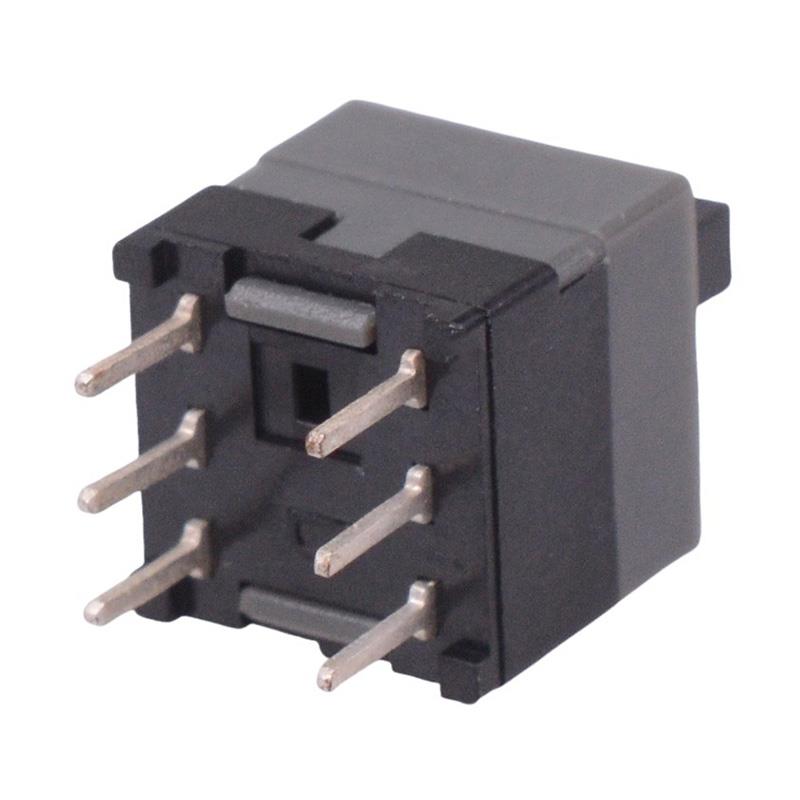

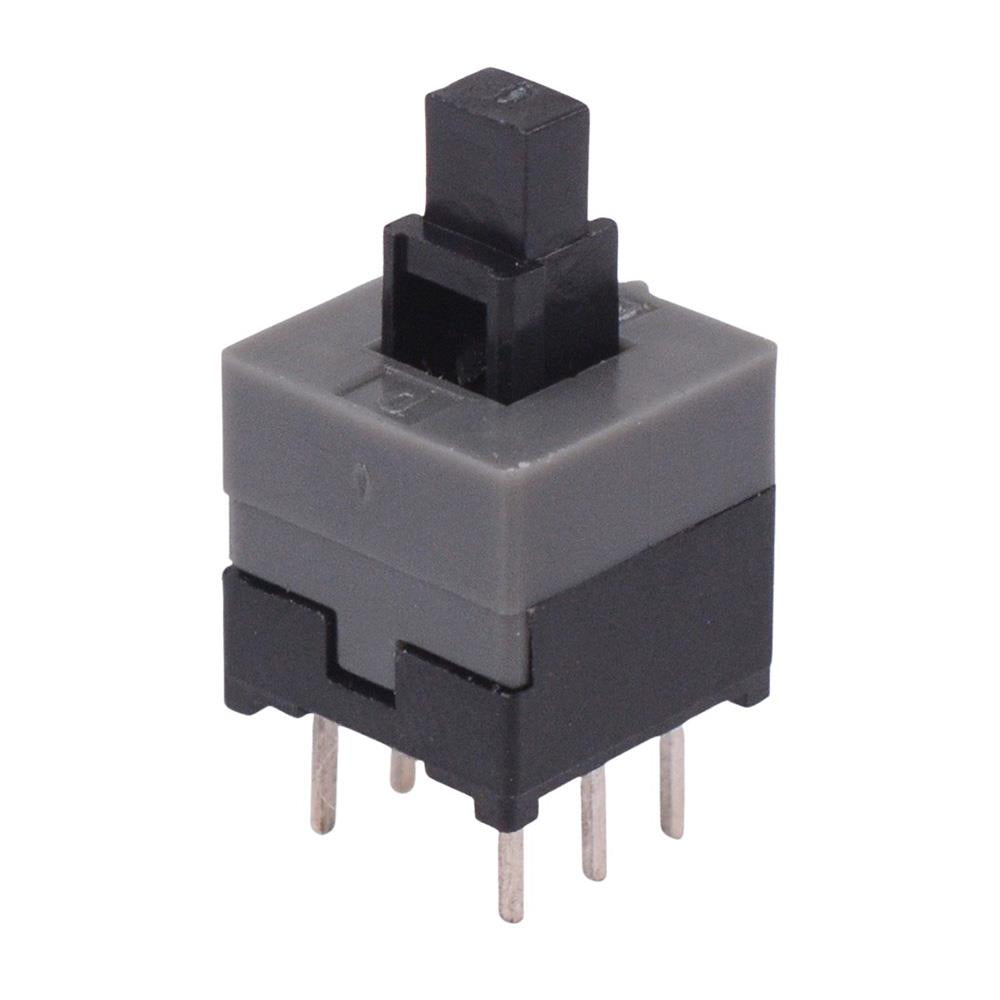

Momentary 8.5x8.5mm PCB Push Button Switch DPDT 300mA 30VDC

Momentary push button switch featuring DPDT contacts and housed in a square 8.5x8.5mm package. The switch features PCB terminals designed for through hole mounting and 300mA 30VDC rating. The 3x2mm actuator is compatible with a wide range of caps, making the switch popular for PCB assembly and replacement applications.

Momentary function

DPDT contacts

Package: 8.5x8.5mm

Rating: 0.3A 30VDC, 0.5A 16VDC

Pin pitch: 2.5 x 5.4mm

Actuator size: 3.0 x 2.0mm

Operating force: 200gf

Electrical life: 10,000 cycles
