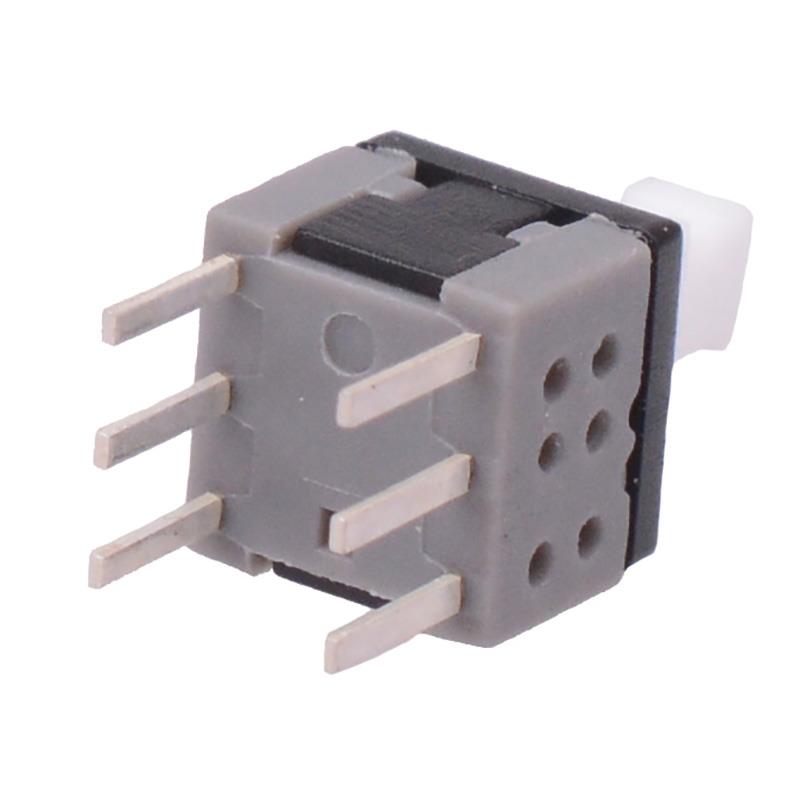

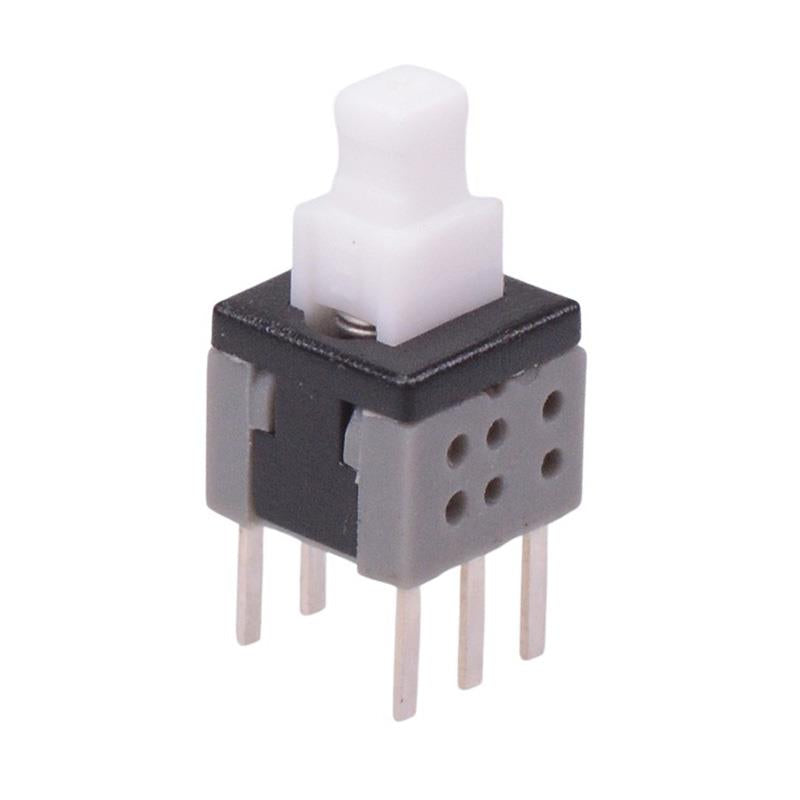

Momentary 5.8x5.8mm PCB Push Button Switch DPDT 100mA 30VDC

Momentary push button switch featuring DPDT contacts and housed in a square 5.8x5.8mm package. The switch features PCB terminals designed for through hole mounting and 100mA 30VDC rating. The 2.5x2mm actuator is compatible with a wide range of caps, making the switch popular for PCB assembly and replacement applications.

Momentary function

DPDT contacts

Package: 5.8x5.8mm

Rating: 0.1A 30VDC

Pin pitch: 2.0 x 4.5mm

Actuator size: 2.5 x 2.0mm

Operating force: 160gf

Electrical life: 10,000 cycles
