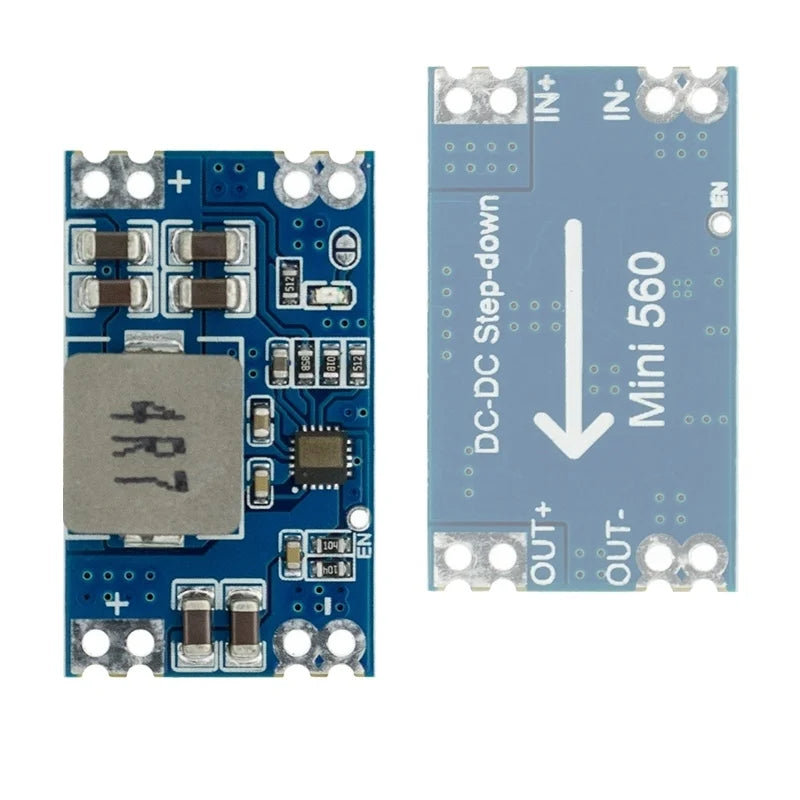

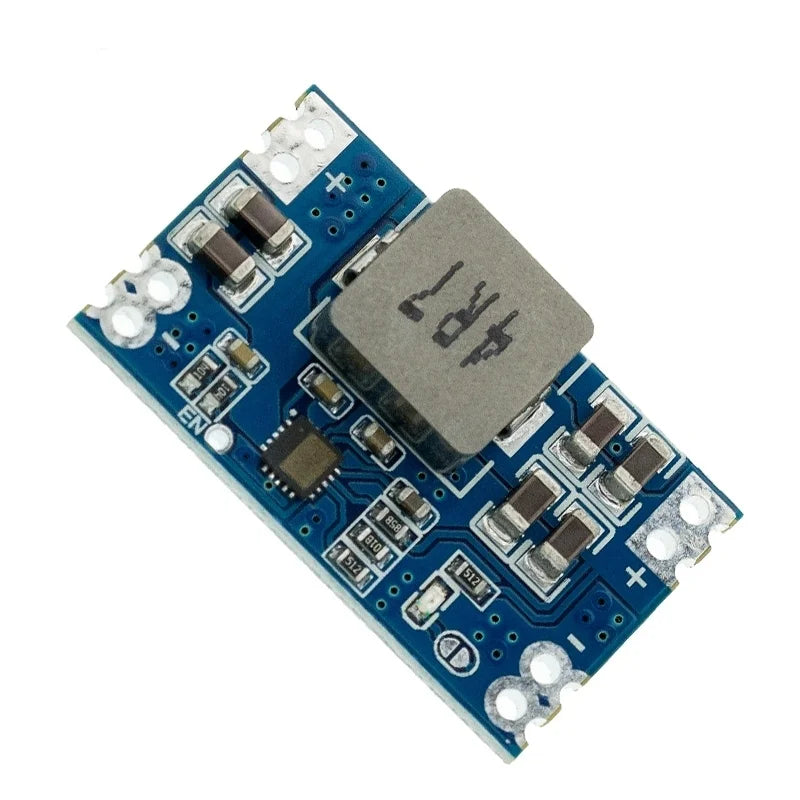

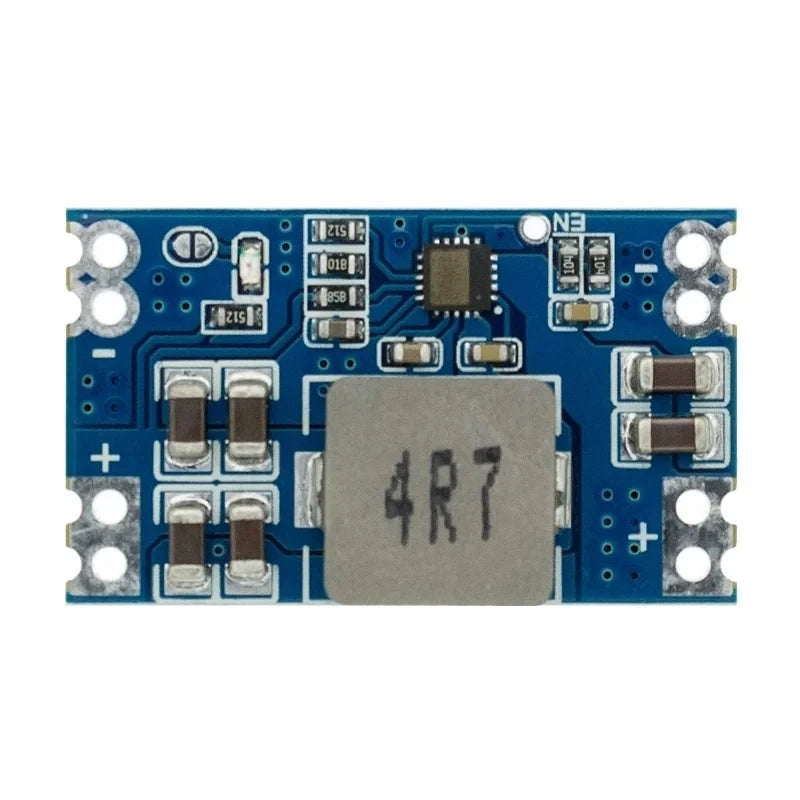

Mini 560 5V-20V To Fixed 5V 5A Step Down Buck Converter Power Supply

Features of Mini 560 Step Down Buck Converter

Input 5V-20V To 5V 5A

High efficiency, high stability, high cost performance.
Ultra-small size, very easy to be embedded in each system
Stamp hole design, user-friendly welding. It is also convenient for industrial use of patches
High conversion efficiency and low heat generation.

DC DC Converter Parameters:

Input: 5-20V (It is a step down module, input should be higher than selected output model minimum 2V)
Model: Mini560
Voltage Output: 5V
Switching frequency: 500KHz
Conversion efficiency: 99% (maximum)
Working temperature: -40 -85°C
Module nature: non-isolated buck
Rectification method: Synchronous rectification

Note: Minimum difference in the voltage 2V
Stable output voltage.

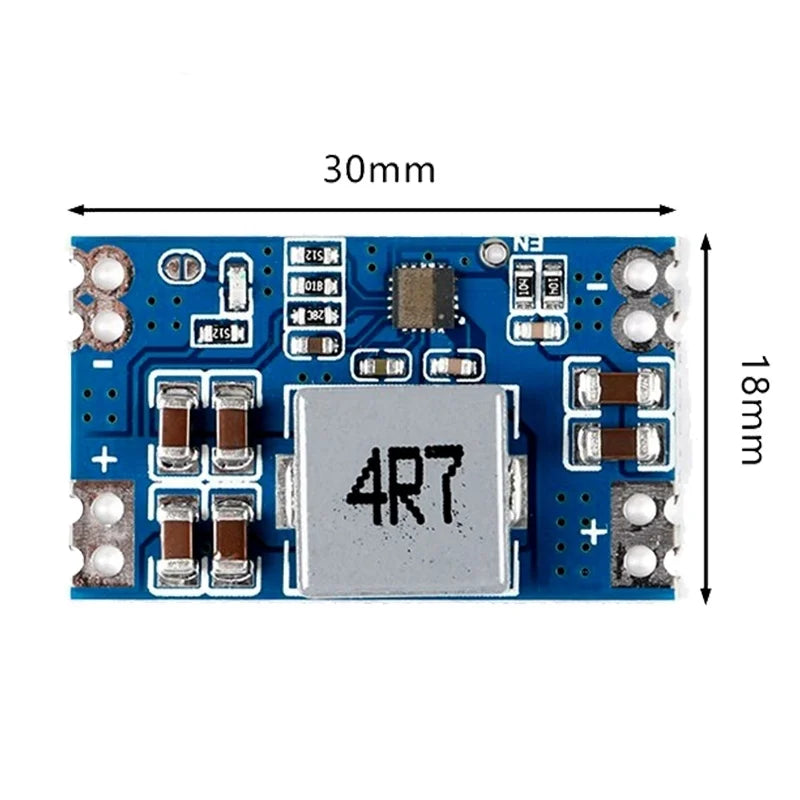

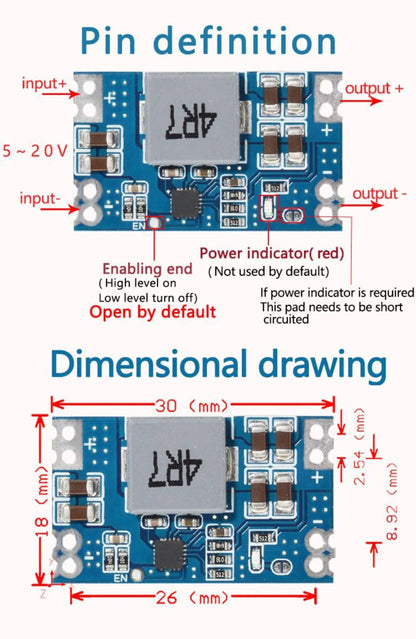

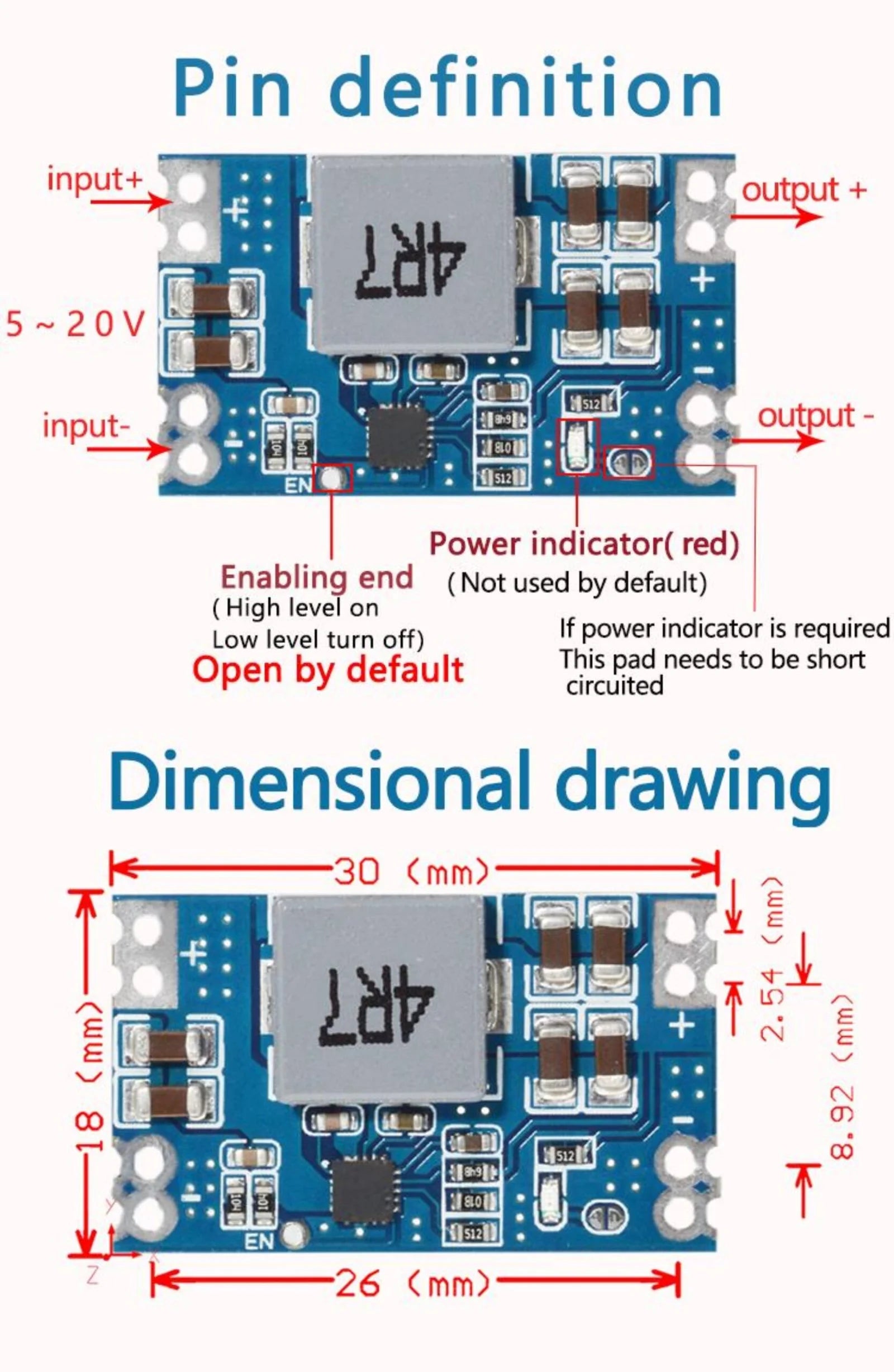

Module size: 29 x 18 x 5.4mm
