• Mini Slide Switch SPDT 2.54mm Pitch
1 1

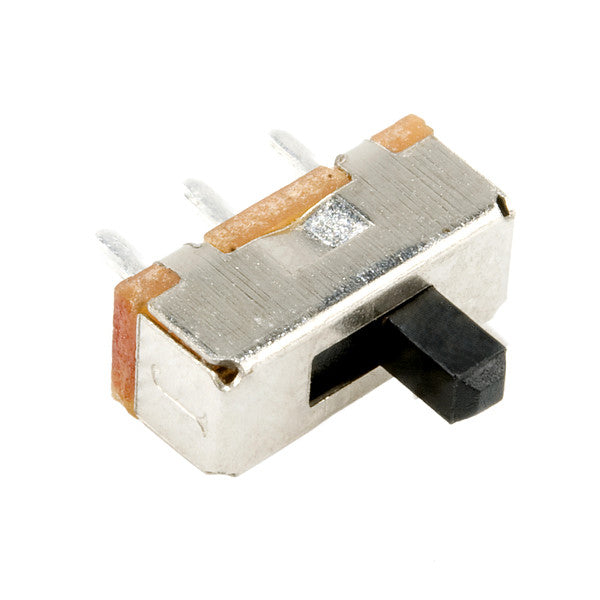

Mini ON OFF PCB Slide Switch SPDT 2.54mm Pitch

Mini ON OFF PCB Slide Switch SPDT 2.54mm Pitch

£0.89
£0.89
Sale Sold out

Order Code: 33-116

Delivery calculated at checkout.

36 in stock
View full details

Product Description

Miniature slide switches are excellent for projects that need a very small switch Suitable for use in breadboards, stripboards and PCBs. An ideal replacement for use within the range of MitchElectronics kits. This switch has 3 pin contacts, measures 10.89mm from pins to top of switch, with a body measuring 8.71mm x 3.89mm

Specifications
Switch Type:SPDT
Common Pin:Middle
Angle:Straight
Maximum Voltage:50V
Operating Temperature Range: 0˚C to +55˚C
Pin Spacing:2.54mm
