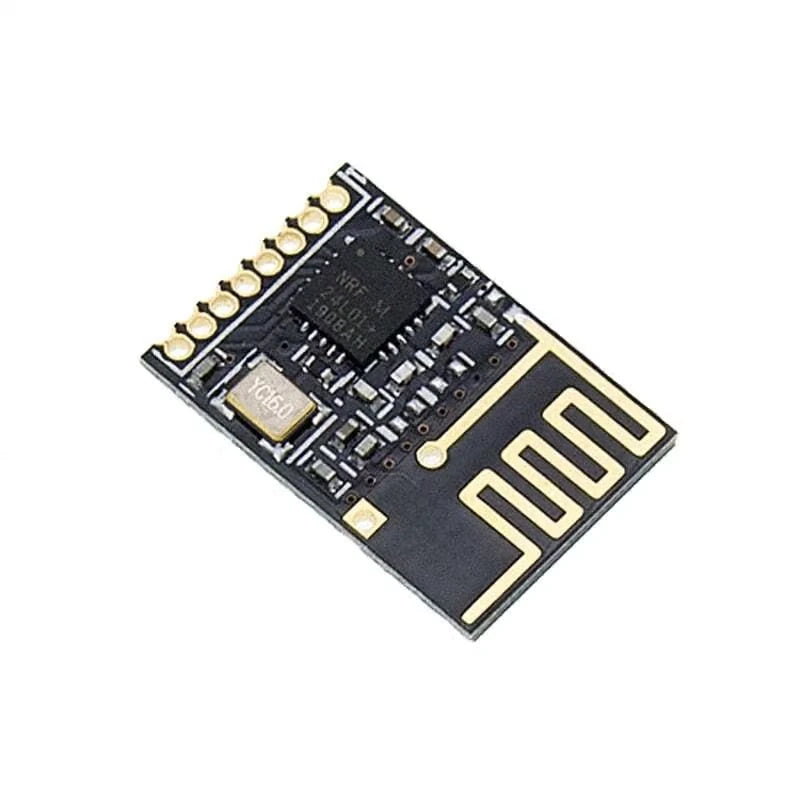

Mini NRF24L01 SMD Wireless Module 2.4GHz Radio Transceiver

NRF24L01 Wireless Module 2.4GHz Radio Transceiver Features:

• Global Reach: Operates in the 2.4-2.5GHz worldwide ISM band.
• Extended Range: Covers distances up to 100 meters with a provision to support data reception across six channels.
• Efficient Power Management: Runs on a low operating voltage of 1.9-3.6V and boasts a rapid data rate of 2Mbps.
• Compact Design: No external antennas needed with its built-in 2.4GHz antenna. Dimensions? A mere 15 x 29mm.
• Smart Power Usage: With a consumption of just 14mA, it integrates high-speed RF protocols such as auto-resending of lost packets and auto-generation of acknowledge signals.
• Versatile SPI Interface: Easily compatible with both microcontroller SPI ports and I/O ports, ensuring compatibility with a range of low-speed microprocessors.
• Automated Features:
  • Auto-retransmission for lost packets.
  • Automatic valid data packet acknowledgment.
  • Fixed frequency detection without extra programming and in-built carrier detection.
• Enhanced Error Handling: Comes with built-in hardware CRC error detection, packet transmission error counter, and carrier detection suited for frequency hopping.
• Flexible Addressing: Set up to six receiving channel addresses and pick from open receive channels.
• User-friendly Integration: Standard pin Dip2.54MM spacing interfaces are ideal for embedded applications.

The SPI interface can take advantage of the microcontroller SPI port or microcontroller I/O port to simulate the internal FIFO, making it easy to use with a variety of low-speed microprocessor interfaces and low-cost microcontrollers.
