Microswitch with Short Arm 16A SPDT

Microswitch with Short Arm 16A SPDT

£2.99
£2.99
Sale Sold out

Order Code: 14-136

Delivery calculated at checkout.

4 in stock
View full details

Product Description

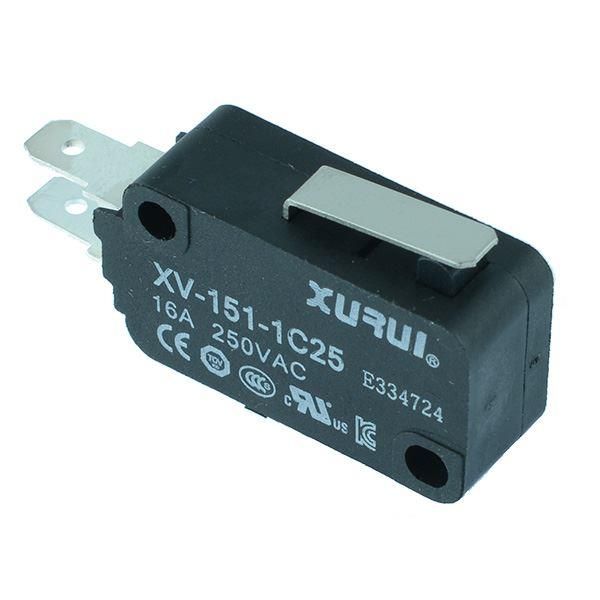

Standard size V3 microswitch featuring a short lever actuator and SPDT contacts. The switch is connected using the 4.8mm terminals and is suitable for a wide range of applications due to its compact size and reliability.

Specifications
ConfigurationSPDT
ContactsNO/NC
Maximum Voltage & Current16A 250VAC
Operating Force200g
Release force50g
Click Cycles100,000
IP ProtectionIP40
Operating Temperature-25°C to +80°C
Terminals4.8mm
