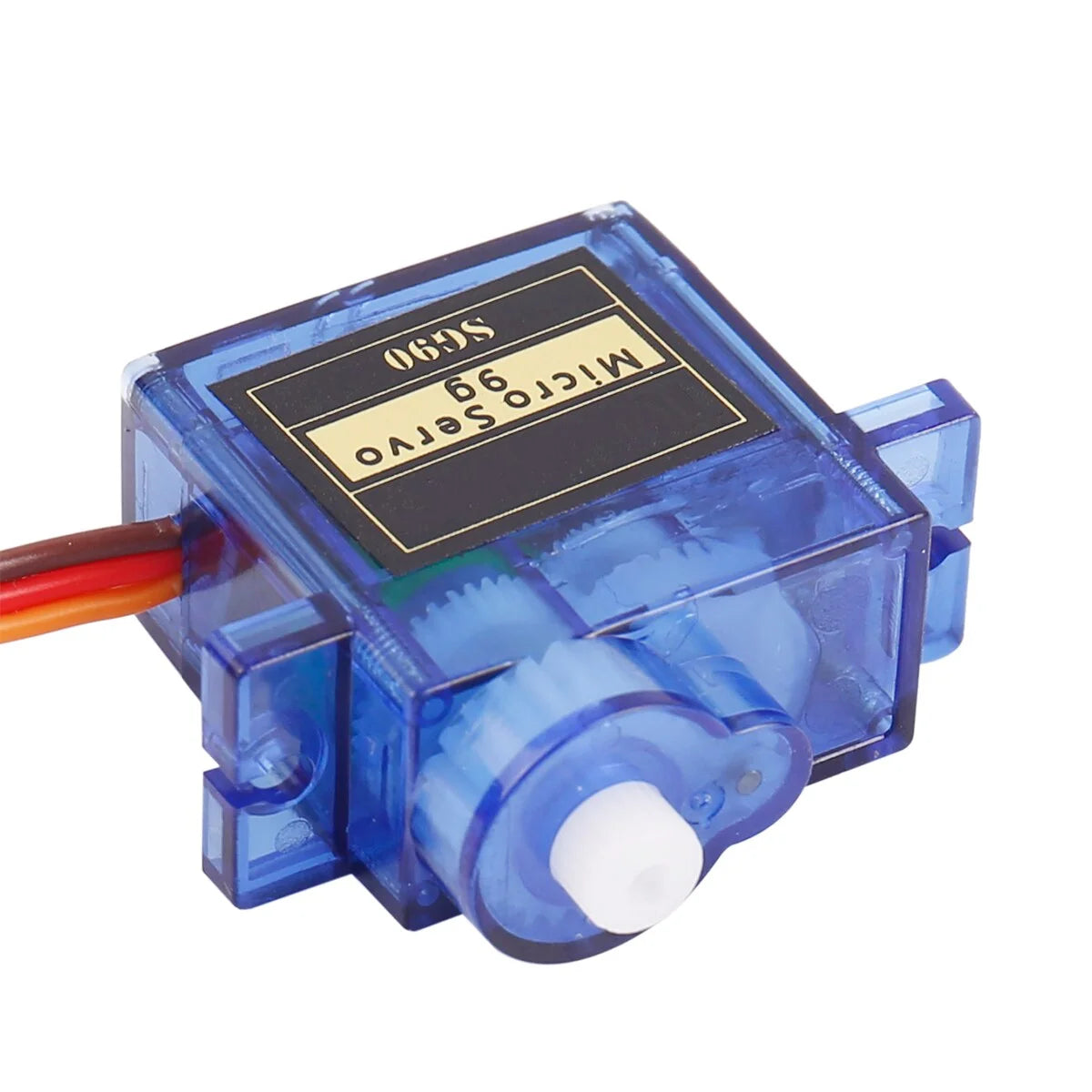

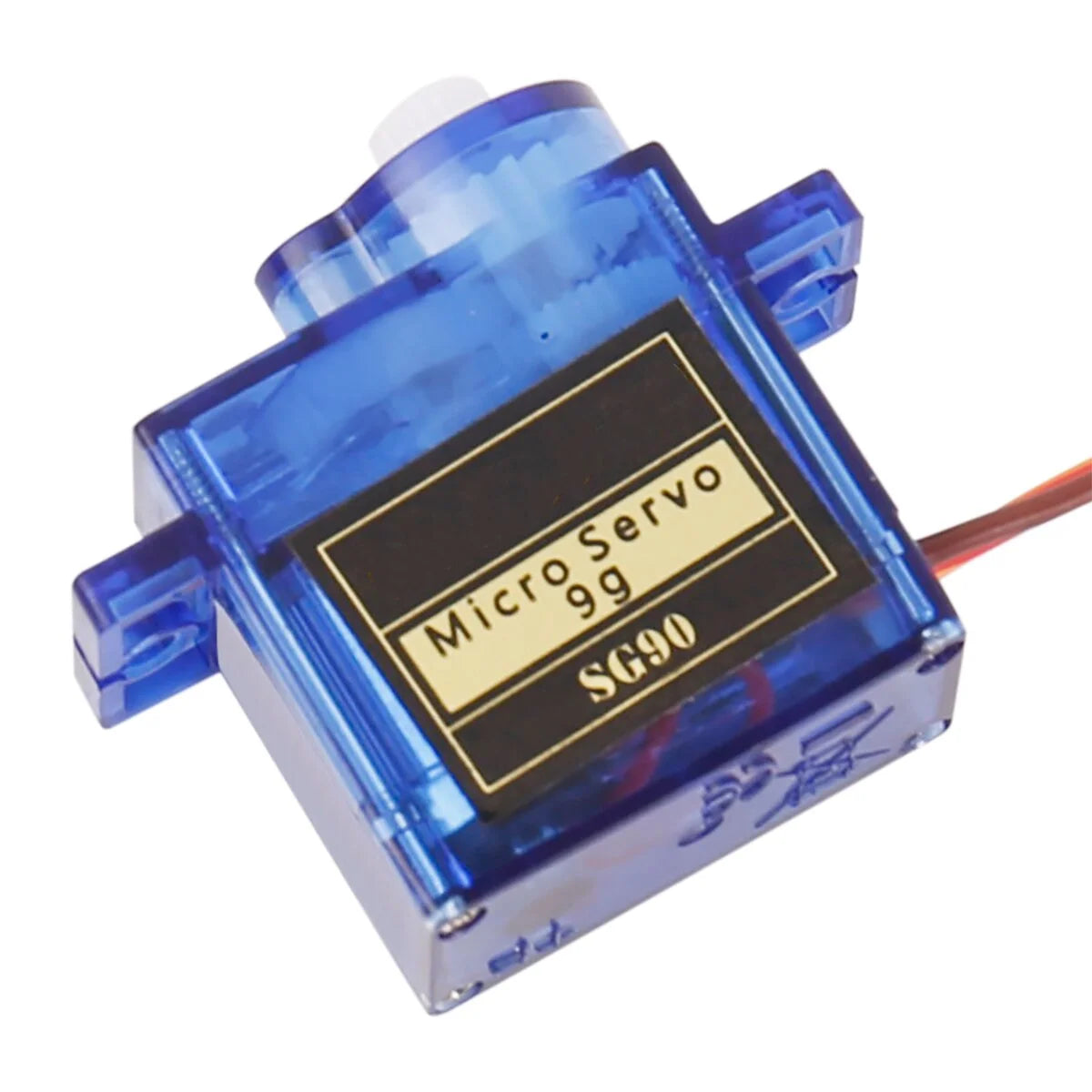

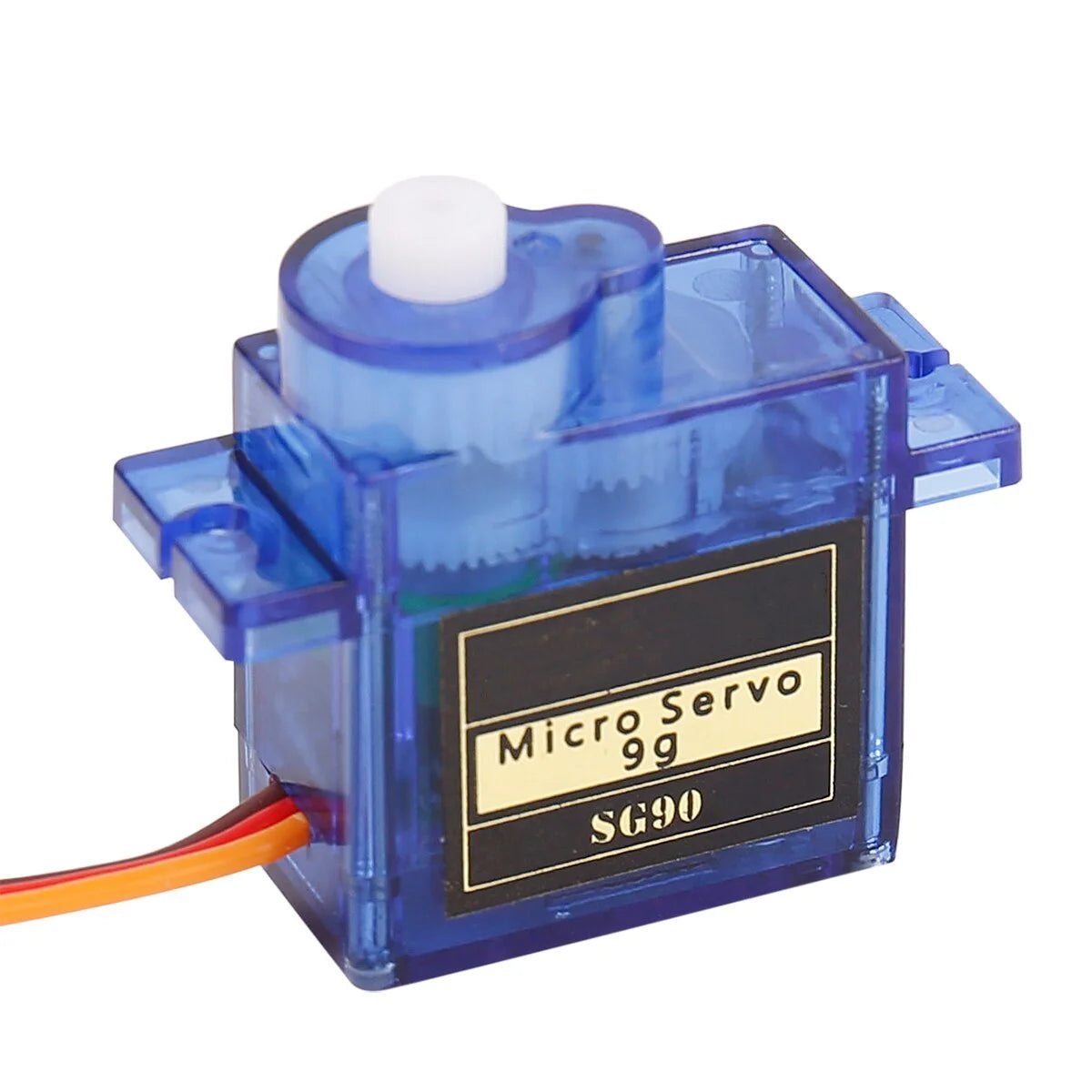

SG90 Micro Servo Motor

This compact and powerful servo motor is designed to meet the diverse needs of hobbyists, DIY enthusiasts, and professionals alike. Whether you’re into robotics, model control, or industrial automation, the SG90 has got you
covered.

SG90 Servo Motor’s Key Features:
180-Degree Rotation: The SG90 can rotate approximately 180 degrees, offering 90-degree movement in each direction.

High Output Power: Despite its small size, this servo motor boasts high output power, making it suitable for a range of applications.

Metal Gears: Equipped with metal gears and gear mandrels, the SG90 offers a stronger force-bearing capacity, ensuring durability and reduced
deformation.

Lightweight Design: Weighing in at just 9 grams, the SG90 is incredibly lightweight, making it perfect for projects where weight is a concern.

Optimal Operating Voltage: The SG90 typically operates at +5V, with a torque of 2.5kg/cm and an impressive operating speed of 0.1s/60°.

Versatile Compatibility: From Robot Arms to Servo Door Lock Controls, the SG90 is compatible with a multitude of projects.

Arduino-Friendly: For Arduino enthusiasts, the SG90 is easy to integrate. Simply connect the VCC (red wire) to 5V, the SIG (yellow/orange) to D8, and the GND (black/brown) to GND.

Specifications of SG90 Servo Motor:
Colour: Blue
Operating Speed (4.8V no load): 0.12sec/60 degrees
Stall Torque: 1.2kg / 42.3oz(4.8V); 1.6 kg / 56.4oz (6.0V)
Operating Voltage: 4.8V~6V
Dead Band Width: 7usc
Dimensions: 2.3 x 1.22 x 2.9cm
Weight: 9g
Connector Wire Length: 25cm

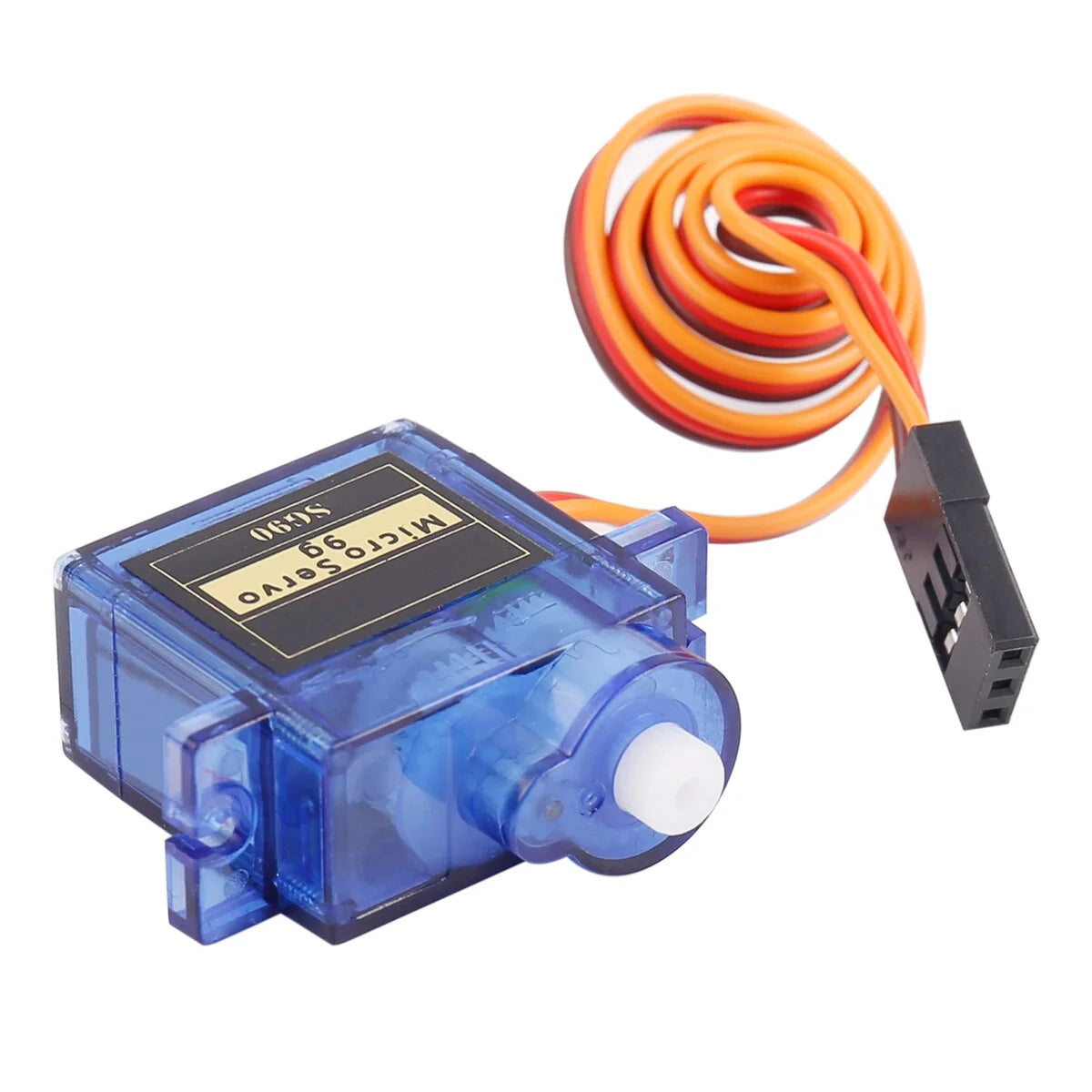

Wiring Guide:
Red: Battery Positive
Brown: Battery Negative
Orange: Signal

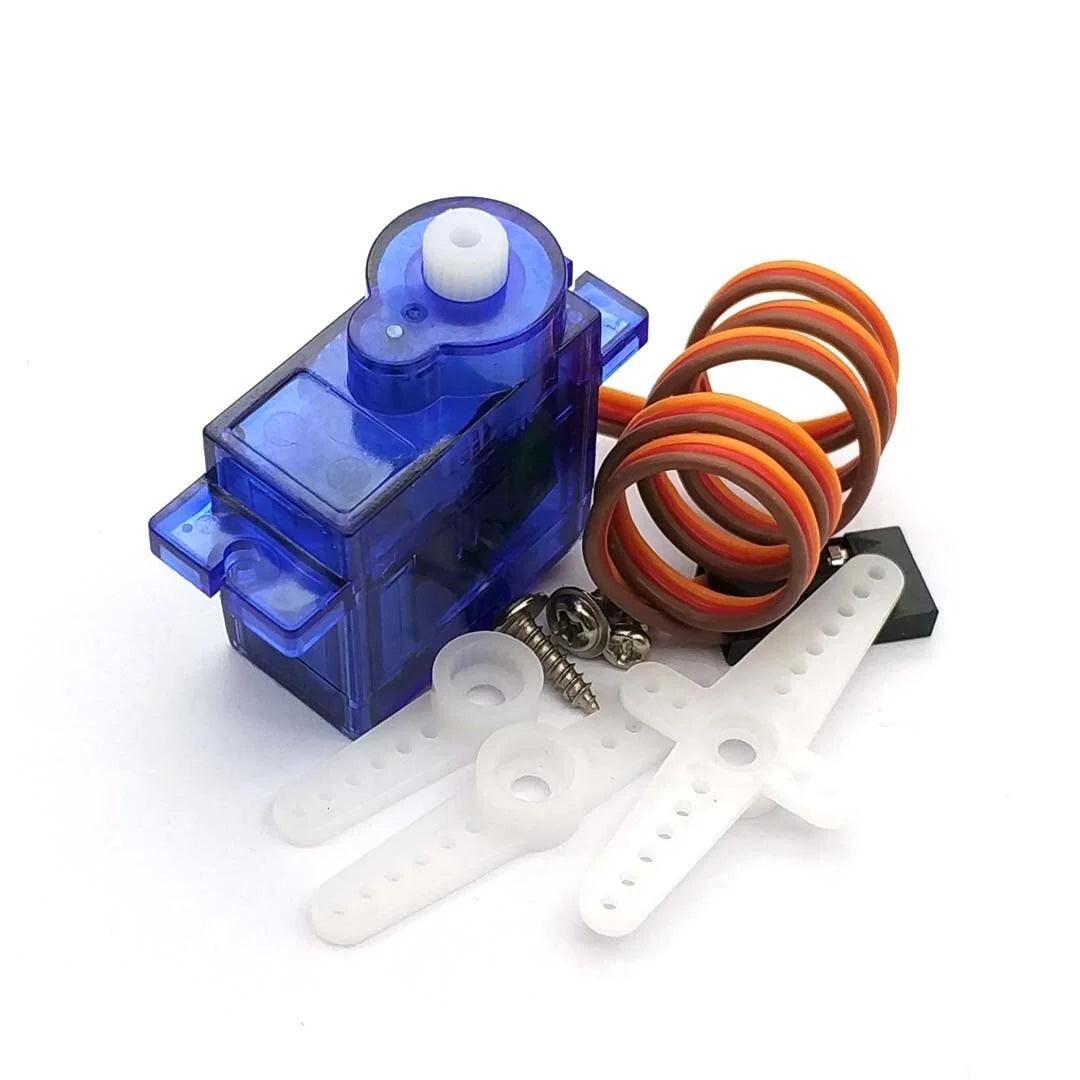

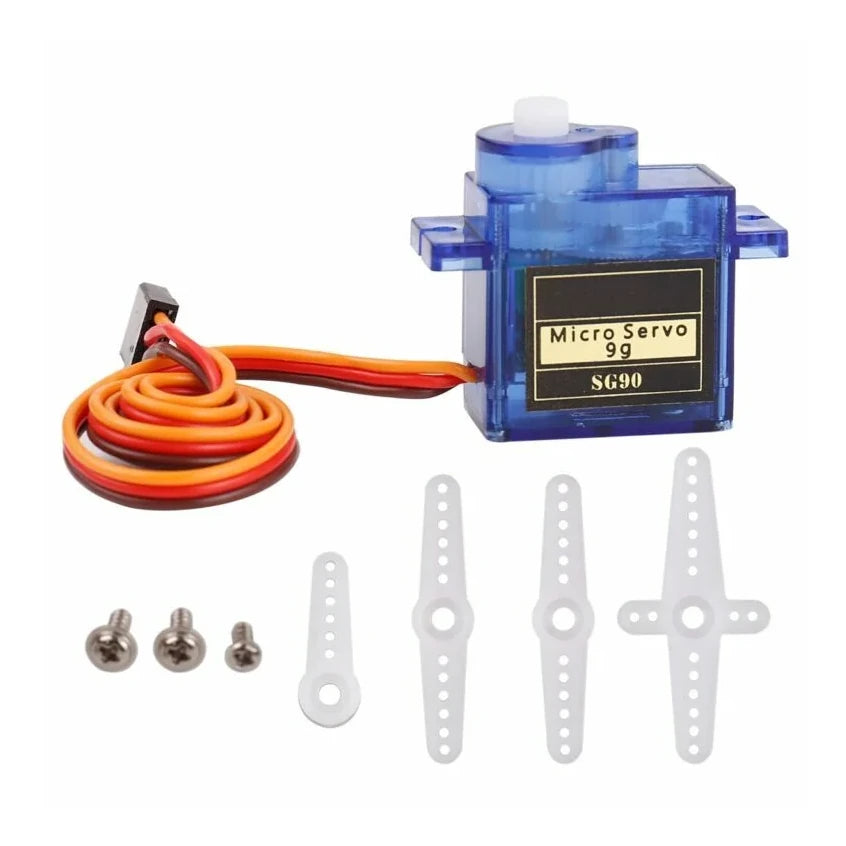

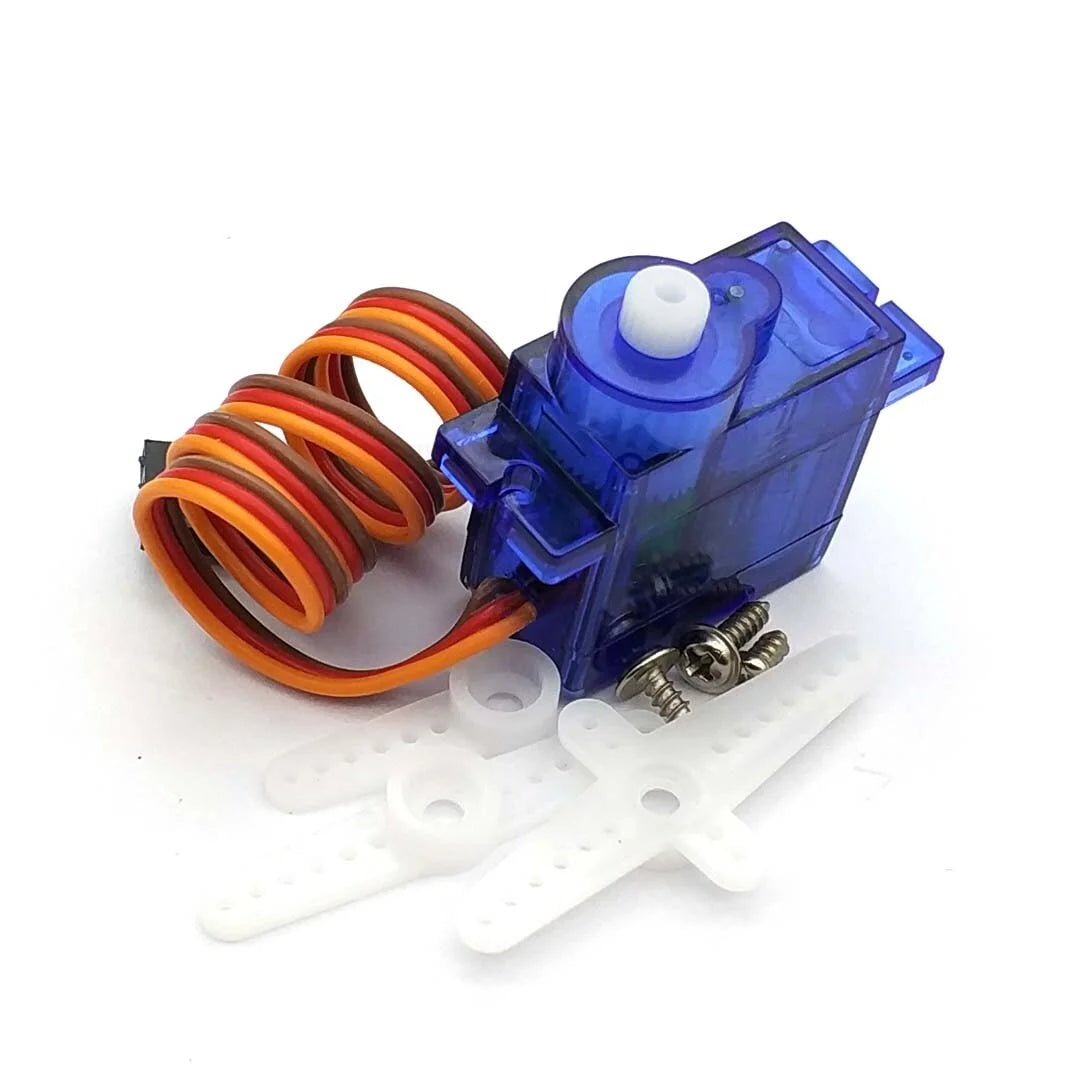

Package Contents:
1 x SG90 Gear Micro Servo
1 x 25cm wire
3 x Servo Horns
3 x Screws
