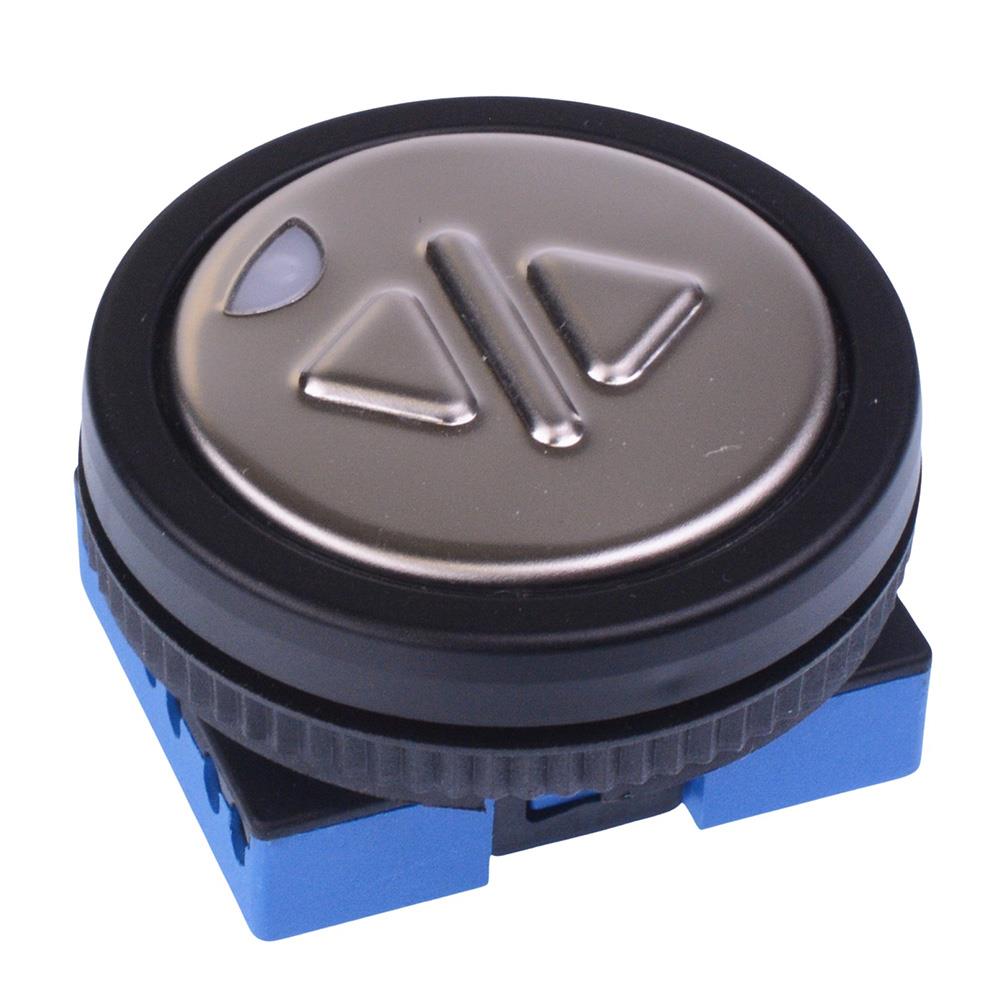

LPI5112B1K21714 APEM Open Door Blue 12V illuminated Large Actuator Push Button Switch IP53

The LPI5112B1K21714 is a tactile push button switch with a large actuator manufactured by APEM, featuring LED dot illumination and low behind panel depth. The switch features the largest actuator in the whole of the APEM range and complies with the EN81-70 standard making it suitable for disabled persons to access lifts and buildings more easily.

Blue dot LED illumination

12V illumination voltage

35mm diameter ergonomic actuator

Low behind panel depth (21mm max)

Tactile feedback

Very long life

Rating: 5A 12VDC

Momentary NO/NC contacts

Protection level: IP53

Panel thickness: 1-4mm

Wire size: 16-28AWG

Operating force: 2.5-5N

Dimensions: 44 x 26.3mm (diameter x depth)
