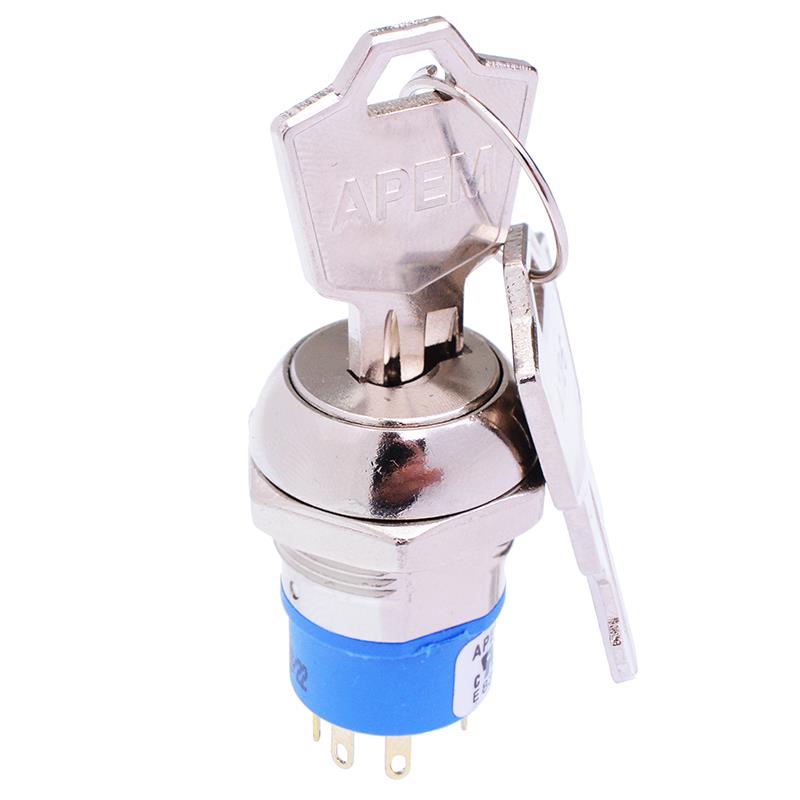

LK5BNB126N3 On-(On) 2 Way Momentary 19mm Key Switch DPDT 4A APEM

The LK5BNB126N3 is a high quality key operated switch from the LK series manufactured by APEM. The switch features DPDT contacts and 2 positions with key withdrawal in position 1. The switch has a nickel plated finish and is suitable for 19mm panel cut-out applications requiring a reliable switching solution.

2 positions

Momentary switching in position 2

DPDT contacts

Nickel plated finish

Key withdrawal in position 1

Panel cut-out: 19mm

Indexing: 45°

Contact rating: 4A at 125 VAC or 28VDC, 2A at 250 VAC

Mechanical and electrical life: 6000 cycles at full load

Dimensions: 28.8 x 22mm (length x diameter)
