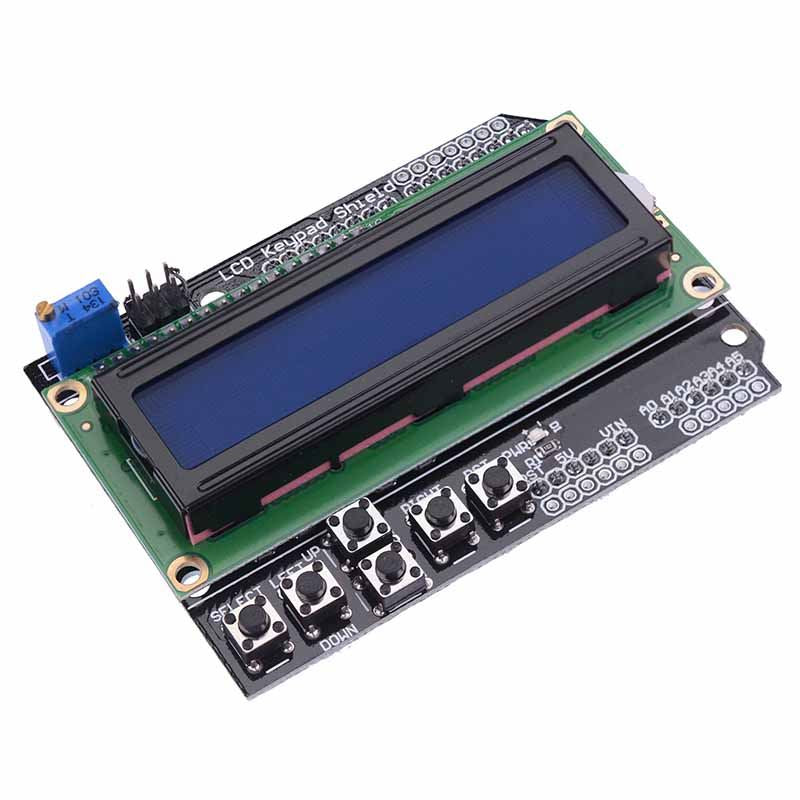

LCD Keypad 1602 16x2 Display Shield for Arduino UNO or Mega 2560

Blue 16 x 2 LCD display module shield featuring a keypad, adjustable contrast and backlight. The module sits on top of the Arduino UNO or Mega 2560 as a shield, or it can be connected using the headers.
Analog pin 0 is used to read push button data, pins 4, 5, 6, 7, 8, 9, 10 are used to interface with the LCD.

4 directional buttons, 1 select button, 1 reset button

16 x 2 display

Chip operating voltage: 4.5-5.5V

Operating current: 2.0mA

Dimensions: 80 x 59mm

Pinout:

Analog 0: Button Control

Digital 4: DB4

Digital 5: DB5

Digital 6: DB6

Digital 7: DB7

Digital 8: RS (Data or Signal Display Selection)

Digital 9: Enable

Digital 10: Backlight Control
