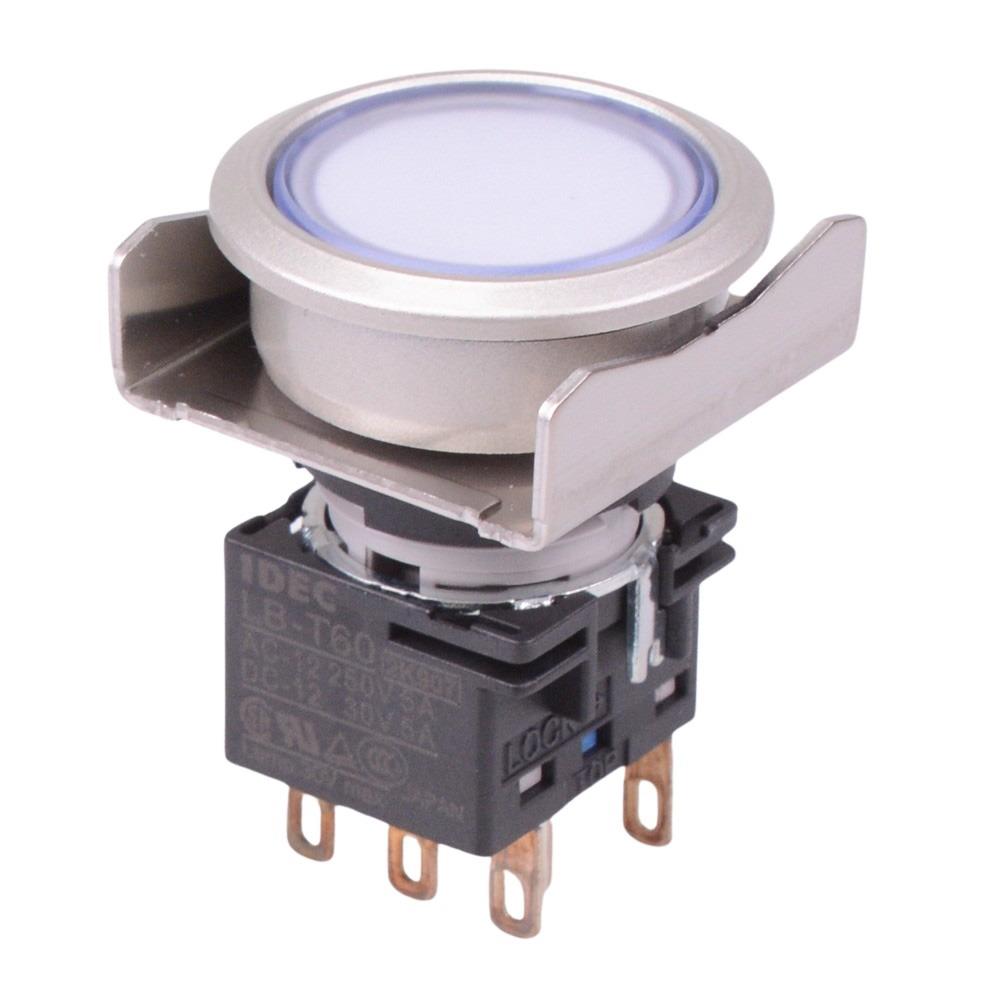

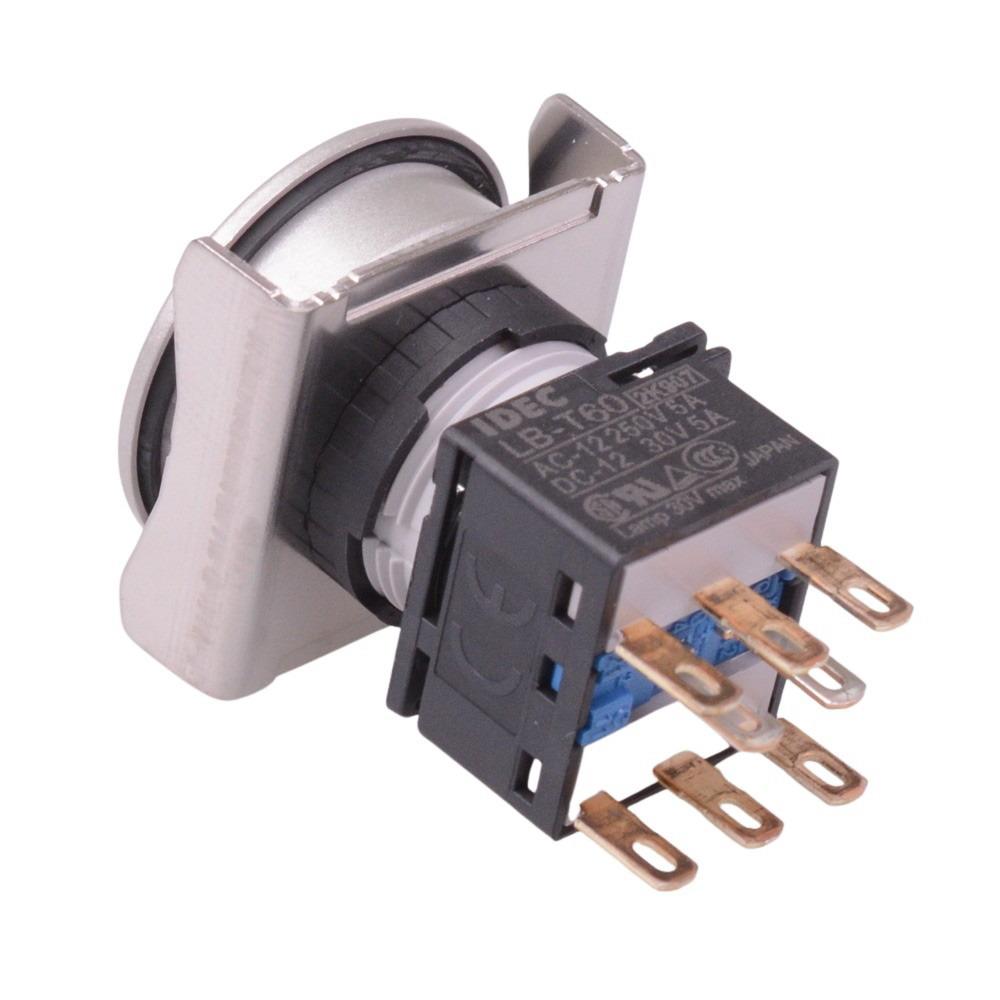

LBW6ML-M1RT64PW IDEC 24V White LED Metallic Round Momentary Flush 22mm Push Button Switch DPDT

The LBW6ML-M1RT64PW is a flush mount push button switch featuring a smooth surface designed for use with busy control panels. The switch features a compact space-saving design allowing a reduced panel size while enhancing its functionality and controllability. The smooth surface design prevents particle and debris from accumulating and make regular cleaning a breeze. The LBW series is designed for applications including medical devices, food and beverage processing equipment, semi-conductor equipment, demo equipment, home automation and robotic control systems where a hygienic surface is required.

Round black bezel

Momentary operation

Flush operator

Silver DPDT contacts

Pure white LED ring illumination

24VAC/DC LED operating voltage

Solder/tab 2.8x0.5mm terminals

Rating: 250V 5A

Panel cut-out: 22.3mm

Panel thickness: 0.5-3.2mm

Dimensions: 36.9 x 26mm (height x diameter)
