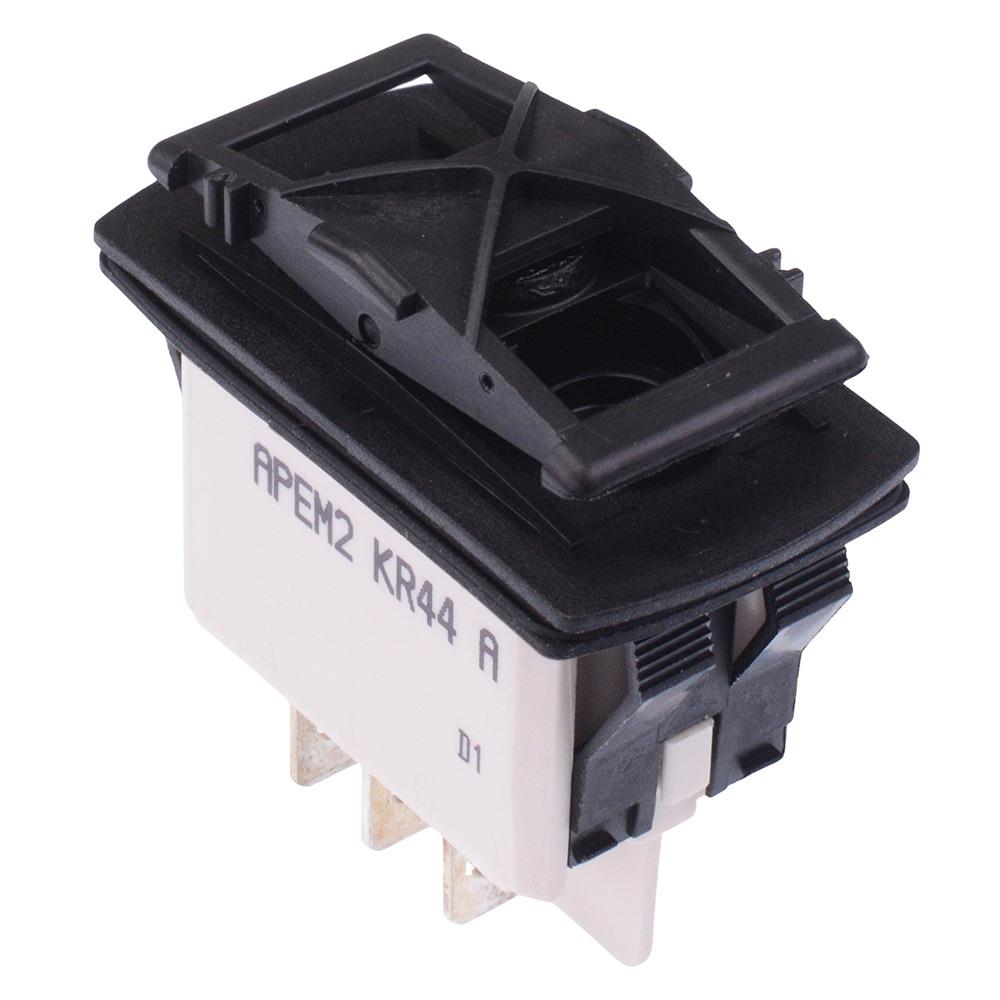

KR44CAKXXG APEM On-On-On Automotive Rocker Switch DPDT IP68

The KR44CAKXXG is an attractive rugged automotive rocker switch from the KR series by APEM, featuring DPDT contacts and On-On-On function. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.

On-On-On DPDT contacts

Solder / quick connect terminals

Silver contacts

Compatible with U2292 and U3152 connectors

Protection rating: IP68

Rating: 10A 24VDC

Panel cut-out: 36.8 x 21.08mm

Panel thickness: 0.8 to 4.6mm
