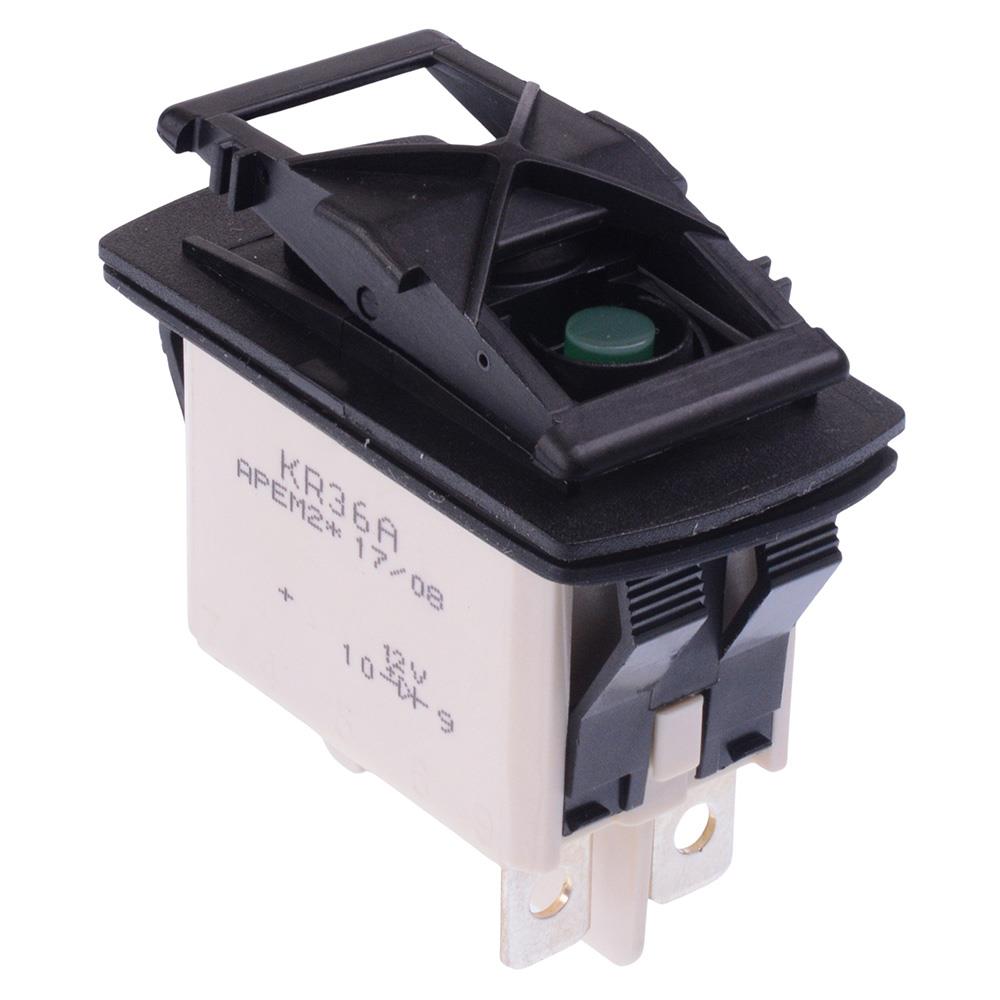

KR36CAKXEG APEM On-On Green LED 12V Automotive Rocker Switch SPDT IP68

The KR36CAKXEG is an attractive rugged automotive rocker switch from the KR series by APEM, green 12V LED illumination. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.

Green LED in 1 position

12V LED voltage

On-On SPDT contacts

Solder / quick connect terminals

Silver contacts

Protection rating: IP68

Rating: 10A 24VDC

Panel cut-out: 36.8 x 21.08mm

Panel thickness: 0.8 to 4.6mm
