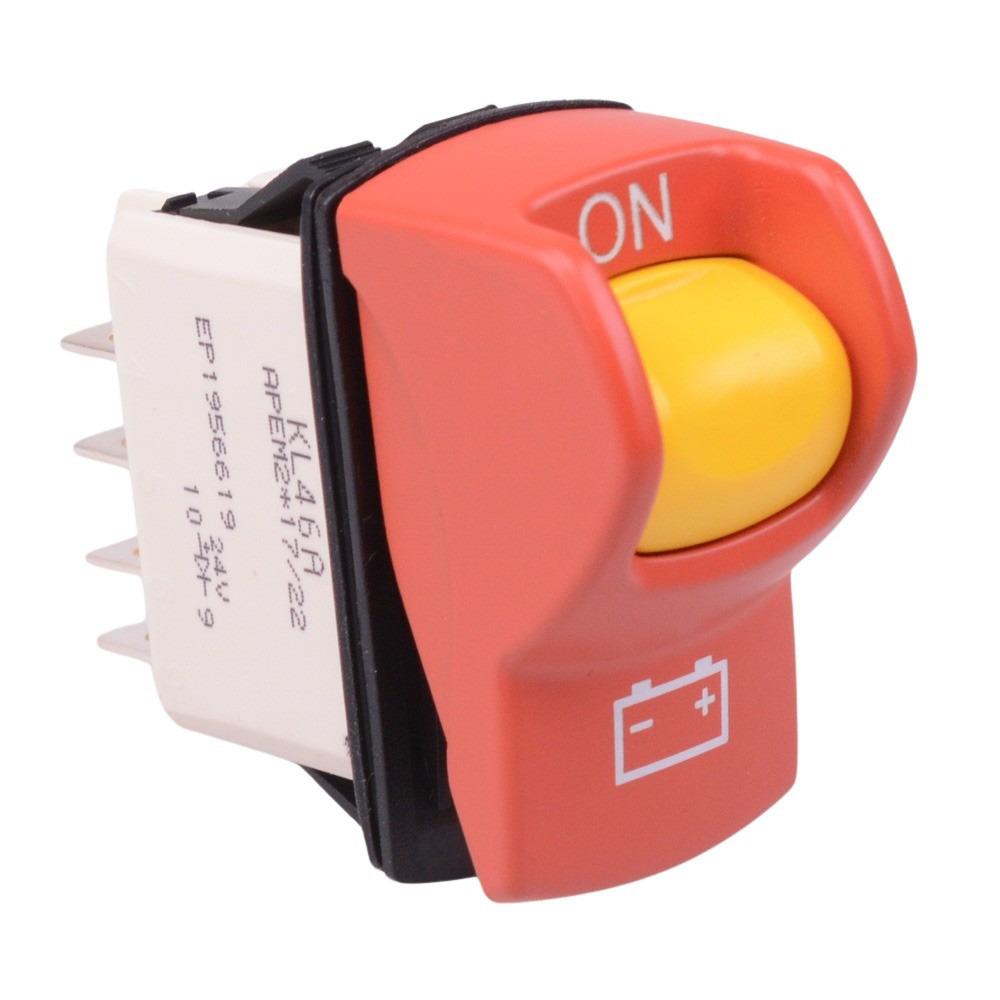

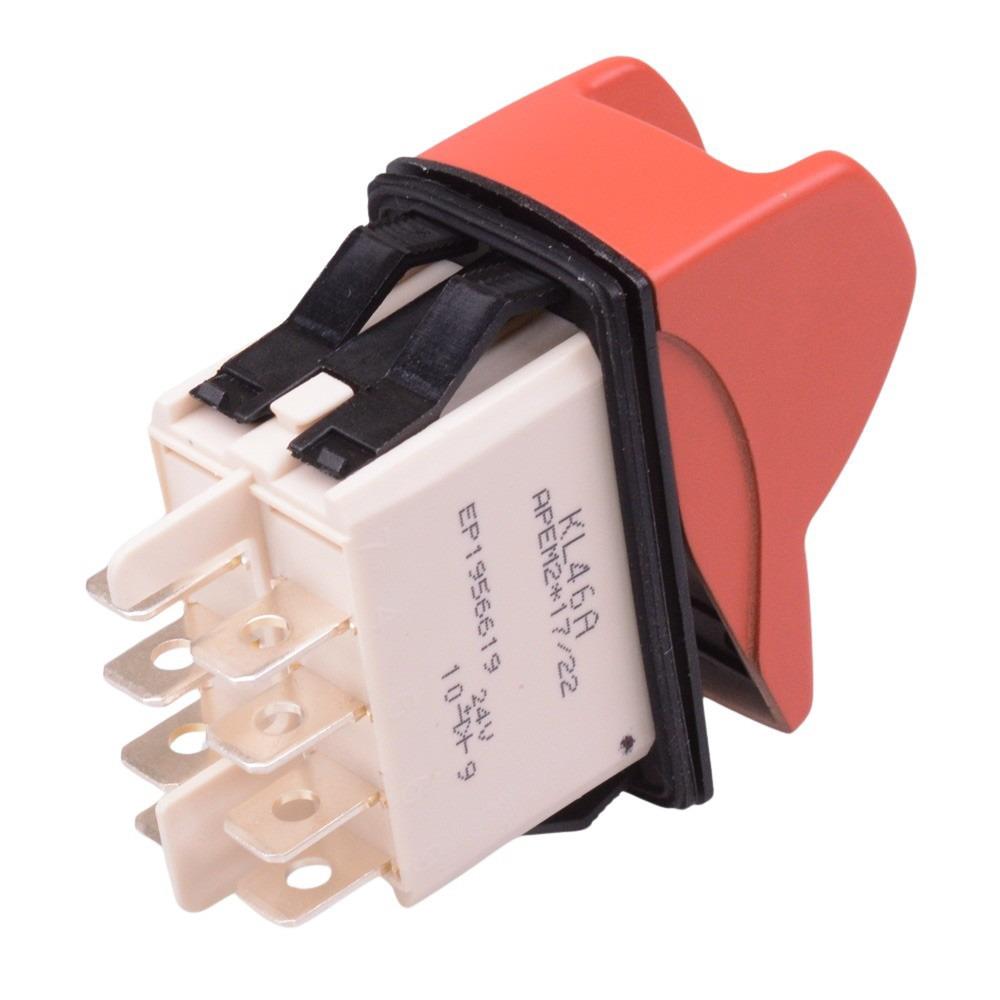

KL46CAKJG265N01AG On-On Red 24V illuminated Locking Rocker Switch Yellow Actuator DPDT IP68

The KL46CAKJG265N01AG is a 24V power rower switch manufactured by APEM, featuring a locking mechanism to prevent against accidental operation. The switch features 24V red illumination and is sealed to IP68, making it suitable for automotive and commercial vehicle applications.

On-On operation

DPDT contacts

IP68 protection rating

One protected position

Red 24V illumination

Quick connect terminals

Rating: 5A 24VDC

Panel cut-out: 36.8 x 21.08mm

Panel thickness: 0.8 to 4.6mm

Compatible with U2292 and U3152 connector
