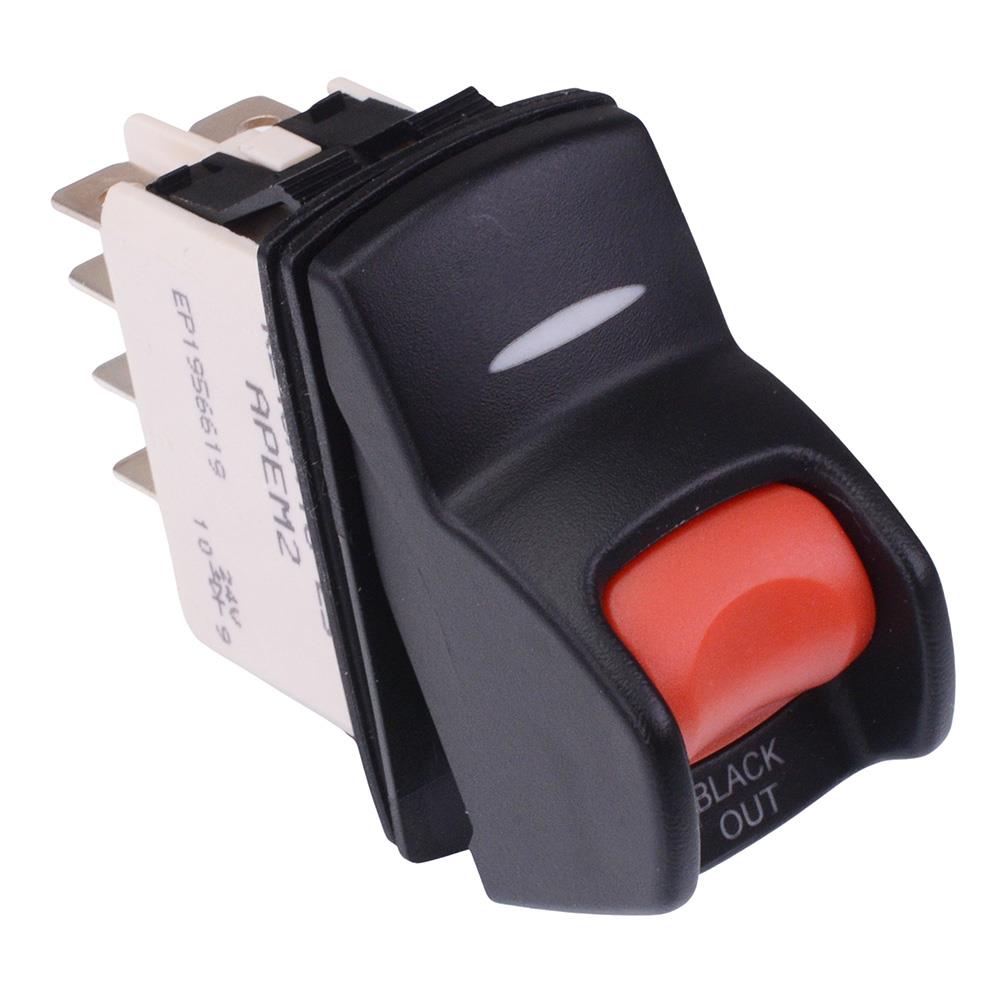

KL46CAKJG226STB64 APEM On-On Red 24V Locking Power Rocker Switch DPDT IP68

The KL46CAKJG226STB64 is a 24V power rower switch manufactured by APEM, featuring a locking mechanism to prevent against accidental operation. The switch features 24V red illumination and is sealed to IP68, making it suitable for automotive and commercial vehicle applications.

Black out symbol

On-On operation

DPDT contacts

Red 24V illumination

IP68 protection rating

One protected position

6.35mm quick connect terminals

Compatible with U2292 and U3152 connector

Rating: 10A 24VDC

Panel cut-out: 36.8 x 21.08mm

Panel thickness: 0.8 to 4.6mm
