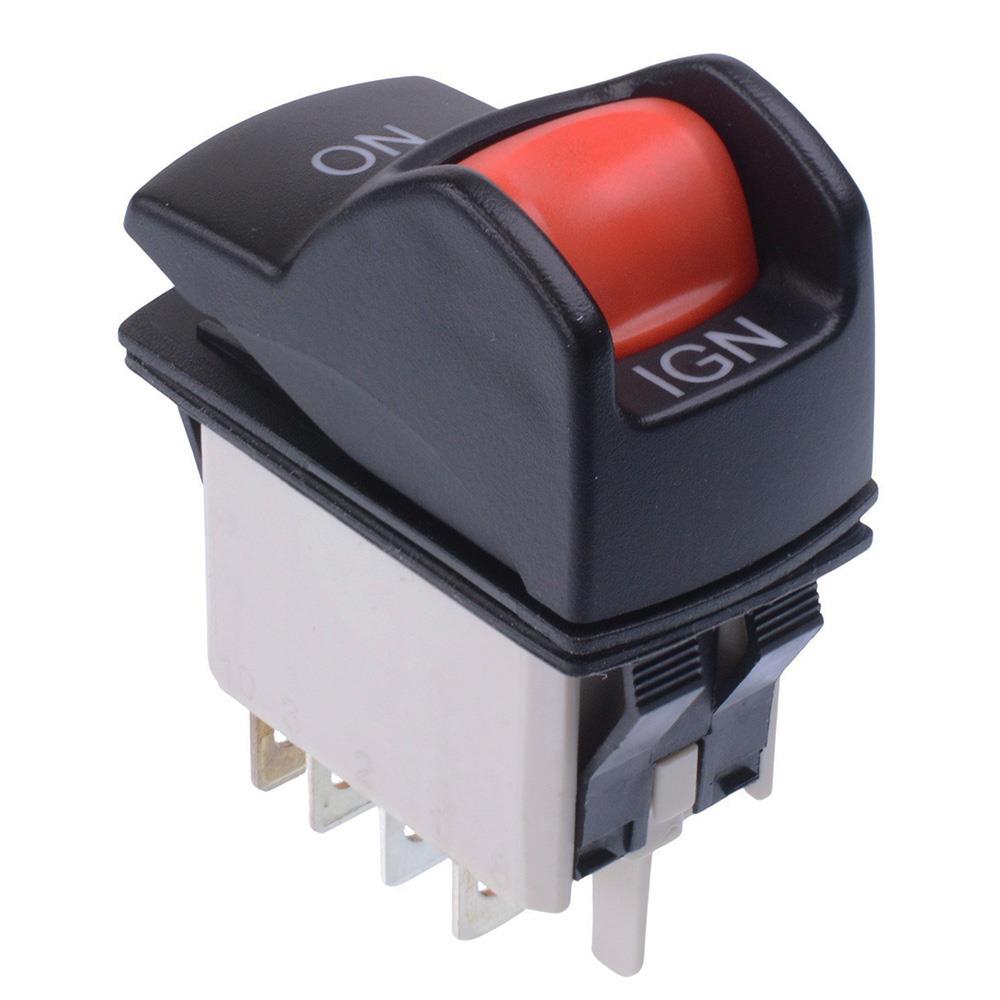

KL46CAKJG226SD501 APEM On-On IGN Red 24V Locking Power Rocker Switch DPDT IP68

The KL46CAKJG226SD501 is a 24V power rower switch manufactured by APEM, featuring a locking mechanism to prevent against accidental operation. The switch features 24V red illumination and is sealed to IP68, making it suitable for automotive and commercial vehicle applications.

Ignition symbol

On-On operation

DPDT contacts

Red 24V illumination

IP68 protection rating

One protected position

6.35mm quick connect terminals

Compatible with U2292 and U3152 connector

Rating: 10A 24VDC

Panel cut-out: 36.8 x 21.08mm

Panel thickness: 0.8 to 4.6mm
