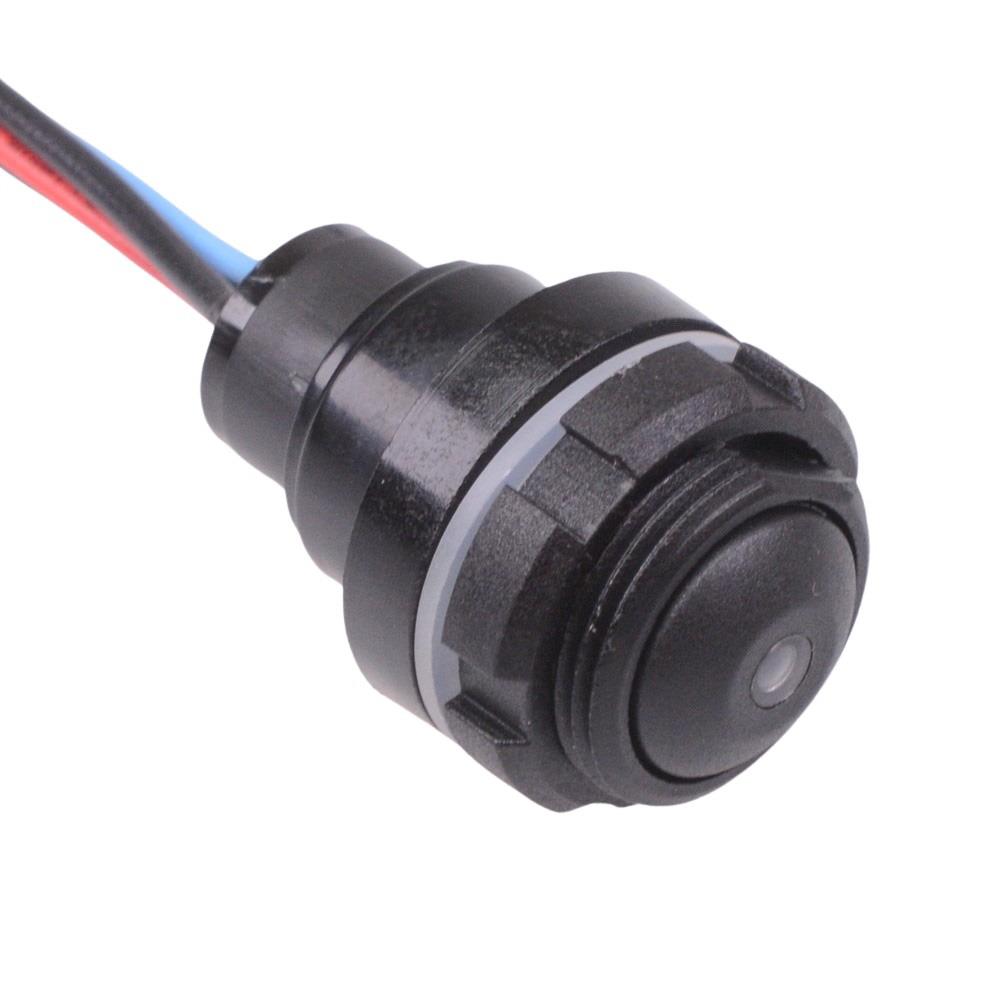

IZPR3F422L0B APEM Blue LED Black 16mm Round Momentary NO Push Button Switch Prewired IP67

The IZPR3F422L0B is an illuminated rear mounting round sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features IP67 protection rating and flying leads. This makes the switch ideal for applications including automotive and marine.

Button colour: black

LED colour: blue

LED forward voltage: 3.2V

LED forward current: 20mA

Panel cut-out: 16.2mm

Contacts: momentary SPST-NO

Gold plated silver contacts

500mm flying leads

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 3mm

Dimensions: 20 x 29.2mm (diameter x height)
