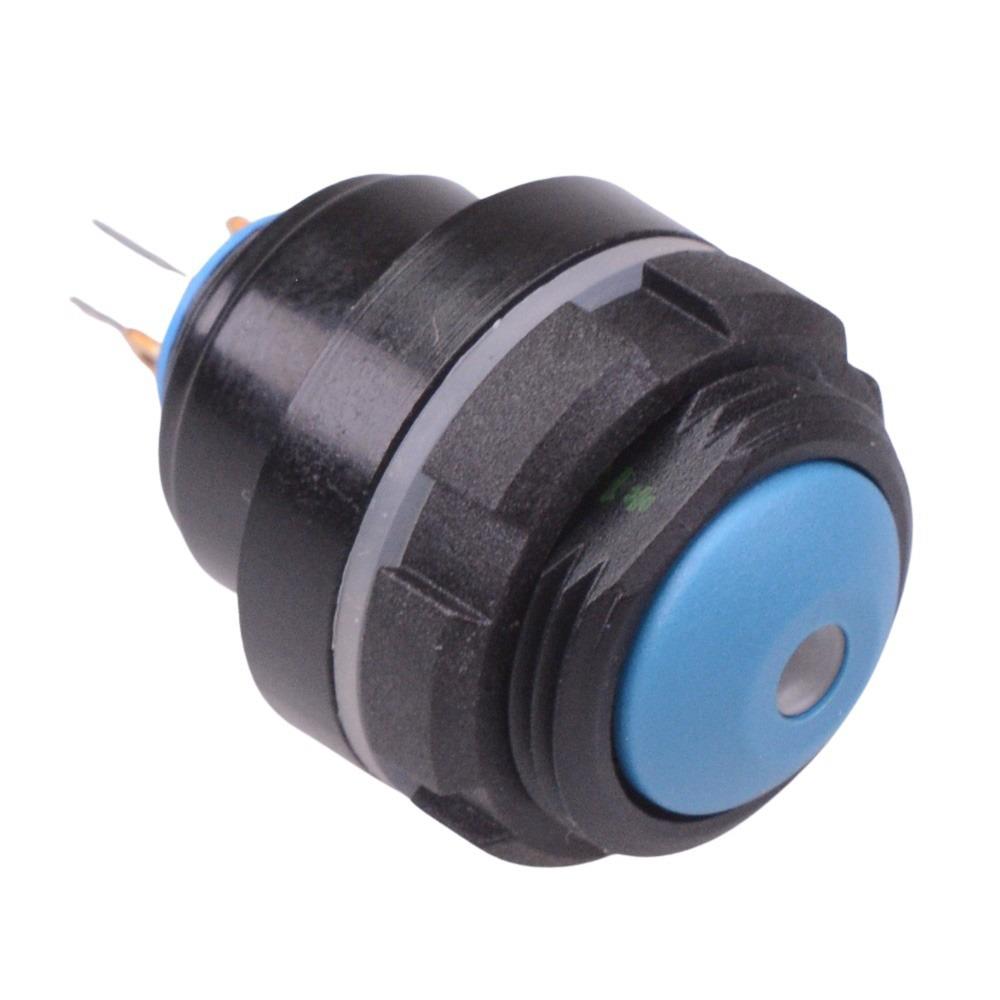

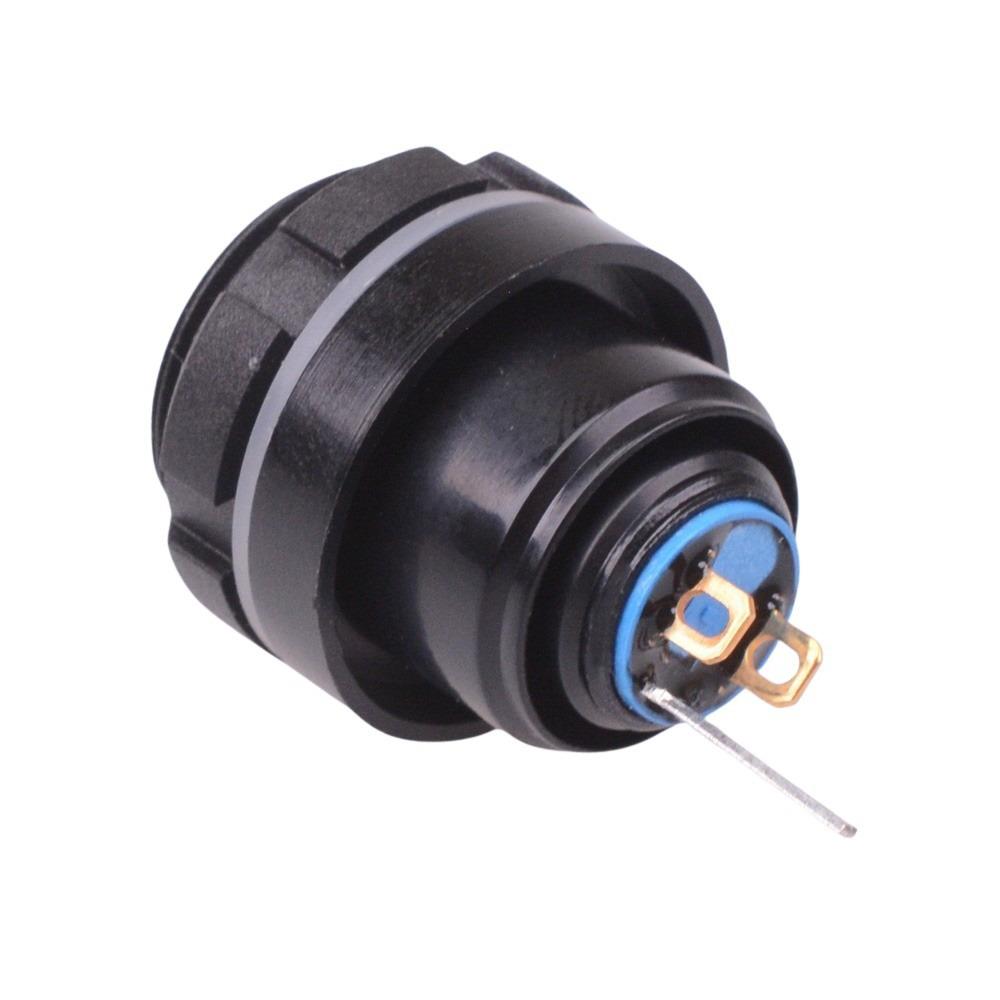

IZPR1S412L0S APEM Red LED Blue 16mm Round Latching Push Button Switch IP67

The IZPR1S412L0S is an illuminated rear mounting round sealed latching push button switch with a 16mm bushing and SPST contacts. The switch features IP67 protection rating and solder lug terminals. This makes the switch ideal for applications including automotive and marine.

Button colour: blue

LED colour: red

LED forward voltage: 1.95V

LED forward current: 20mA

Panel cut-out: 16.2mm

Contacts: momentary SPST

Gold plated silver contacts

Solder lug terminals

Contact rating: 100mA 24VDC

Protection rating: IP67

Maximum panel thickness: 3mm

Dimensions: 20 x 27.9mm (diameter x height)
