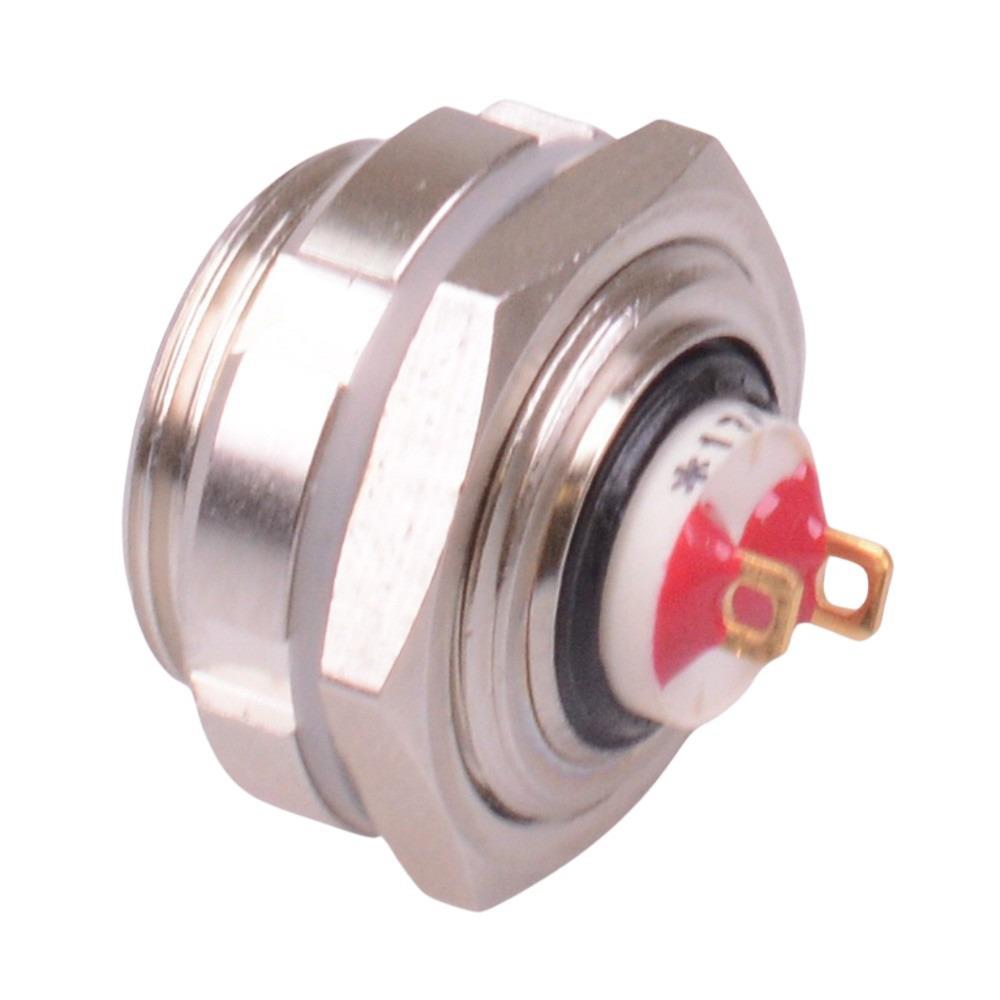

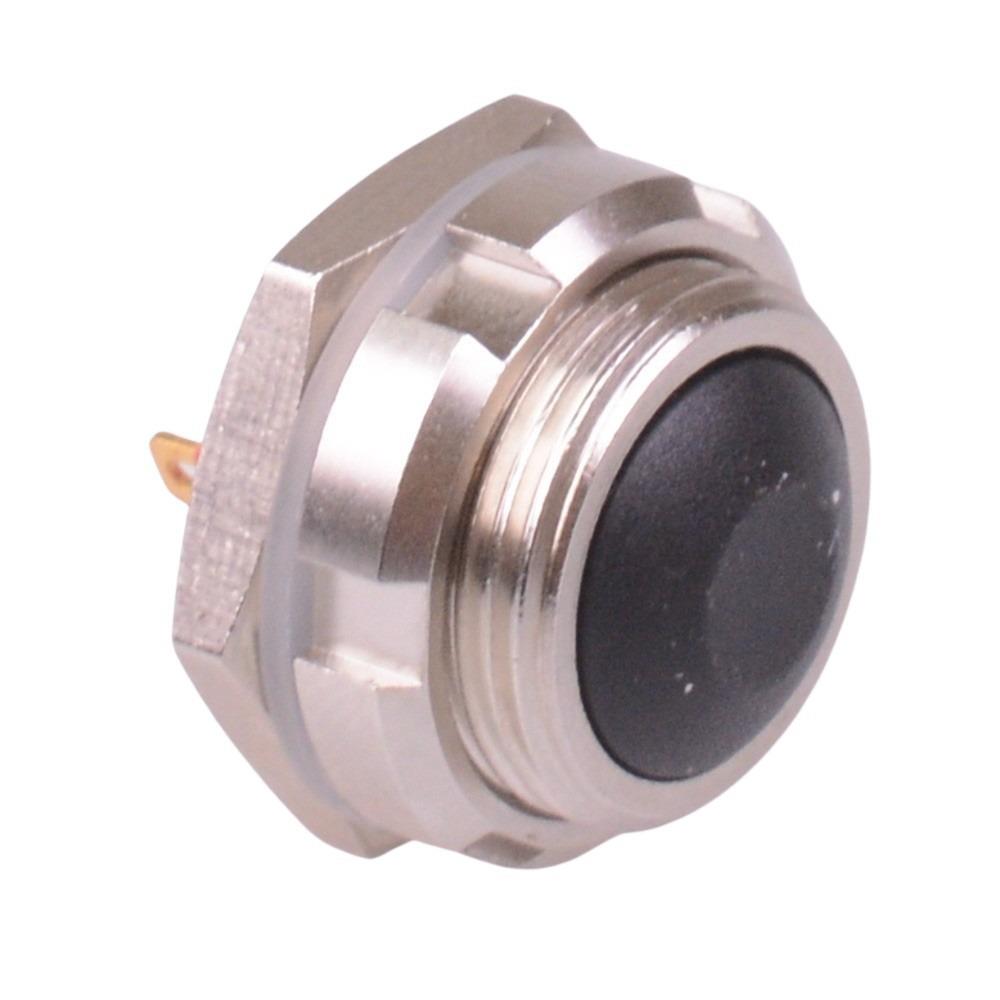

IZMR3S42N APEM Black Metal 16mm Round Momentary NO Push Button Switch IP67

The IZMR3S42N is an illuminated rear mounting round sealed momentary push button switch with a 16mm bushing and SPST normally open contacts. The switch features IP67 protection rating and solder lug terminals. This makes the switch ideal for applications including automotive and marine.

Button colour: black

Panel cut-out: 16.2mm

Contacts: momentary SPST-NO

Gold plated silver contacts

Solder lug terminals

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 3mm

Dimensions: 20 x 25.4mm (diameter x height)
