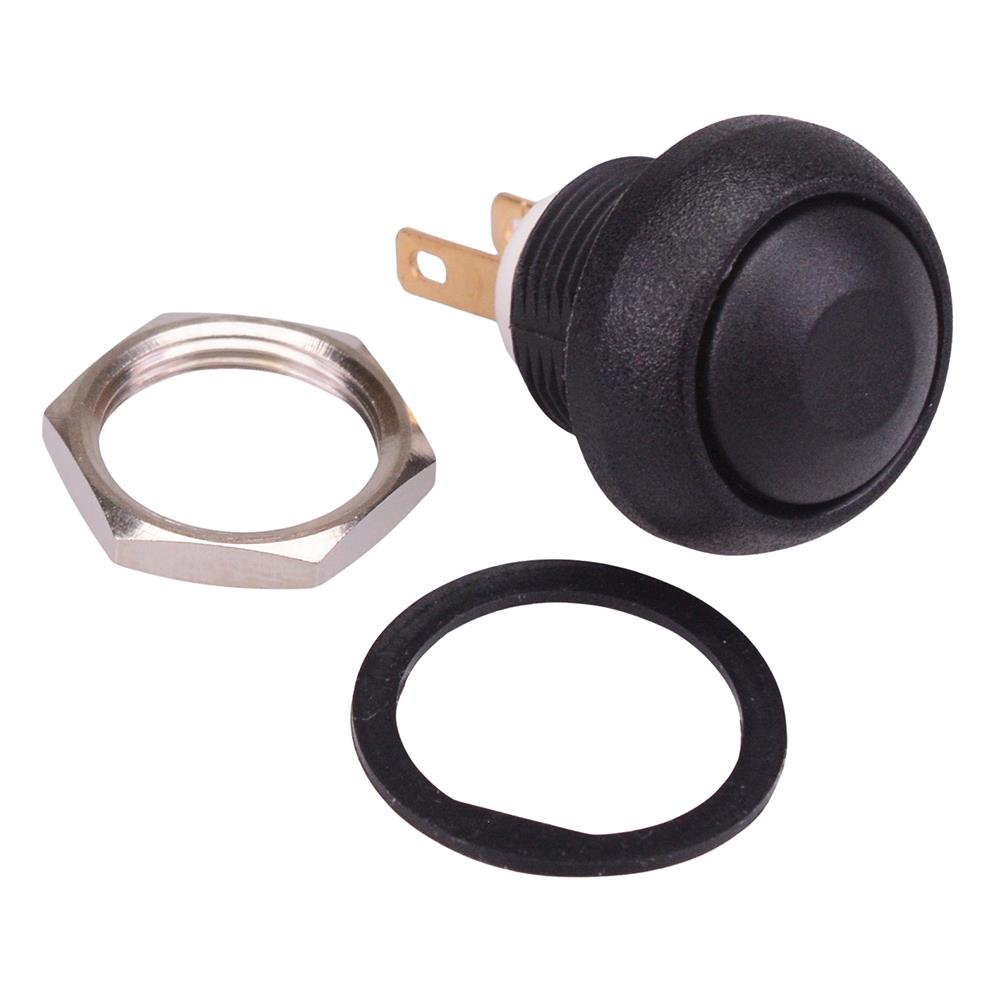

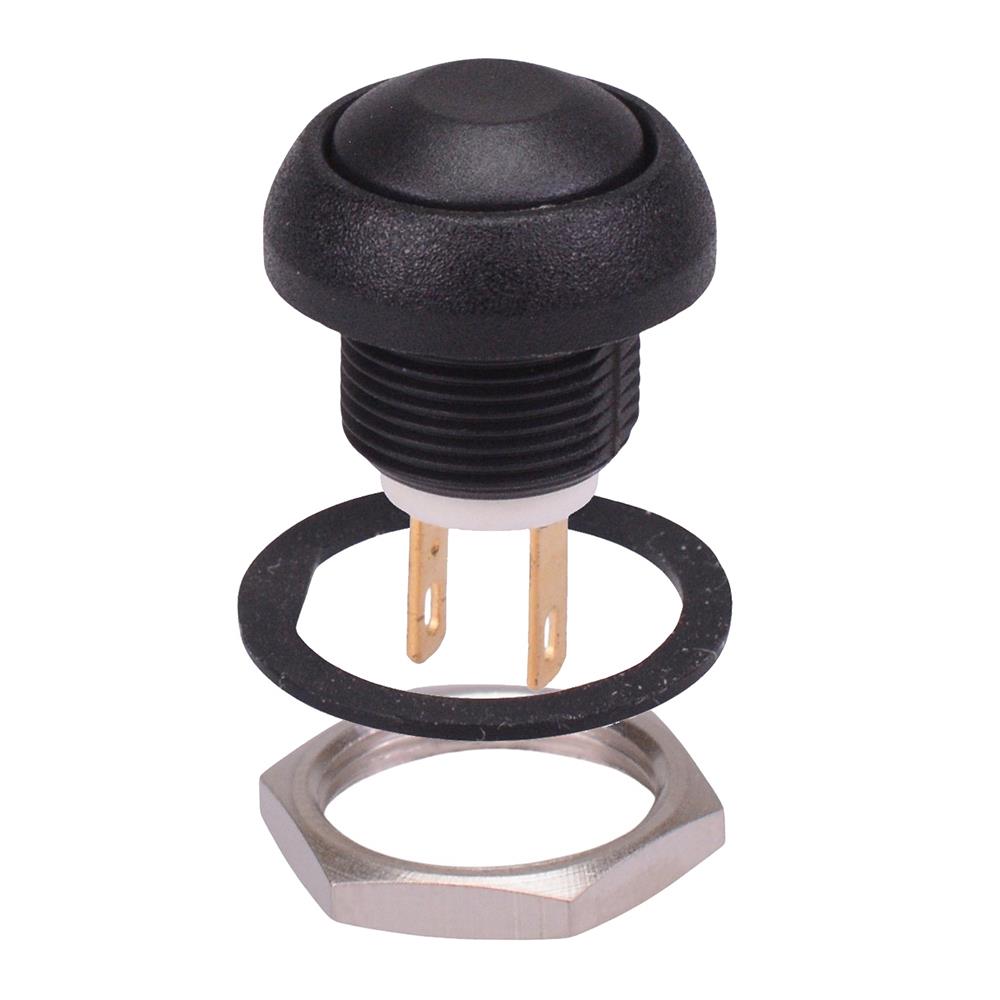

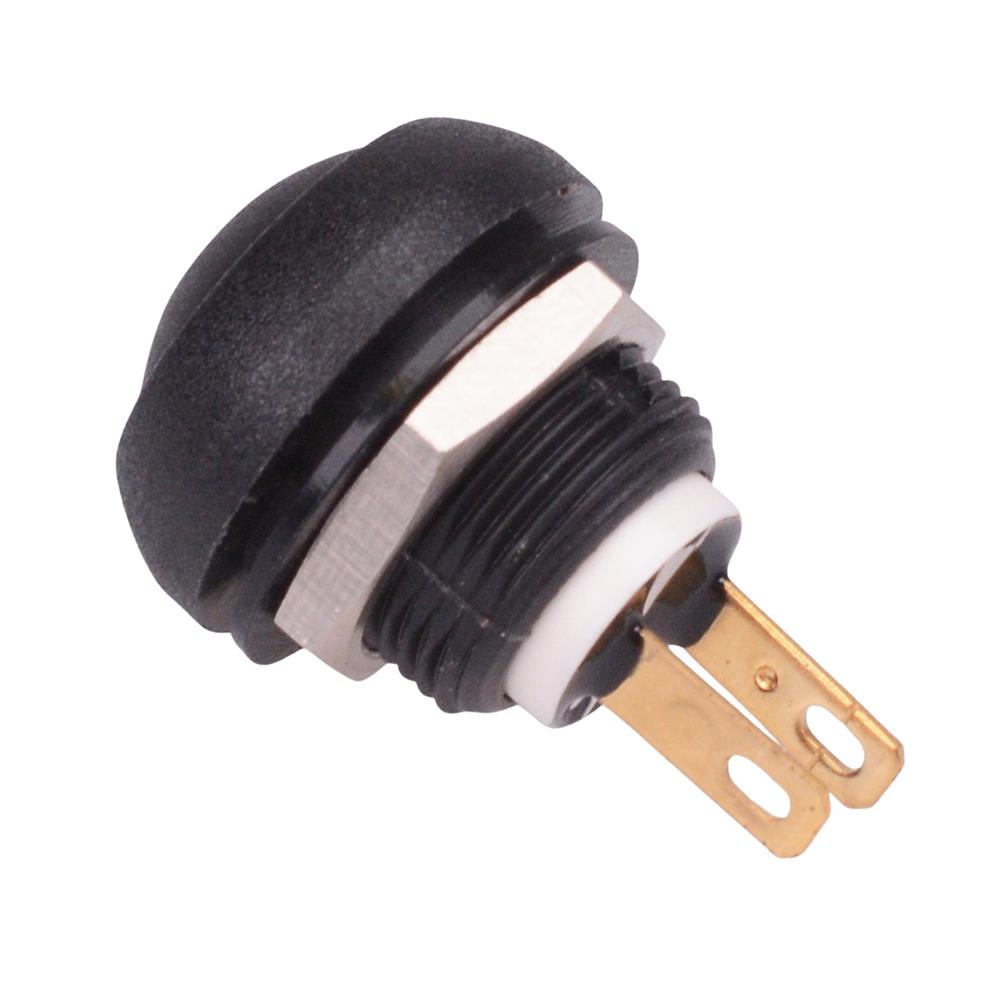

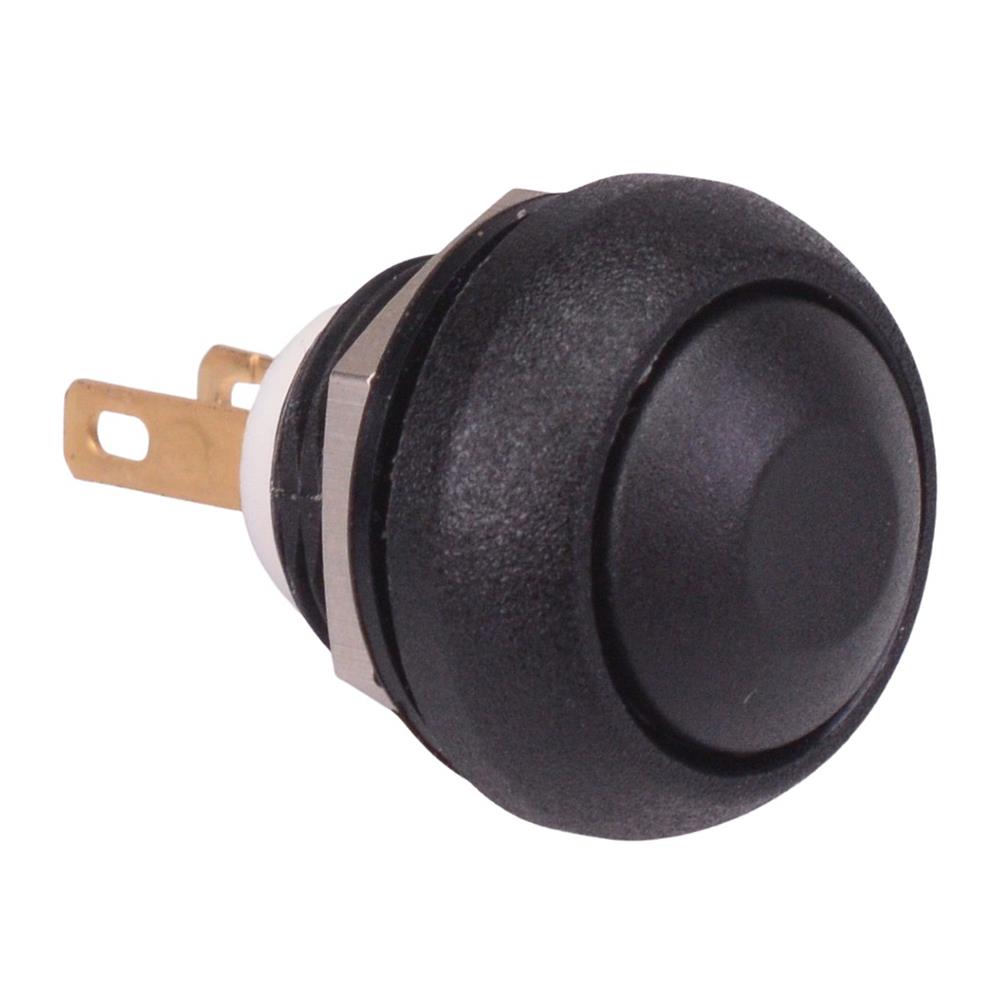

ISR3Z1AD200 APEM Black Momentary 12mm Push Button SPST IP67

The ISR3Z1AD200 is a black momentary push button switch with a 12mm bushing and compact lightweight package sealed to IP67. The switch features 2.8mm quick connect terminals and SPST contacts, suitable for a wide range of applications.

Momentary operation

SPST contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

2.8mm x 0.5mm quick connect terminals

Rating: 400mA 32VAC - 100mA 48VDC

Panel thickness: 1.5-4mm

Dimensions: 20 x 17.5mm (length x diameter)
