ISR3SAD500 Yellow Momentary 12mm Push Button Switch SPST IP67 APEM

ISR3SAD500 Yellow Momentary 12mm Push Button Switch SPST IP67 APEM

£12.32
£6.03 £12.32
Sale Sold out

Order Code: 486001

Delivery calculated at checkout.
Available Online Only

38 in stock
View full details

Product Description

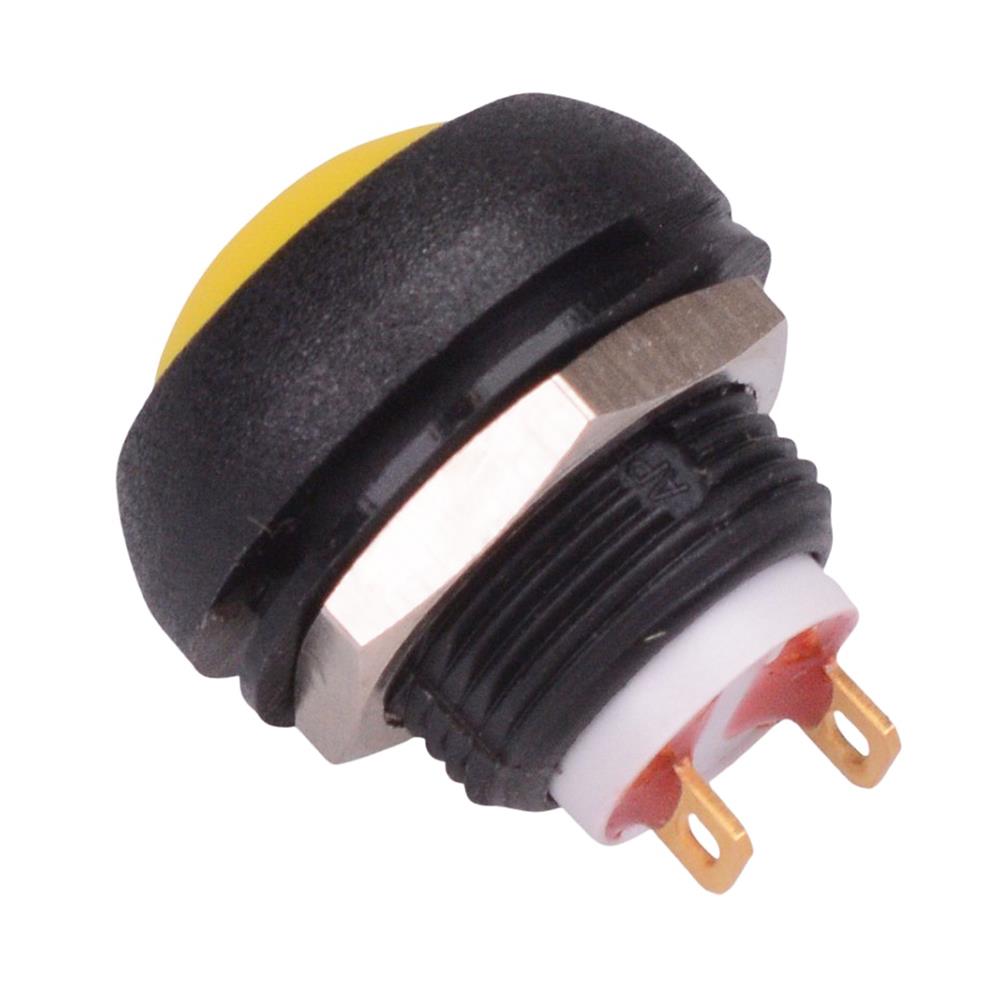

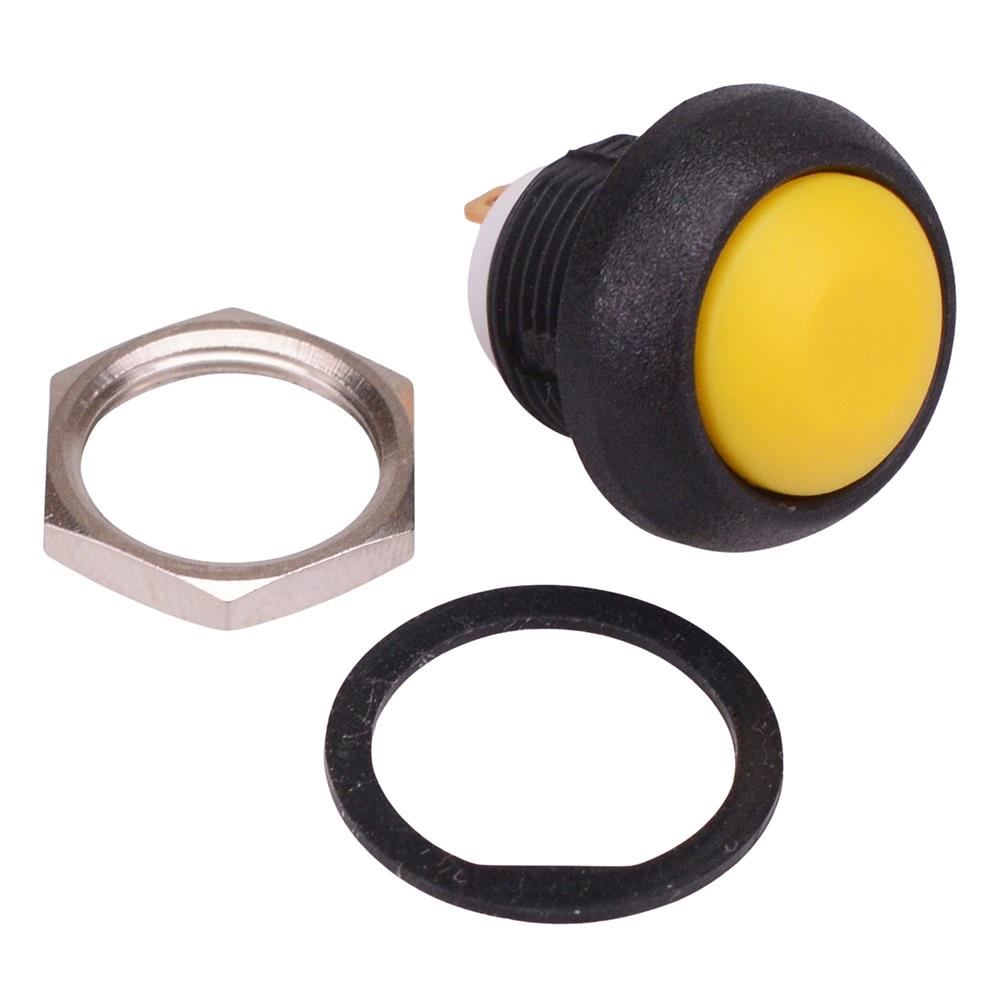

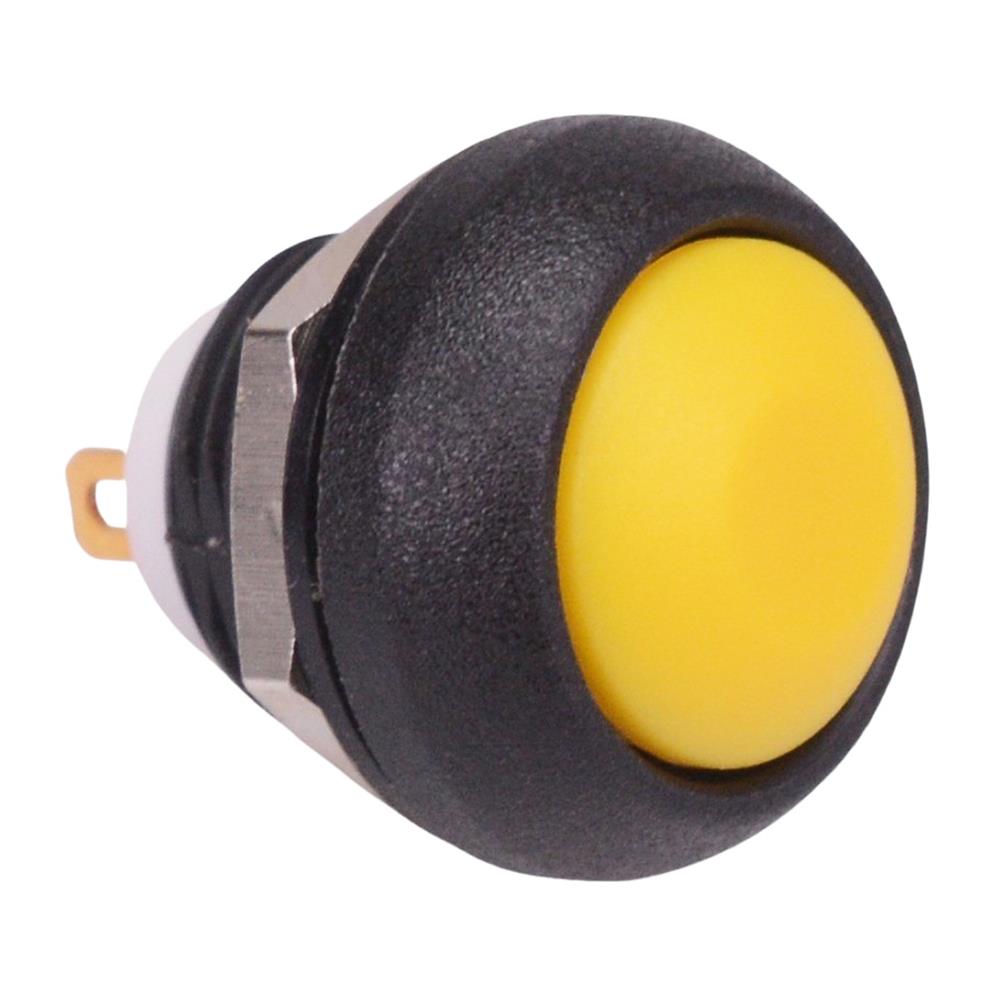

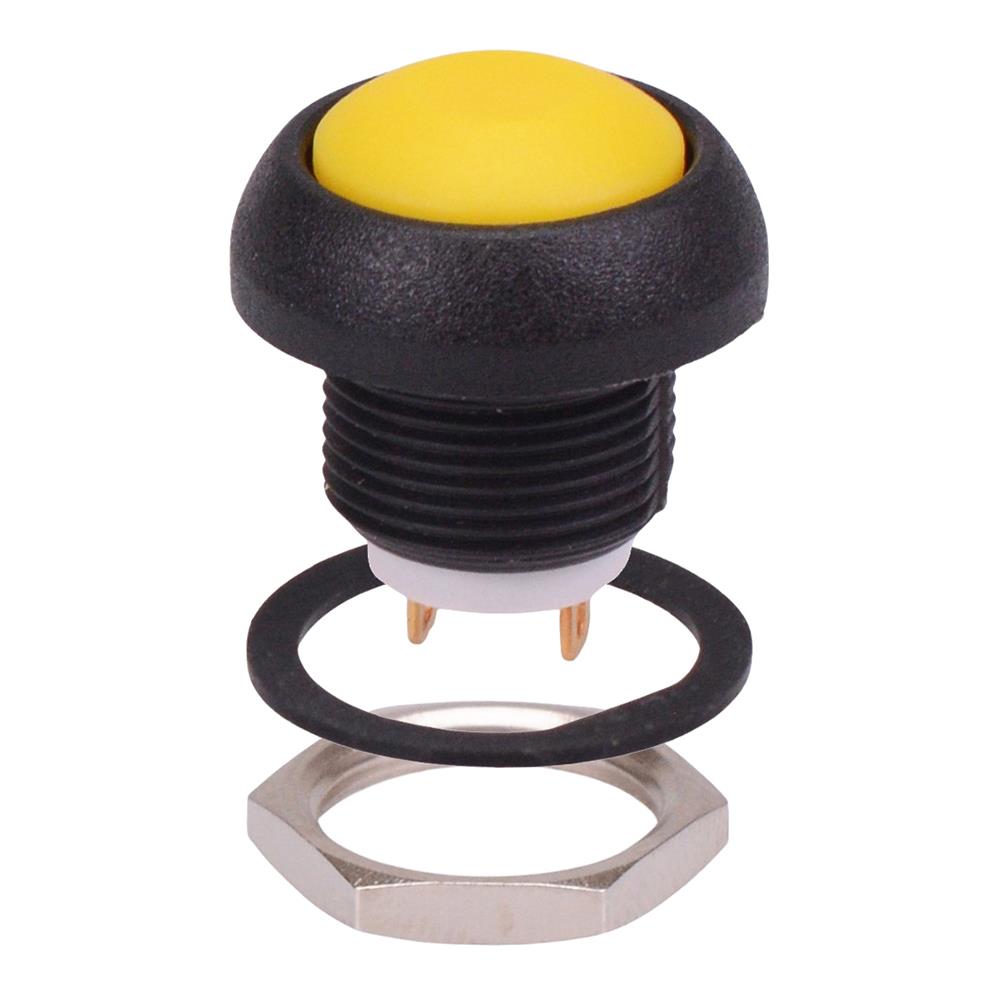

The ISR3SAD500160 is a yellow momentary push button switch with a 12mm bushing and compact lightweight package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for a wide range of applications.

  • Momentary operation
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 400mA 32VAC - 100mA 48VDC
  • Panel thickness: 1.5-4mm
  • Dimensions: 20 x 17.5mm (length x diameter)
