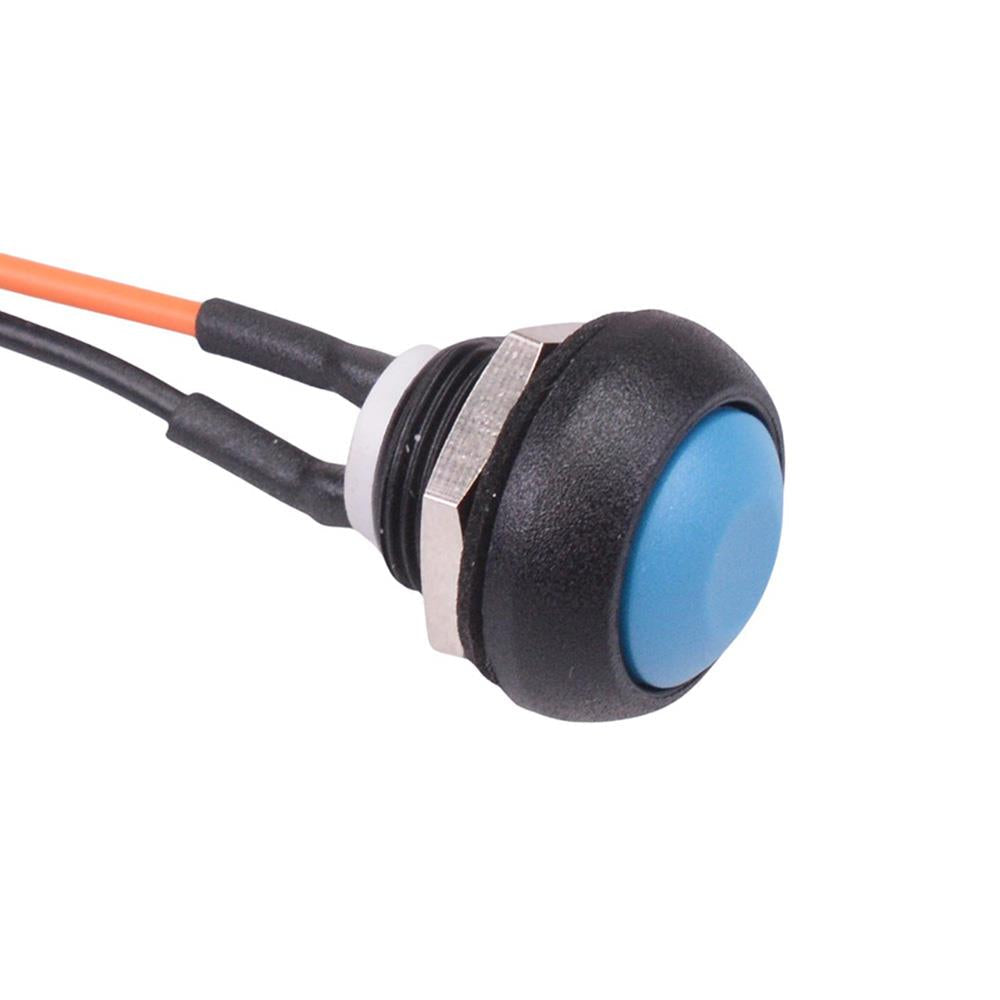

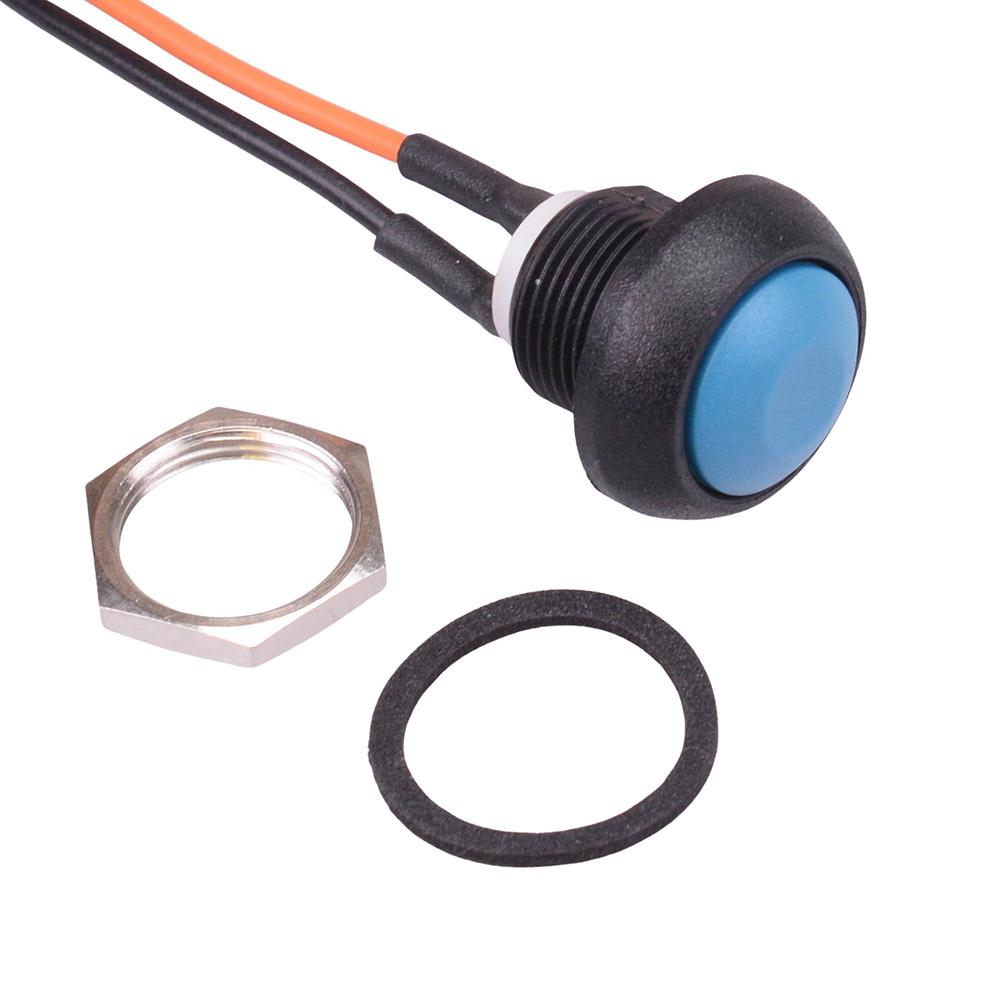

ISR3SAD100 Blue Momentary Prewired 12mm Push Button Switch SPST IP67 APEM

The ISR3SAD100 is a blue momentary push button switch with a 12mm bushing and compact lightweight package sealed to IP67. The switch features flying lead terminals and SPST contacts, suitable for a wide range of applications.

Momentary operation

SPST contacts

12mm bushing

Sealed to IP67

Panel cut-out: 13.6mm

Flying leads 1 meter

Rating: 400mA 32VAC - 100mA 48VDC

Panel thickness: 1.5-4mm

Dimensions: 20 x 17.5mm (length x diameter)
