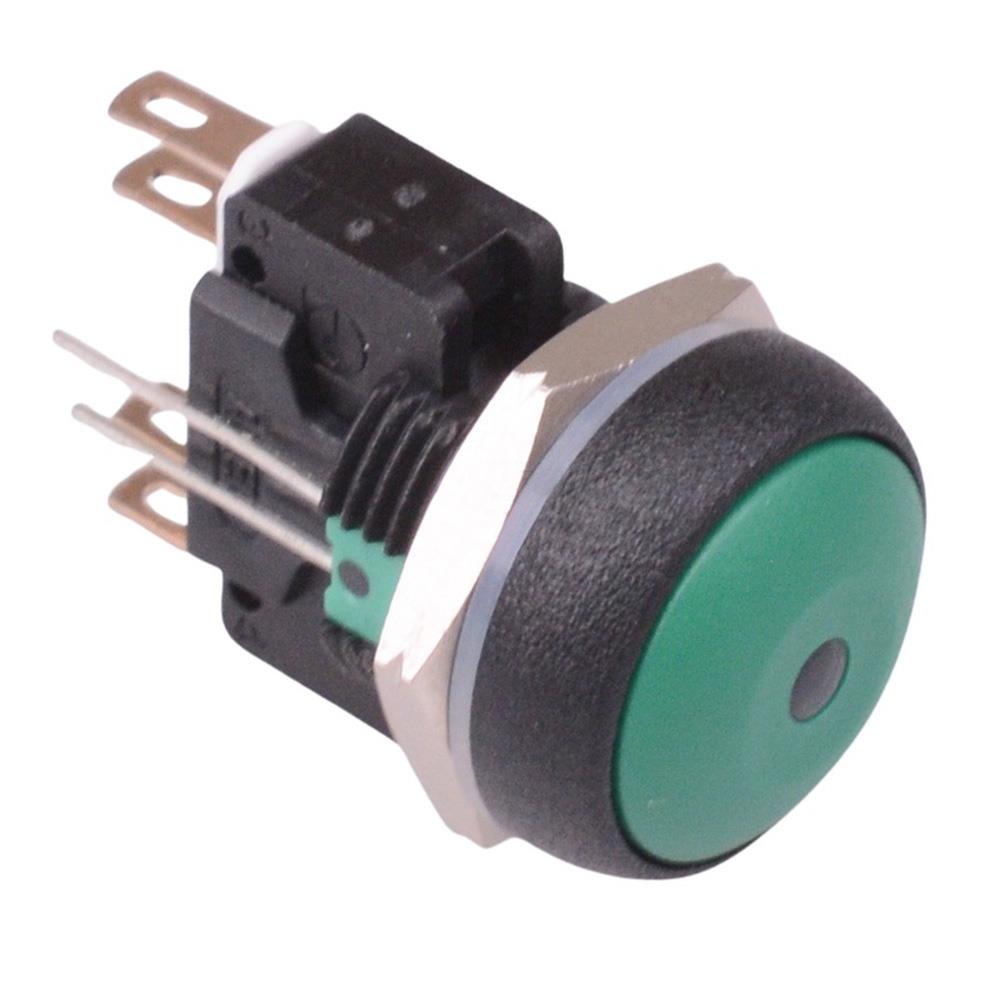

IRR8Z232L0G APEM Green LED Round 16mm Momentary NO/NC Push Button Switch DPDT 5A IP67

The IRR8Z232L0G is a round sealed momentary push button switch with a 16mm bushing and NO/NC combined contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.

Button colour: green

LED colour: green

LED forward voltage: 2.1V

LED forward current: 20mA

Panel cut-out: 16.2mm

Contacts: NO/NC combined

Terminals: quick connect / solder lug contacts

Silver contacts

Contact rating: 5A 250VAC

Protection rating: IP67

Maximum panel thickness: 3mm

Dimensions: 19.8 x 31.65mm (diameter x height)
