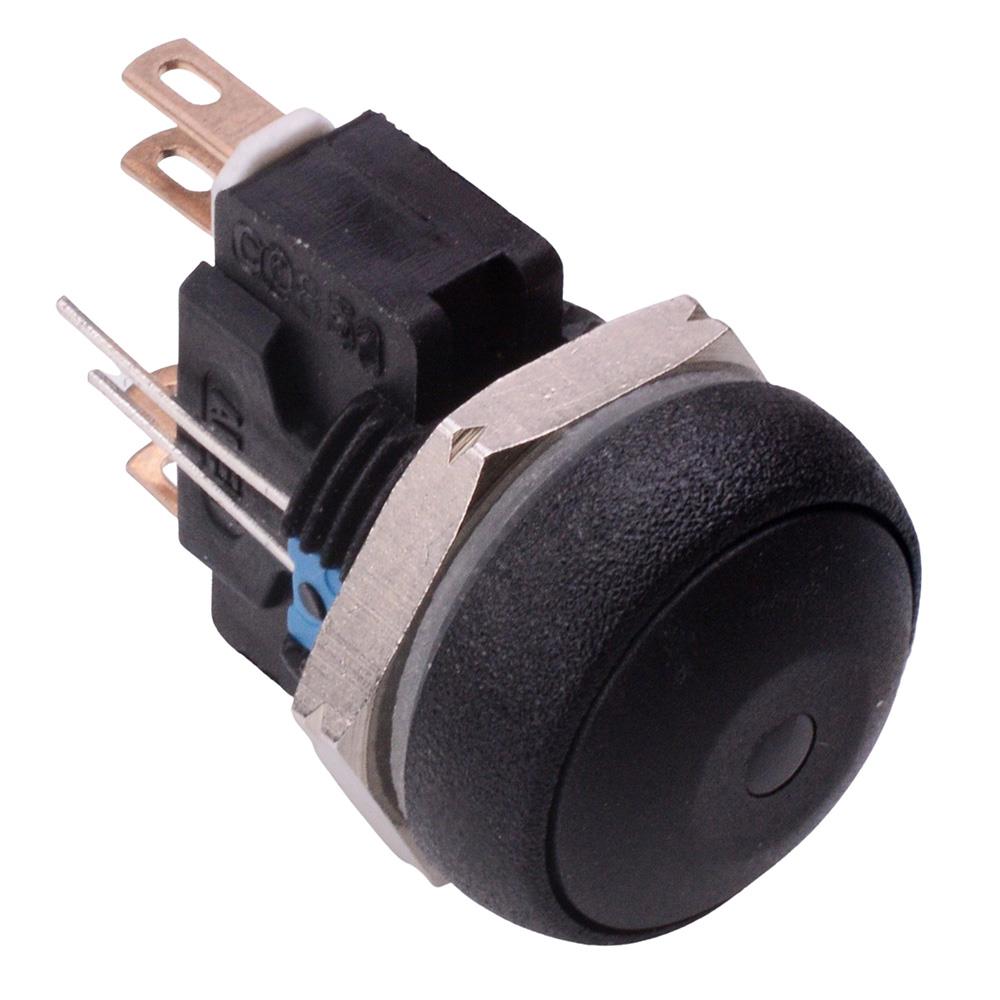

IRR8Z222L0B APEM Blue LED Black Button Round 16mm Momentary Push Button Switch DPDT 5A IP67

The IRR8Z222L0B is a round sealed momentary push button switch with a 16mm bushing and DPDT contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.

Button colour: black

LED colour: blue

LED forward voltage: 3.2V

LED forward current: 20mA

Panel cut-out: 16.2mm

Contacts: DPDT

Terminals:quick connect / solder lug contacts

Contact rating: 5A 250VAC

Protection rating: IP67

Maximum panel thickness: 3mm

Dimensions: 19.8 x 31.65mm (diameter x height)
