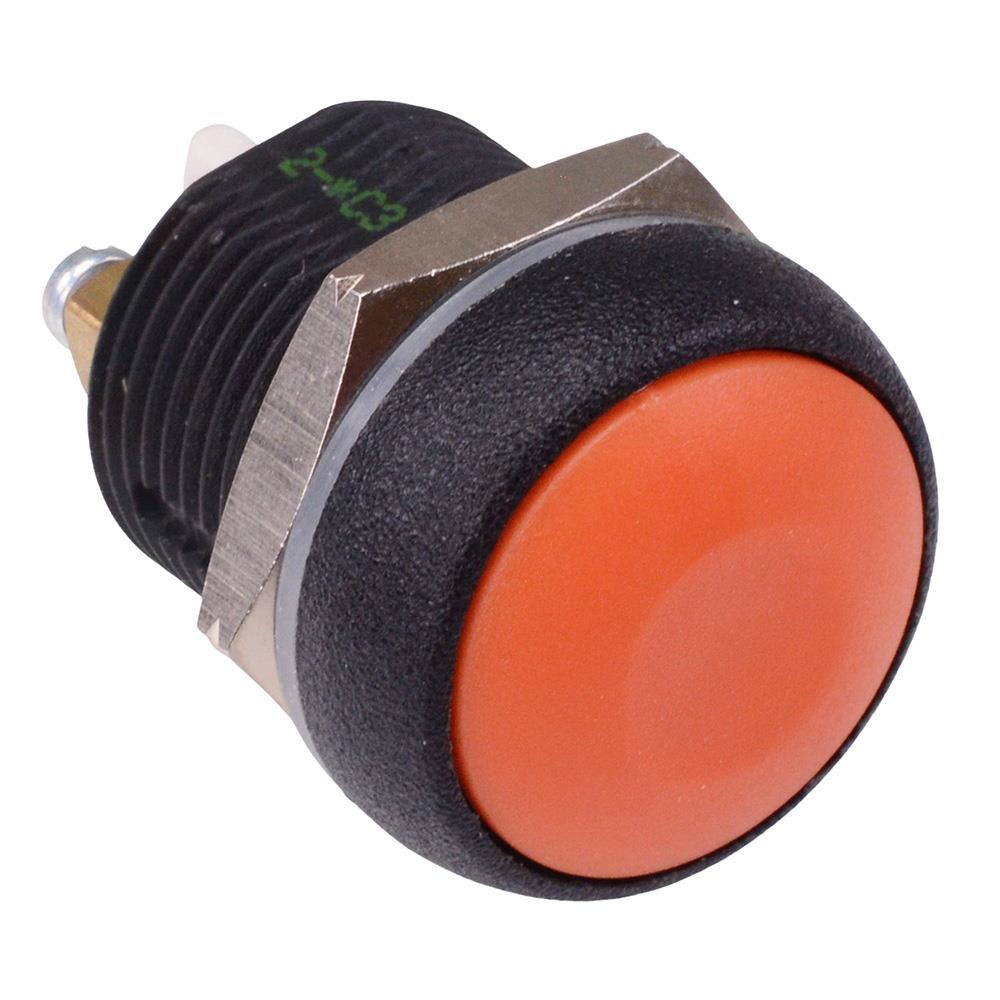

IRR3V292 APEM Orange Round 16mm Momentary NO Push Button Switch IP67

The IRR3V292 is a round sealed momentary push button switch with a 16mm bushing and normally open SPST contacts. The switch features IP67 protection rating and screw terminals. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

Button colour: orange

Panel cut-out: 16.2mm

Contacts: momentary normally open

Terminals:screw

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 30.5mm (diameter x height)
