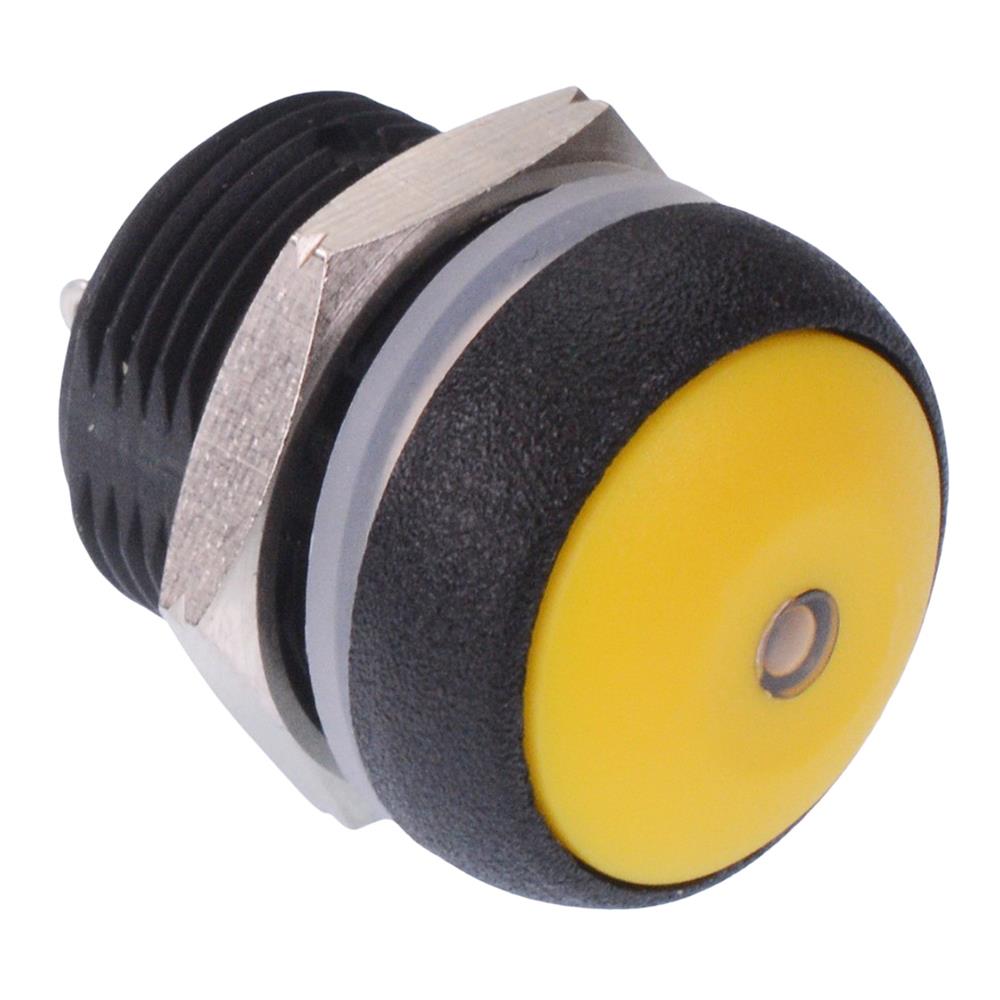

IRR3S452L0Y APEM Yellow LED Yellow Button Round 16mm Momentary Push Button Switch IP67

The IRR3S452L0Y is a round sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features LED illumination and solder lug contacts. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

Button colour: yellow

LED colour: yellow

LED forward voltage: 2.1V

LED forward current: 20mA

Panel cut-out: 16.2mm

Contacts: momentary NO

Terminals: solder lug contacts

Contact rating: 200mA 48VDC

Protection rating: IP67

Maximum panel thickness: 8mm

Dimensions: 19.8 x 26.3mm (diameter x height)
