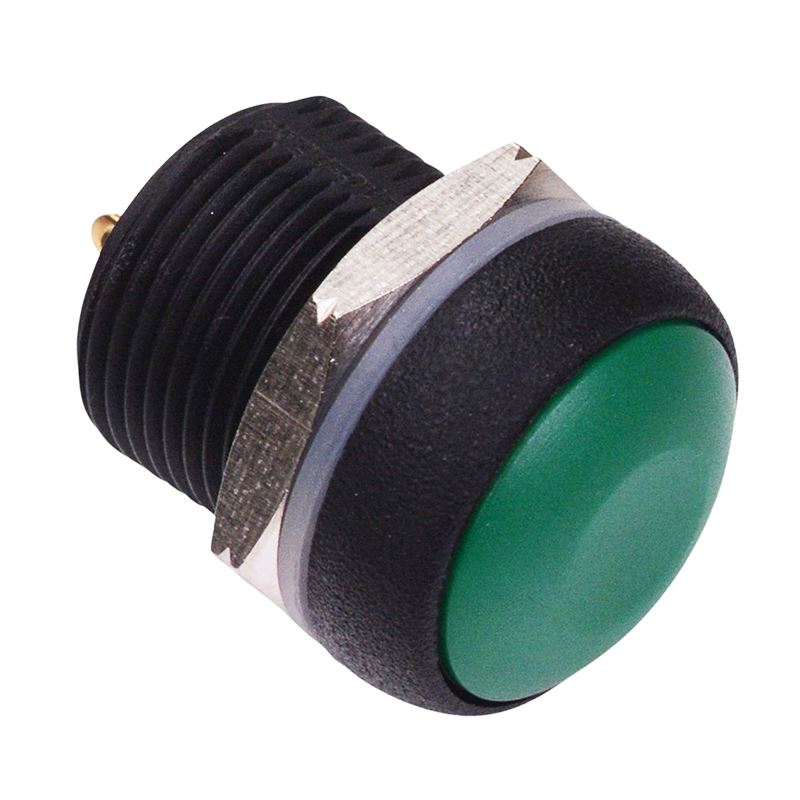

IRR3S432 Green Momentary 16mm Push Button Switch SPST IP67 APEM

IRR3S432 Green Momentary 16mm Push Button Switch SPST IP67 APEM

£23.62
£14.47 £23.62
Sale Sold out

Order Code: 486011

Delivery calculated at checkout.
Available Online Only

4 in stock
View full details

Product Description

The IRR3S432 is a green momentary push button switch with a 16mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for a wide range of applications.

  • Momentary operation
  • Tactile feedback
  • SPST contacts
  • 16mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 200mA 48VDC, 5A 28VDC
  • Panel thickness: 8mm max
  • Dimensions: 25.4 x 19.8mm (length x diameter)
